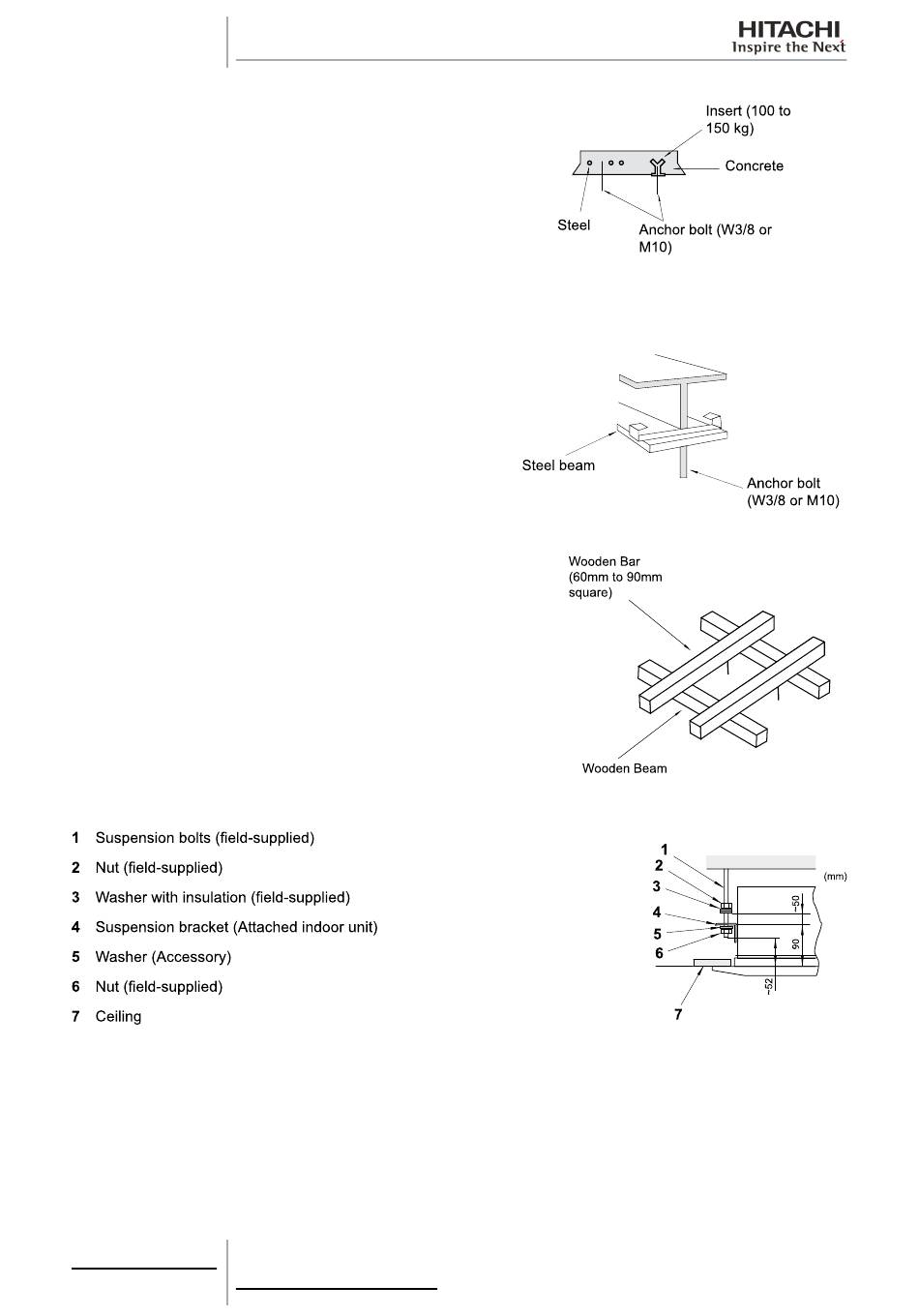

2 Unit installation
Concrete beams
Steel beams
Wooden beams
Thread on the nuts and fit the washers for all the bolts, as shown in the figure.
Fit two suspension brackets onto the nut and washer of each bolt, starting on one side.
Check that the nuts and washers are correctly secured with the suspension bracket retainers and fit the brackets onto their
nuts and washers on the other side.
Fit the washers with the insulation facing downwards, as shown in the figure. Bear in mind the position of the side for pipe
connection before lifting the indoor unit.
26
SMGB0063 rev. 1 - 10/2010
