10 Servicing
Nº
1

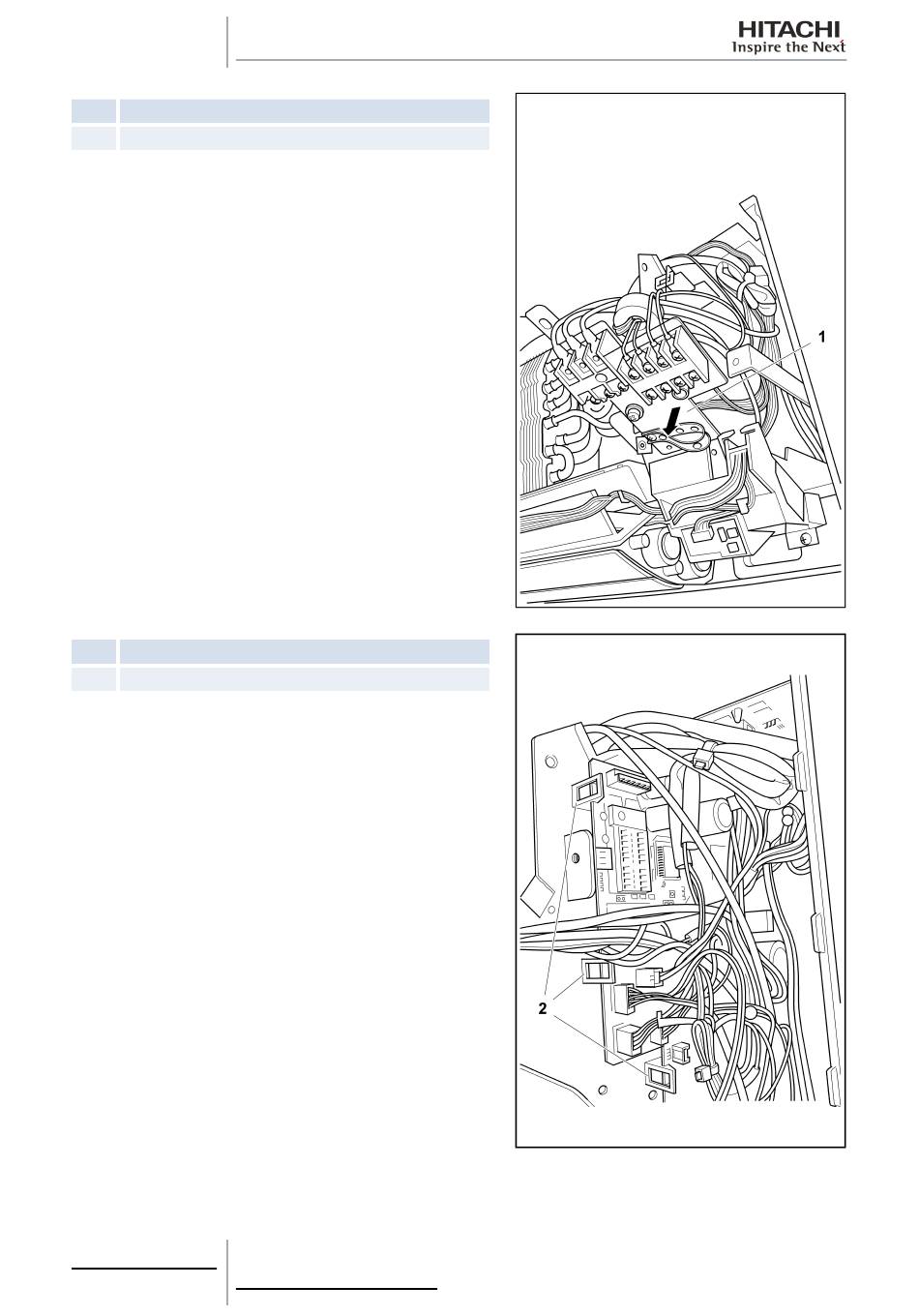

Terminal board fixture plate
Remove a screw from the terminal board fixture plate and remove
it.
Nº
1
Three front spacers
Remove the thermistor from the main PCB for outlet and inlet liquid,
external transmission, remote control, power supply, external I/O,
automatic louver, screen PCB, fan motor, receiver PCB and
expansion valve connector.
Detach the three front spacers from the main PCB and remove the
PCB from the electrical box.
