2 Unit installation

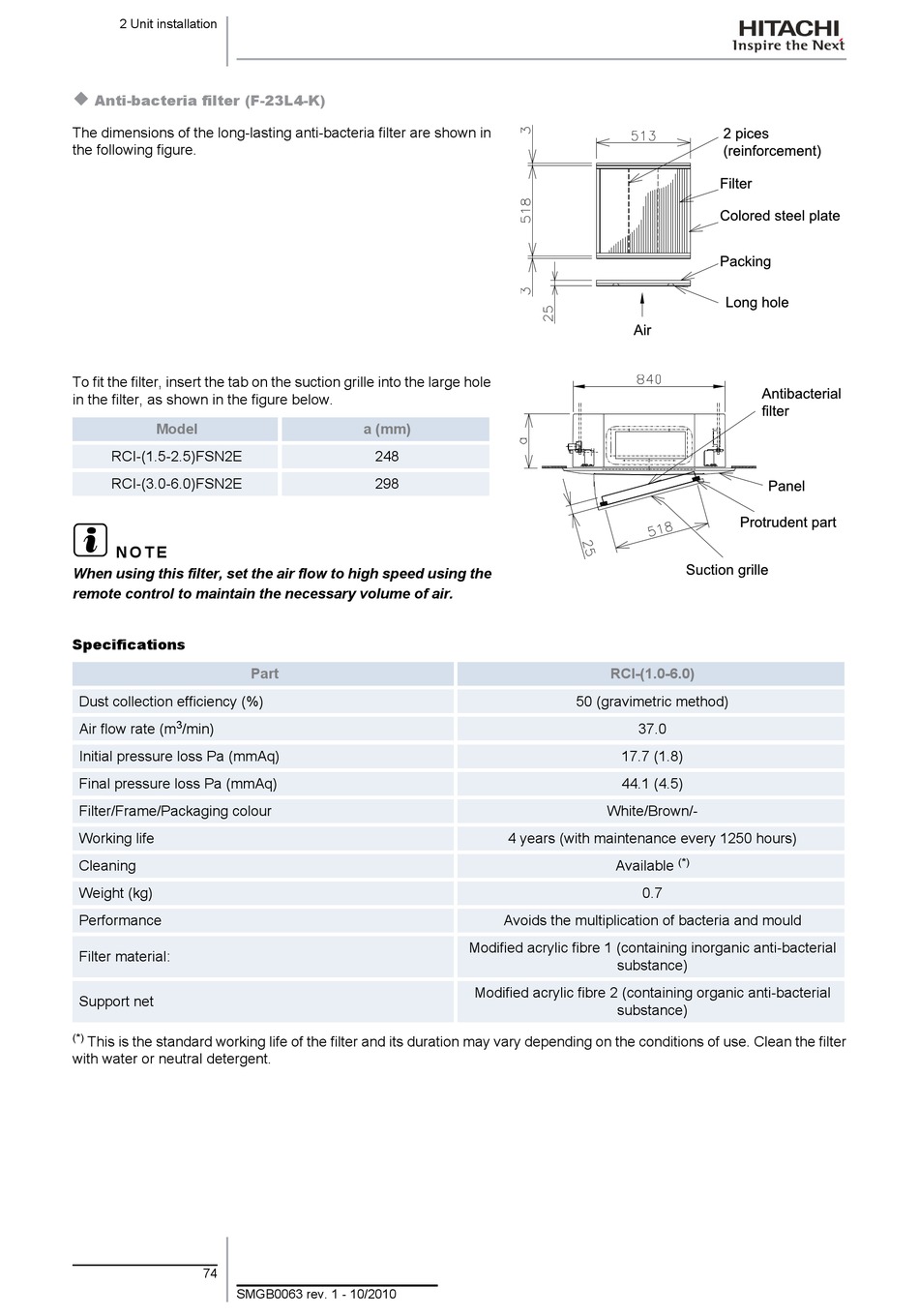

¿ Anti-bacteria filter (F-23L4-K)
The dimensions of the long-lasting anti-bacteria filter are shown in
the following figure.
To fit the filter, insert the tab on the suction grille into the large hole
in the filter, as shown in the figure below.
Model
RCI-(1.5-2.5)FSN2E
RCI-(3.0-6.0)FSN2E
N O T E
When using this filter, set the air flow to high speed using the
remote control to maintain the necessary volume of air.
Specifications
Dust collection efficiency (%)
3
Air flow rate (m /min)
Initial pressure loss Pa (mmAq)
Final pressure loss Pa (mmAq)
Filter/Frame/Packaging colour
Working life
Cleaning
Weight (kg)
Performance
Filter material:
Support net
(*)
This is the standard working life of the filter and its duration may vary depending on the conditions of use. Clean the filter
with water or neutral detergent.
74
SMGB0063 rev. 1 - 10/2010
a (mm)
248
298
Part RCI-(1.0-6.0)
50 (gravimetric method)
37.0
17.7 (1.8)
44.1 (4.5)
White/Brown/-
4 years (with maintenance every 1250 hours)
Available
Avoids the multiplication of bacteria and mould
Modified acrylic fibre 1 (containing inorganic anti-bacterial
substance)
Modified acrylic fibre 2 (containing organic anti-bacterial
substance)
(*)
0.7
