10 Servicing

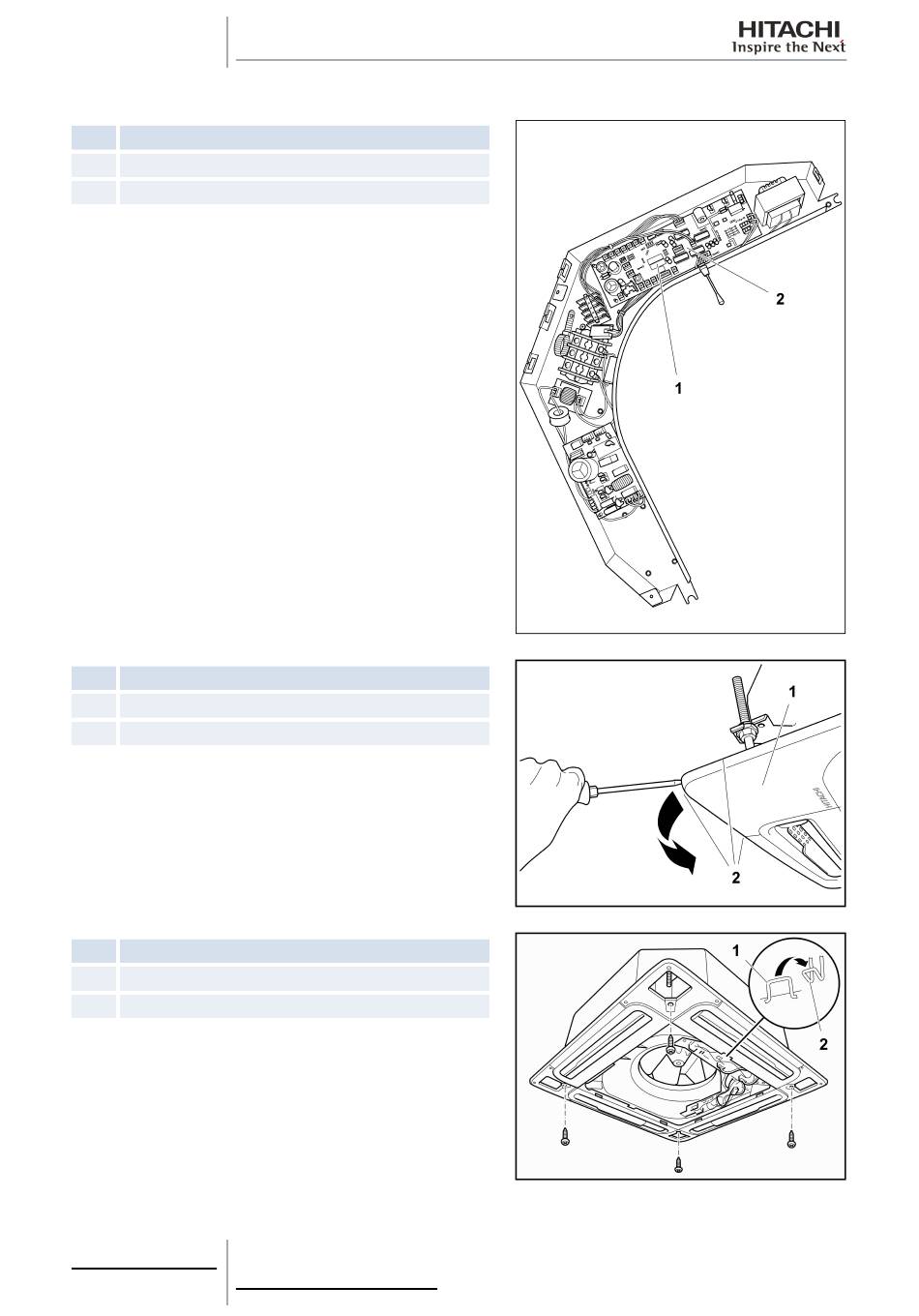

10.1.4 Removal of the optional air panel

Nº
1 Main PCB
2 Connector CN17 for the louver motor
Remove the electrical box cover
cover, see on page 269 and separate connector CN17 from the
louver motor in the main indoor PCB.
Remove the air inlet grille from the optional air panel.
Remove the four panels from the corners as shown in the figure.
Insert a screwdriver or a coin into the three grooves in the corner
and release the attachment from each corner.
Remove the four screws from the optional air panel and secure to
the drain pan hinge as shown in the figure. Then remove the
optional air panel from the unit.
Nº
1 Panel corner
2 3 grooves
Nº
1 Hinge
2 Hook
270
SMGB0063 rev. 1 - 10/2010
