2 Unit installation

2.6 RPI - Ducted indoor unit (8-10)FSN2E

2.6.1 Accessories supplied with the unit

Check that the following accessories are supplied with the unit.
N O T E
Please contact your HITACHI distributor if any of the accessories has not been supplied with the unit.
Accessory
Piping adapter
(Ø19.05 x Ø25.4)
(For 8 HP only)
Piping adapter
(Ø22.2 x Ø25.4)
(For 10 HP only)
Piping adapter
(Ø9.53 x Ø12.7)
(For 10 HP only)

2.6.2 Unit installation

Initial checks

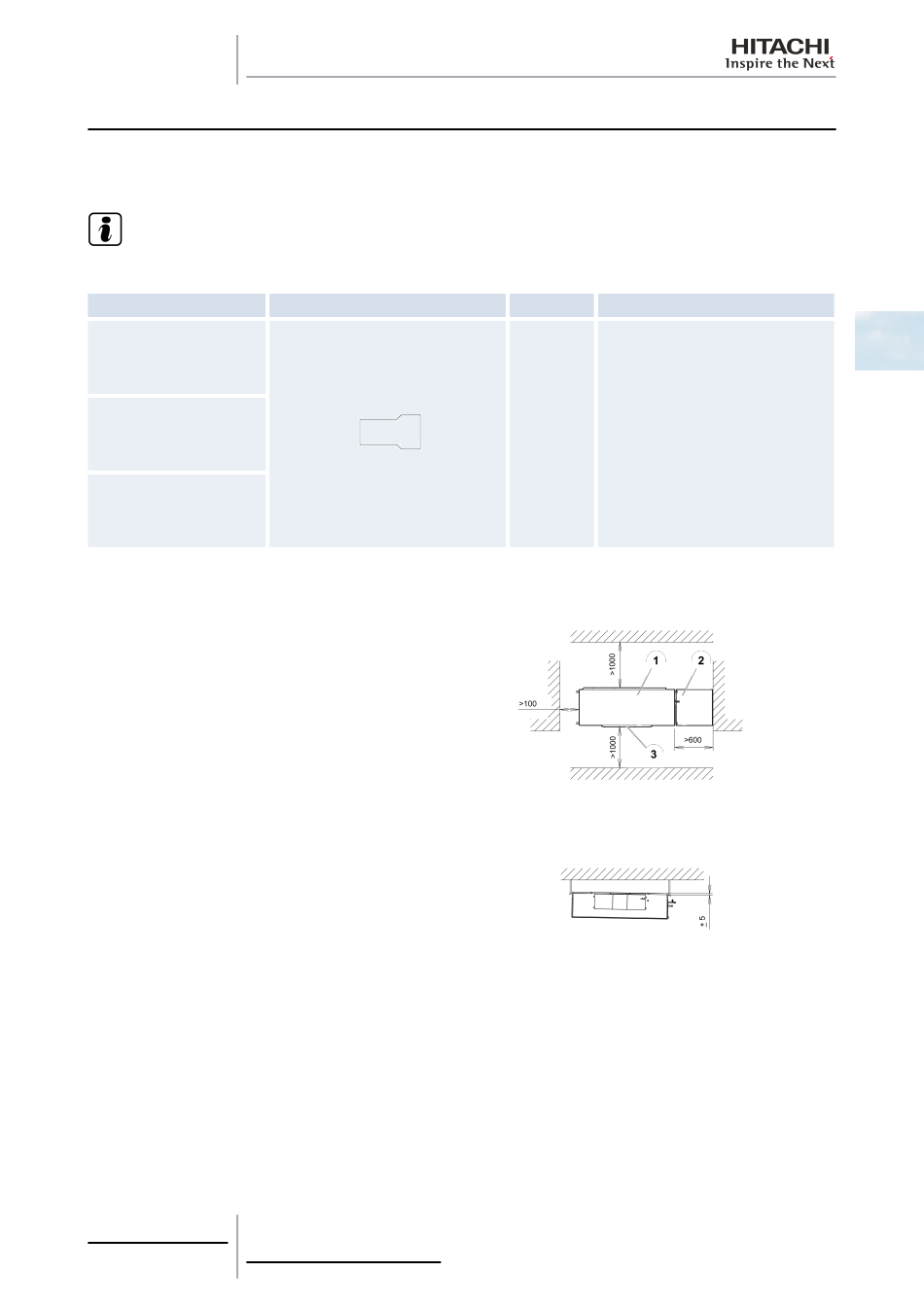

RPI - Ducted indoor unit (8.0/10.0)FSN2E
1. Rear.
2. Unit inspection and maintenance access.
3. Front side.
Check that there is enough space around the unit. Consult the
corresponding chapter of the Technical Catalogue for information
on the unit measurements.
Before starting installation, plan the direction of the pipes and wiring
required. Also bear in mind that there must be enough space
around the unit for installation and maintenance.
Check that the ceiling surface where the unit is to be installed is
completely horizontal.
Check that the drain hose can be installed maintaining the
necessary down-slope.
Installation
Install the M10 (3/8) suspension bolts depending on the type of surface:
47
SMGB0063 rev. 1 - 10/2010
Appearance Quantity Purpose
Reducer boss for refrigerant piping
1
on the indoor unit
2
