4.3 Settings screen

The settings of GLT400 can be viewed and changed.
The items that you can set differ between STAND-ALONE mode and REMOTE mode.
When the GLT400 is capturing, you can only view the settings.
When characters are entered in the input field, by confirming with the Enter key, the entered settings are
sent to the GLT400.

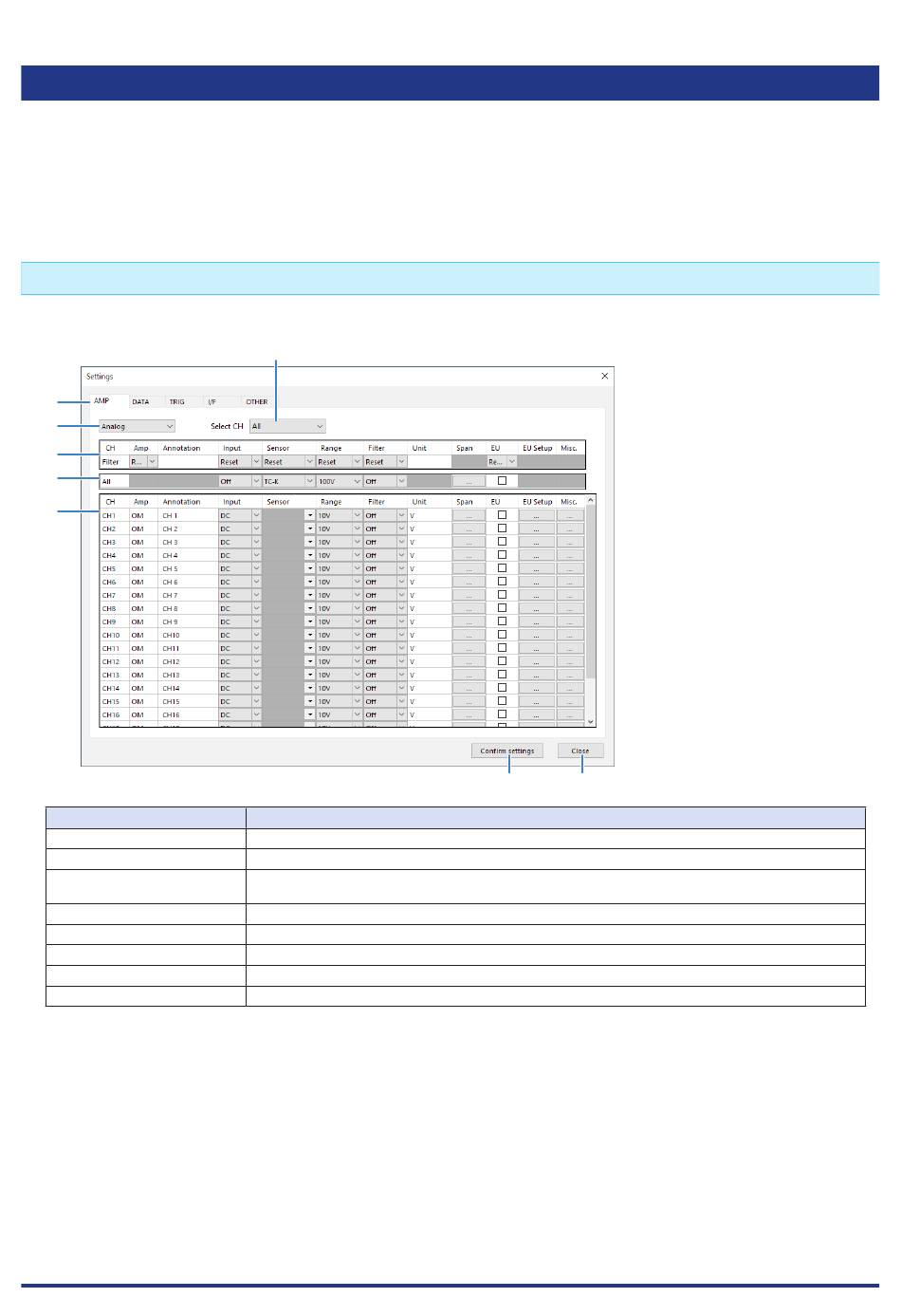

(1) Common settings
Set the settings such as analog input and logic/pulse input for the GLT400.
(1)
(2)
(4)
(5)
(6)
Item
(1) Various tabs
(2) Switch amplifier
(3) Change analog display CH
(4) CH filter
(5) All CH change
(6) Each CH setting
(7) Confirm settings
(8) Close
(3)
Moves to the corresponding setting screen.
Switch between analog display and logic/pulse display.
Change the display of the analog CH included in the GLT400.
You can select whether to display all channels or every 10 channels.
Only channels that match the conditions for each channel setting item can be displayed.
All the channels that are displayed for each channel setting item can be change at once.
You can change the settings of the analog channels included in the GLT400 one by one.
You can check whether capturing can be executed.
The Settings screen is closed and then returns to the GLT400 SETTING APP (Connect) screen.
CHAPTER 4 Settings and Measurement
(7) (8)
