CHAPTER 3 Operation and Function

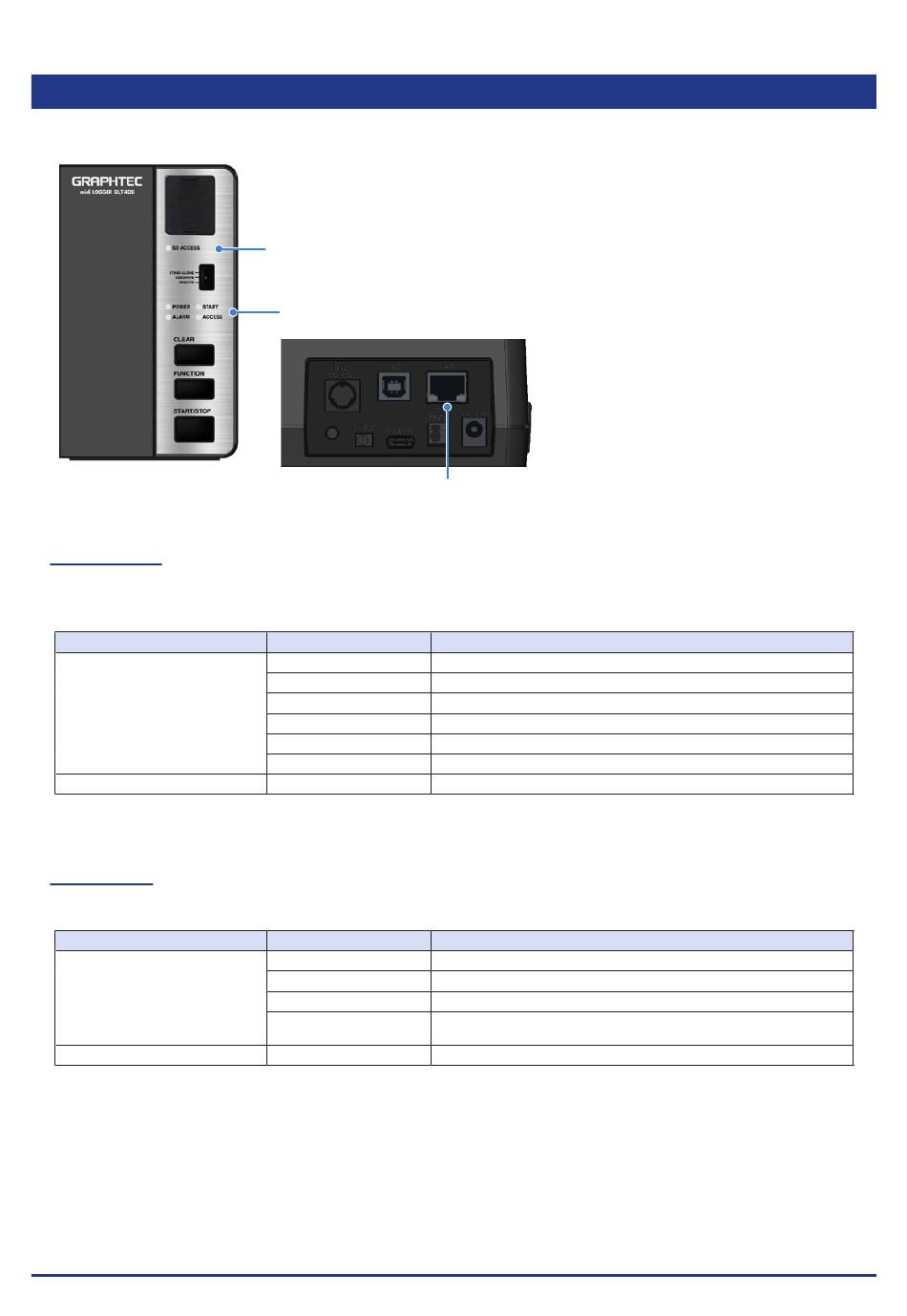

3.3 Operation of LED

This section describes the operation of the LED.
(1) POWER
This LED is lit in three colors: green, orange, and red. It mainly indicates the power supply status and error
occurrence status.
Mode Switch status
STAND-ALONE / REMOTE
USB DRIVE
(2) START
This LED is lit in two colors: green and orange. It mainly indicates the capturing status
Mode Switch status
STAND-ALONE / REMOTE
USB DRIVE
3-6
(5) SD ACCESS
(1) POWER
(2) START
(3) ALARM
(4) ACCESS
Lighting status
Not lit Power off status
Lit in green When started up
Flashes in green Starting up/Reading setting file
Flashes in green SD CARD can be replaced (During capturing)
Flashes in orange SD CARD replacement is in preparation
Lit in red Error occurred
Lit in orange Operating in USB DRIVE mode
Lighting status
Not lit Capturing stop (During free running)
Lit in orange Waiting for start trigger
Lit in green Capturing
Flashes in orange Capturing finished (Stop trigger is established), Waiting for repeat
capturing
Always not lit Not used
(6) LAN connector
Description
Description
