2.5 How to Remove Expansion Terminal Base

This section describes how to remove the standard terminal or the withstand high-voltage high-precision
terminal.
The screwless terminal can be removed in the same way.
When removing the standard terminal, the withstand high-voltage high-precision terminal or the screwless
terminal from the GLT400, please make sure that the GLT400 power is off.

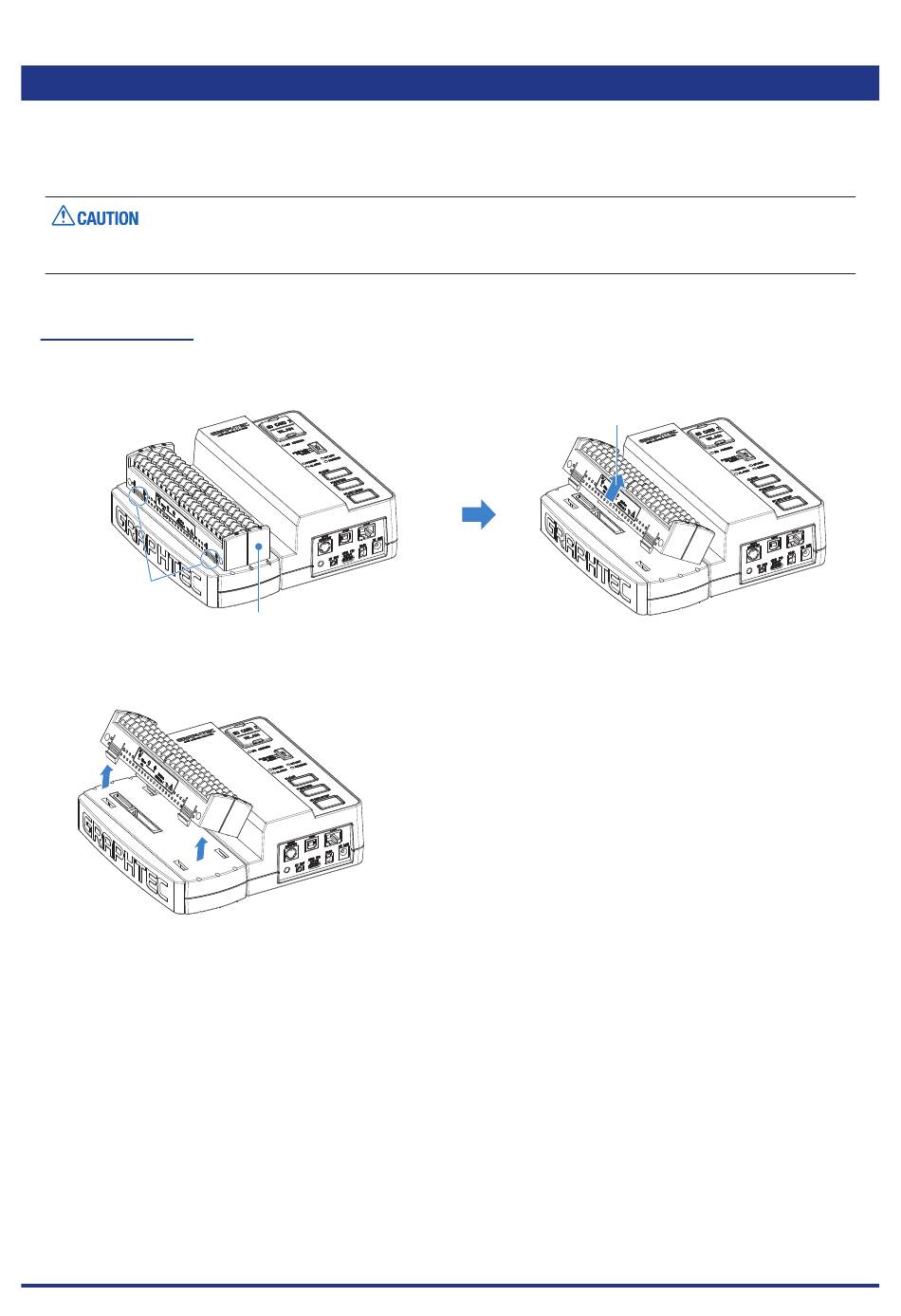

How to remove
(1) Pull out the terminal in the direction of the arrow while pushing the two locks (locations) under the
standard terminal, the screwless terminal or the withstand high-voltage high-precision terminal.
Lock
(2) Remove the terminal.
Terminal
CHAPTER 2 Checks and Preparation
Pull out
2-7
