CHAPTER 2 Checks and Preparation

2.11 Logic Alarm Cable Connection and Functions

This section describes how to connect the logic alarm cables and the functions of cable.
During wiring, confirm that the signal's supply source is turned OFF to prevent electrical shocks.
Also, position the GLT400 input cable away from any power lines and ground cables.
The input/output cable (B-513: option) enables logic/pulse input, external trigger input, and alarm signal
output.

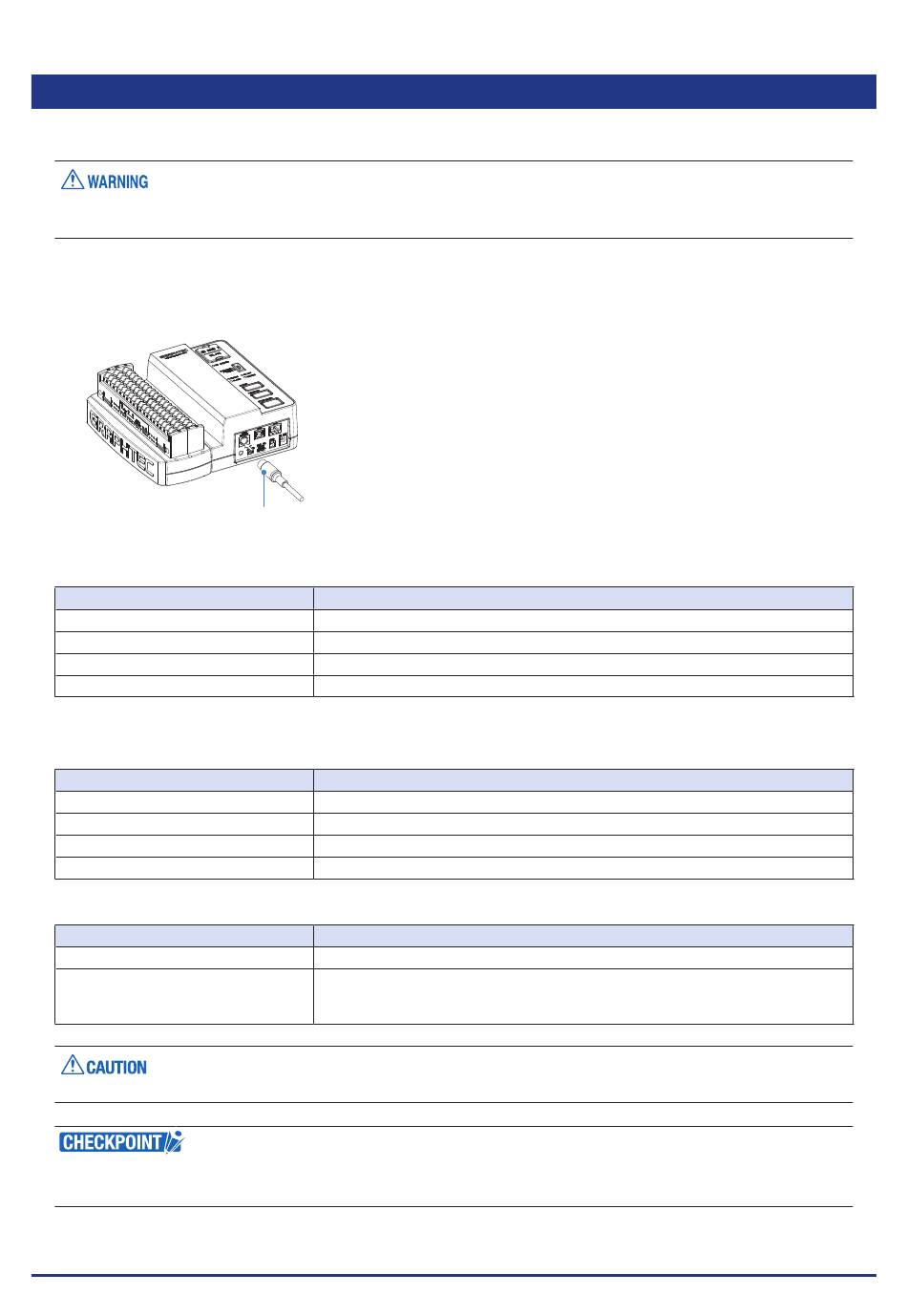

Connect the input/output cable (B-513: option) to the external input/output terminal as shown below.
Logic/Pulse Input Specifications
Item
Number of input channels
Input voltage range
Threshold level
Hysteresis
* Switch between logic and pulse input.
Trigger Input/External Sampling Input Specifications
Item
Number of input channels
Input voltage range
Threshold level
Hysteresis
Alarm Output Specifications
Item
Number of Output channels
Output format
When the power is turned OFF or ON, the GLT400 temporarily becomes the alarm state.
● Logic/pulse is not available when the operating mode is REMOTE.
● The alarm is output from only one channel when the operating mode is REMOTE.
2-24
Input/output cable
(B-513: option)
4
0 to +30 V max. (single-ended ground input)
Approx. +2.5 V
Approx. 0.5 V (+2.5 to +3 V)
1
0 to +30 V max. (single-ended ground input)
Approx. +2.5 V
Approx. 0.5 V (+2.5 to +3 V)
4
Open collector output
+5 V, Pull-up resistance 10 KΩ
* See the next page for details on alarm output
Description
Description
Description
