GRAPHTEC GLT400 User Manual page 85

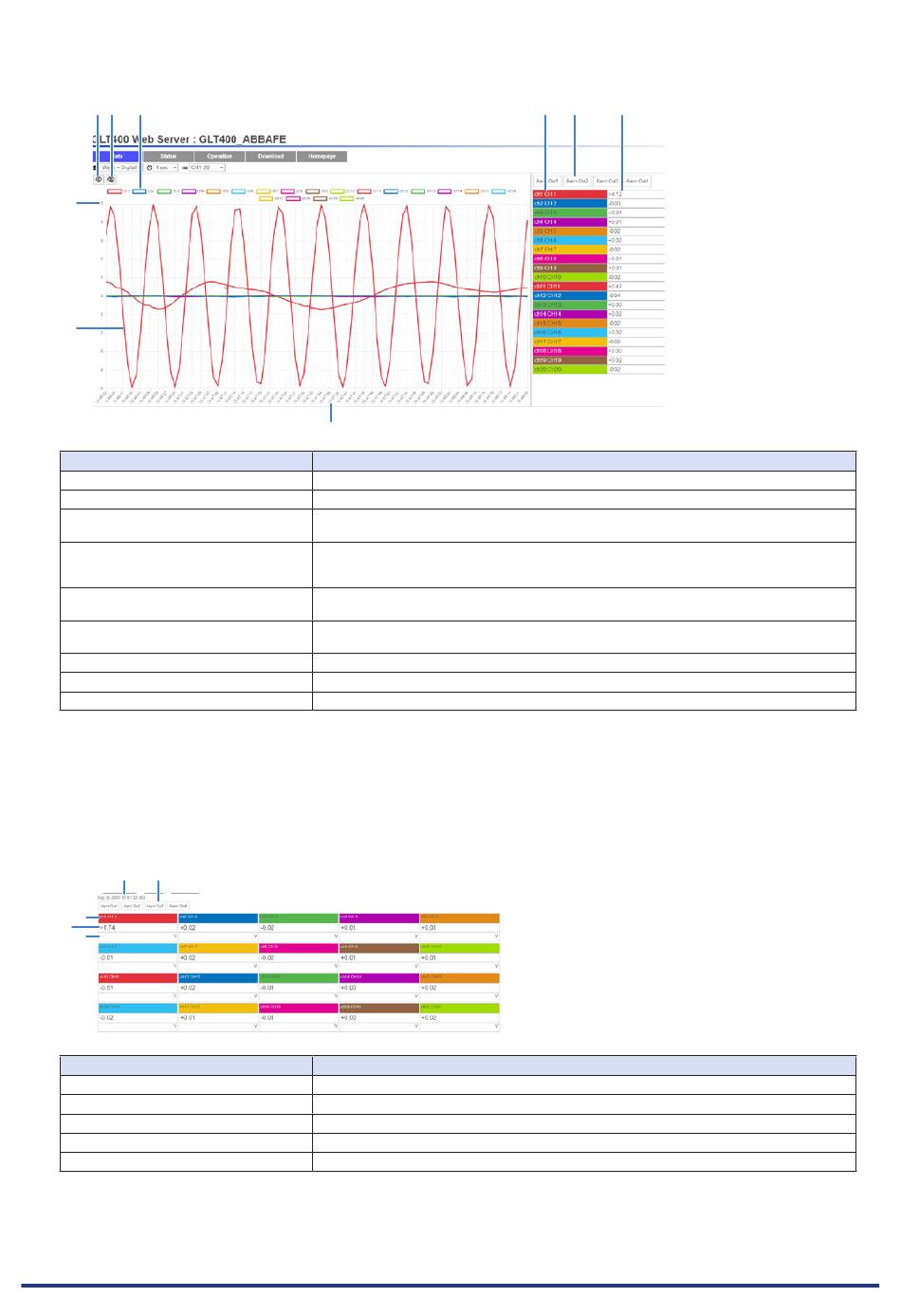

Waveform + digital display
(1) (2) (3)
(4)
(5)
Selection Item
(1) All channels display
(2) All channels hide
(3) Individual channel label
(Switching between display and hide)
(4) Level axis
(5) Waveform
(6) Time axis
(7) Channel number and annotation
(8) Alarm output
(9) Digital values and unit
Waveform display
Refer to "Waveform + Digital display"
Digital display
(1) (2)
(3)
(4)
(5)
Selection Item
(1) Time
(2) Alarm output
(3) Channel number and annotation
(4) Digital value
(5) Unit
(6)
Displays all waveforms of the channel selected in the display channel.
Hides all waveforms of the channel selected in the display channel.
Switches between waveform display and hide for each channel.
Displays the level axis of the input signal.
The level axis is automatically adjusted so that the maximum and minimum values of
each channel are displayed within the graph.
Displays the waveform of the input signal. The temperature data burnout or out-of-
range data waveforms are not displayed.
Displays the time when the signal was input. Even if the data interval is not constant
due to external sampling etc., the waveform is displayed at equal intervals.
Displays the channel number and annotation string.
Lights in red when an alarm is output.
Displays digital values and unit strings. Lights in red when the channel alarm is output.
Displays the time when the signal was input.
Lights in red when the alarm is output.
Displays the channel number and annotation string.
Displays the digital values. Lights in red when the channel alarm is output.
Displays the unit string.
CHAPTER 3 Operation and Function
(7) (8) (9)
Description
Description
3-25
