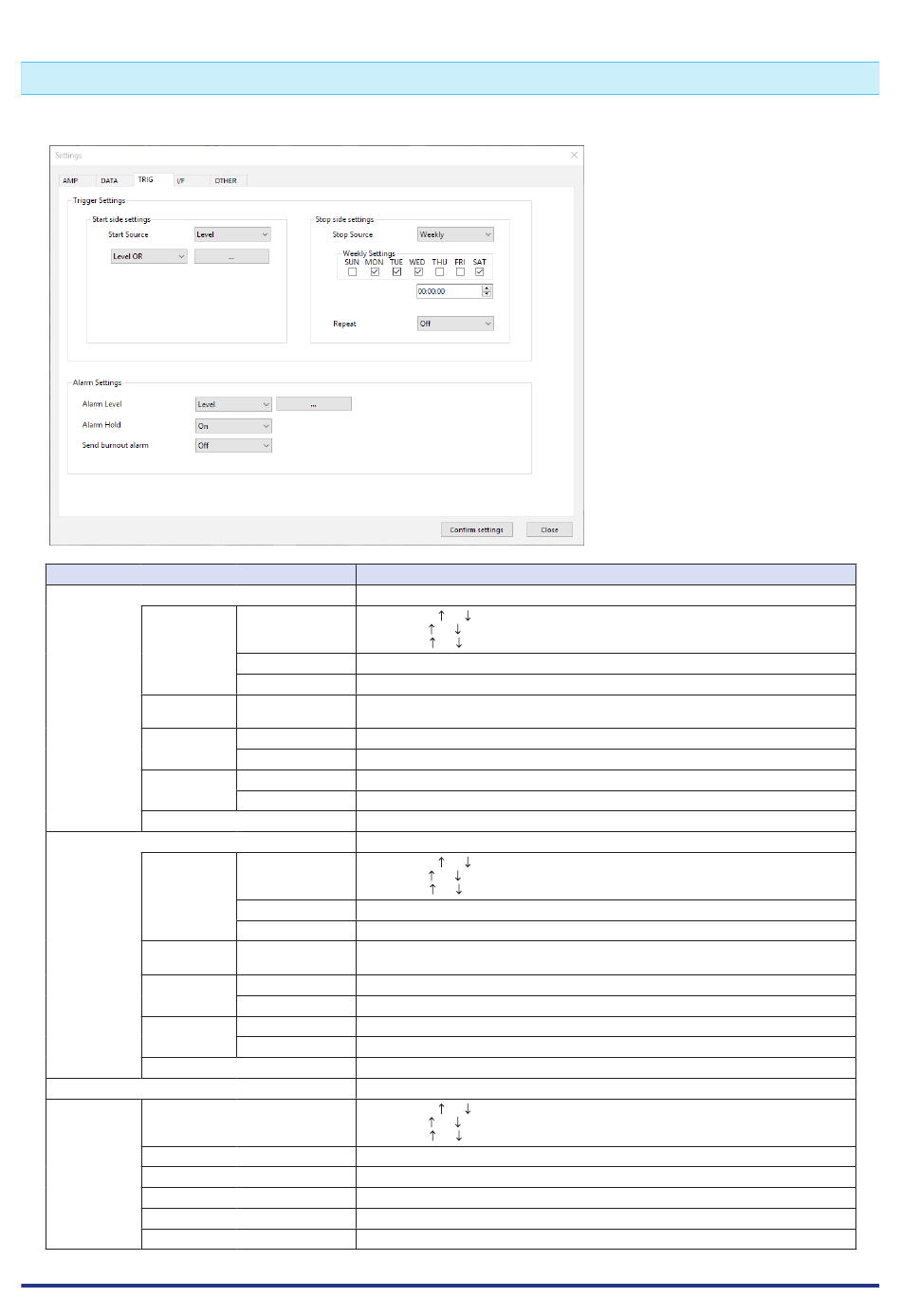

(4) TRIG settings
This is used to specify trigger conditions and alarms.
Setting
Start Side Source Setting
[Level]
[Alarm]
[Date]
[Weekly]
[Duration]
Stop Side Source Setting
[Level]
[Alarm
[Date]
[Weekly]
[Duration]
Repeat Capturing
Alarm Level Mode
Settings
Level
Output
Detection Method
Alarm Hold
Send Burnout Alarm
Off, Level, Alarm, External Input, Time, Day, Duration
Mode Analog: Off, H, L, Window In, Window Out
Logic: Off, H, L
Pulse: Off, H, L, Window In, Window Out
Combination Level OR, Level AND, Edge OR, Edge AND
Level Set numeric value
Alarm port 1, 2, 3, 4
number
Date From 2020.1.1 to 2035.12.31
Time From 0:0:0 to 23:59:59
Day of week Off or On setting for each of Sunday through Saturday
Time From 0:0:0 to 23:59:59
From 0:0:1 to 9999:59:59
Off, Level, Alarm, External Input, Time, Day, Duration
Mode Analog: Off, H, L, Window In, Window Out
Logic: Off, H, L
Pulse: Off, H, L, Window In, Window Out
Combination Level OR, Level AND, Edge OR, Edge AND
Level Set numeric value
Alarm port 1, 2, 3, 4
number
Date From 2020.1.1 to 2035.12.31
Time From 0:0:0 to 23:59:59
Day of week Off or On setting for each of Sunday through Saturday
Time From 0:0:0 to 23:59:59
From 0:0:1 to 9999:59:59
Off, On
Analog: Off, H, L, Window In, Window Out
Logic: Off, H, L
Pulse: Off, H, L, Window In, Window Out
Set numeric value
1, 2, 3, 4
Level, Edge
Held or Not held
Sent or not sent
CHAPTER 4 Settings and Measurement
Selections available
4-27
