CHAPTER 2 Checks and Preparation
When connecting with the cable

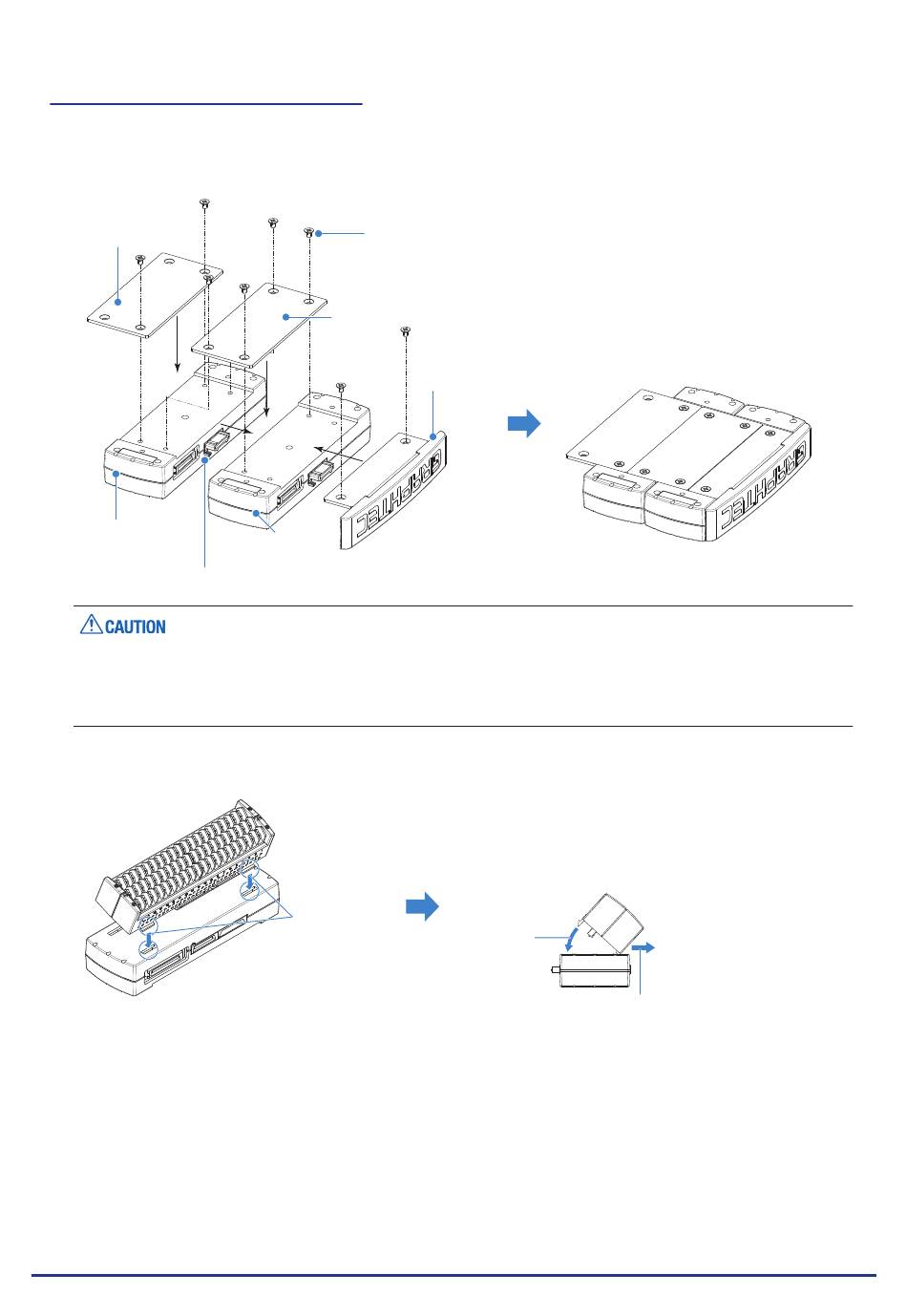

(1) Direct-connect the expansion terminal bases and attach the connecting plate and the cover with the
supplied screws.
* Recommended tightening torque: 14 kgf/cm
Connecting plate
Expansion terminal
base
● Please direct-connect the extension terminal bases carefully so as not to bend the protrusions next to
the connector.
● Please handle the GLT400 in a horizontal state until the extension terminal bases are fixed with the
connecting plate.
(2) Insert the claw at the top of the terminal into the groove on the expansion terminal base and push the
terminal in until the claw at the bottom of the terminal is completely locked.
2-14
Connecting plate
Expansion terminal
base
* Pay attention to the protrusions when direct-connecting.
Insert
M4×6 flat screw
Cover
Push
* For the withstand high-voltage high-precision terminal
(B-565), push it in while pulling it toward you.
