98
1.
The SSD is located at the front of the motherboard, on the left side as you view
it from the rear of the chassis. The SSD has brackets on each side, with four
screws attaching it to the motherboard.

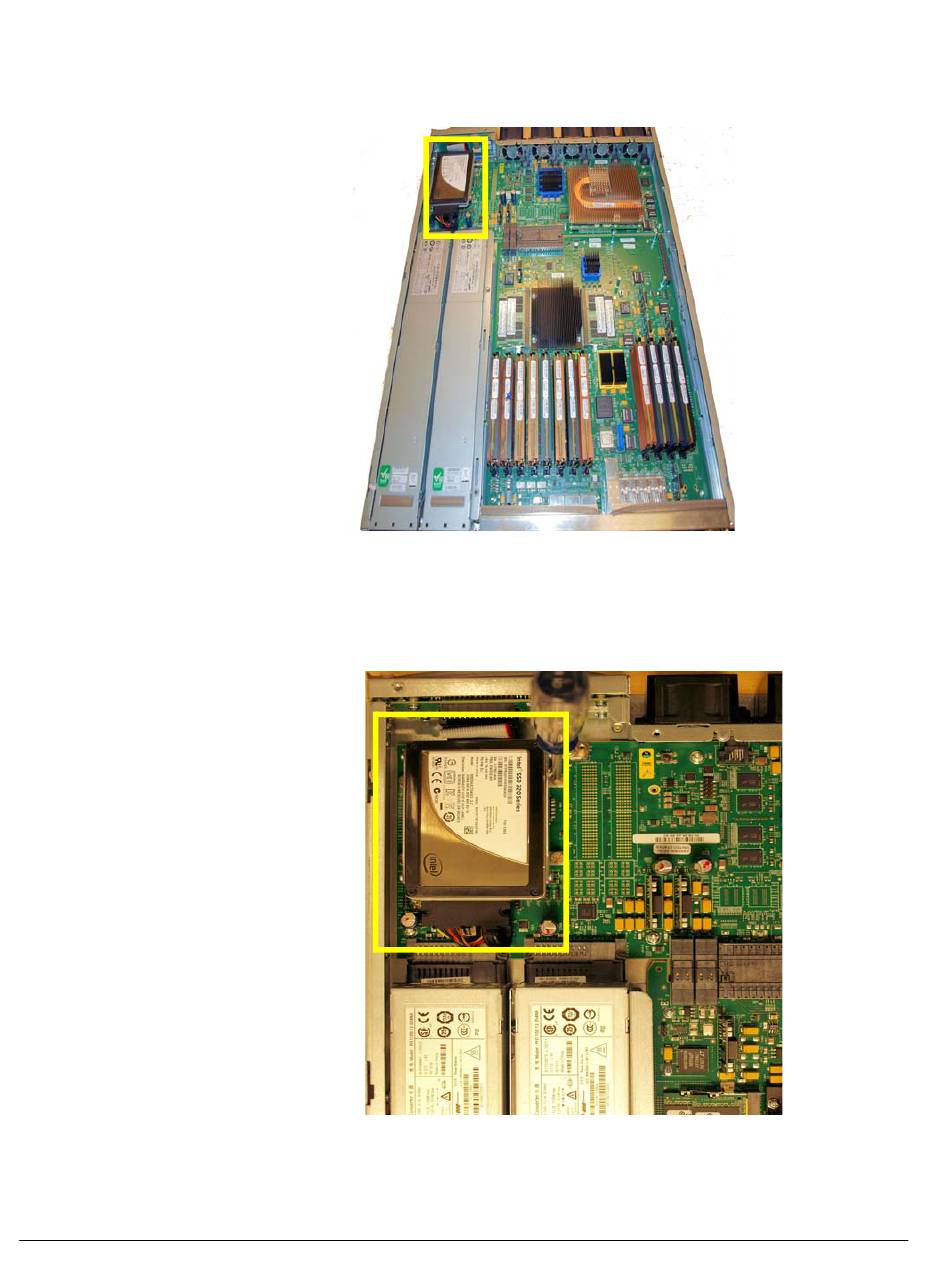

Figure 6 - 125: Location of installed SSD
Figure 6 - 126: Close-up of installed SSD
FRONT
REAR
FRONT
REAR
Acme Packet 4600 Hardware Installation and Maintenance Guide
