Install Individual
Fans
104
2.
Using a small bladed screwdriver, unscrew the two captive screws at each upper
left and lower right corners of the individual fan you are replacing.

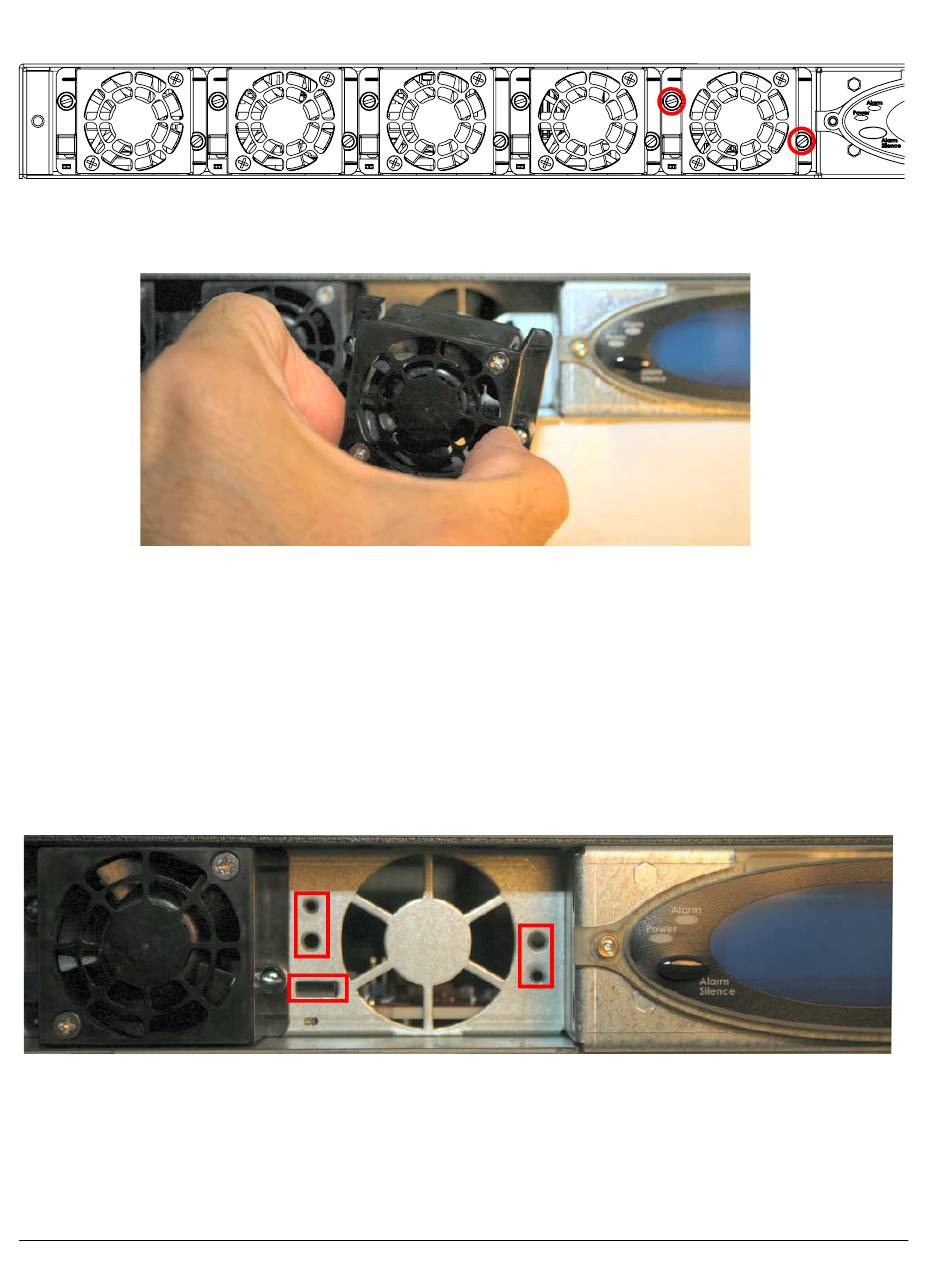

Figure 6 - 130. Loosening Fan-Fastening Screws
3.
Pull the individual fan you just unscrewed directly toward you, out of the
chassis. Move the fan to an ESD-safe location.
Figure 6 - 131. Removing the Fan
To obtain a replacement fan, contact customer support.
Replacing the fan is the reverse process as removing it.
To install a fan:
Note: The power connector should be on the lower side of the module when inserted
into the Acme Packet 4600 chassis.
1.
Carefully align the pins on the back of the fan with the holes in the chassis
midplane and install the fan into the slot.
Figure 6 - 132. Fan Slot Pin Holes
Acme Packet 4600 Hardware Installation and Maintenance Guide
