Acme Packet 4600 Hardware Installation and Maintenance Guide
3.
Hold the NIU by its sides with the front panel bezel facing you.
4.
Note the two flared guide rails that the NIU rides as it is inserted into the Acme
Packet 4600. The guide rails lead the NIU to engage with the bus connector
squarely.

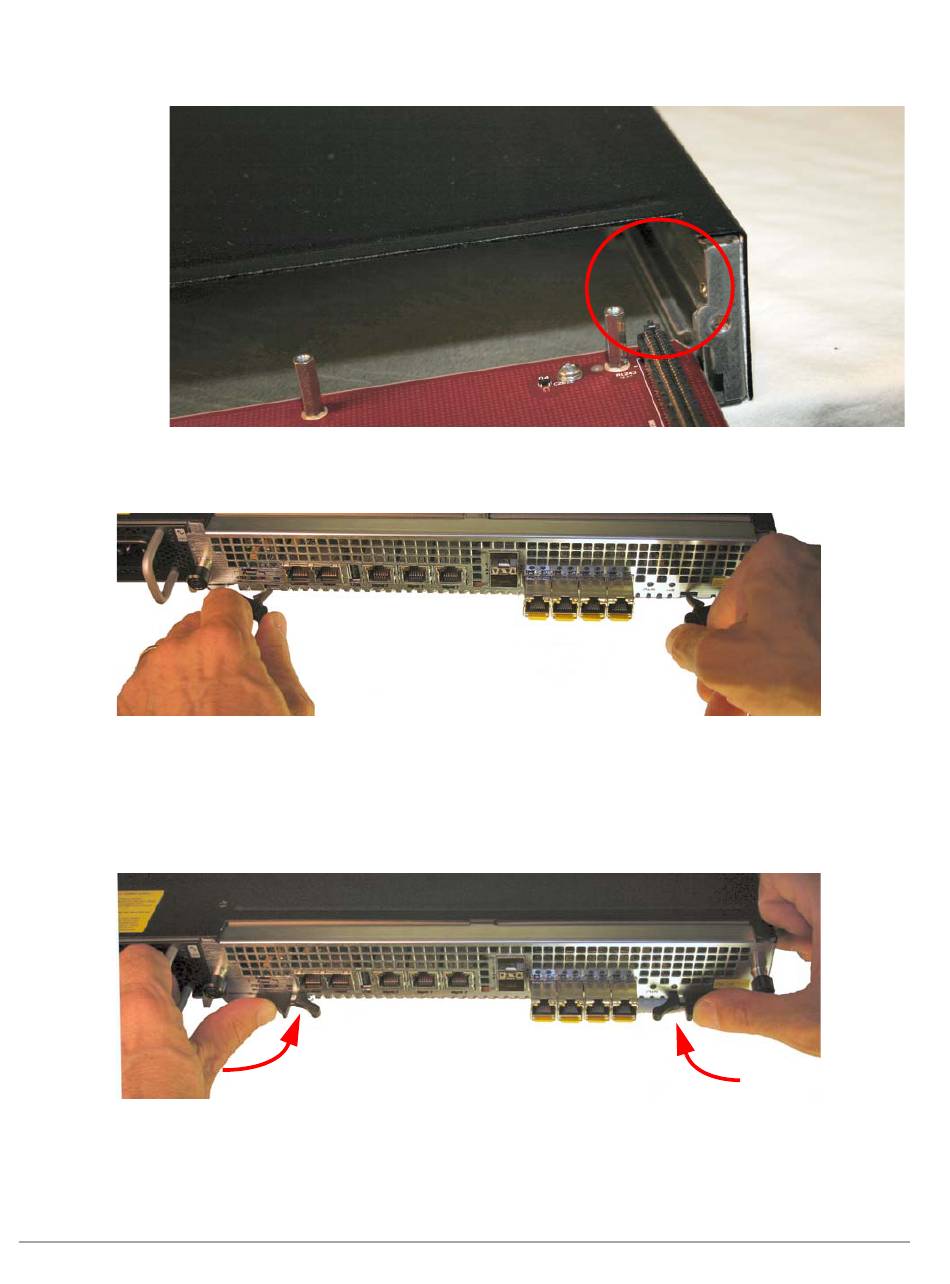

Figure 6 - 106. Aligning the NIU Card with the Chassis Slot Guides
5.
Slide the card into the Acme Packet 4600. The physical interface card circuit
board slides into the guide rails in the NIU bay of the system chassis.
Figure 6 - 107. Installing the NIU
6.
Continue sliding the card into the chassis until the ejection levers meet the
chassis and start to fold inward as the NIU is inserted into the chassis.
7.
Fold both ejection levers inward toward the card to complete the NIU
connection to the motherboard. Pushing the ejection levers inward draws the
physical interface card toward the system chassis and completes the connection.
83
