NIU Removal and Replacement

Caution
NIU Removal
Acme Packet 4600 Hardware Installation and Maintenance Guide
3. Insert the power supply into the empty power supply slot located on the rear
panel of the Acme Packet 4600 chassis. The labels on the power supply face
upward.

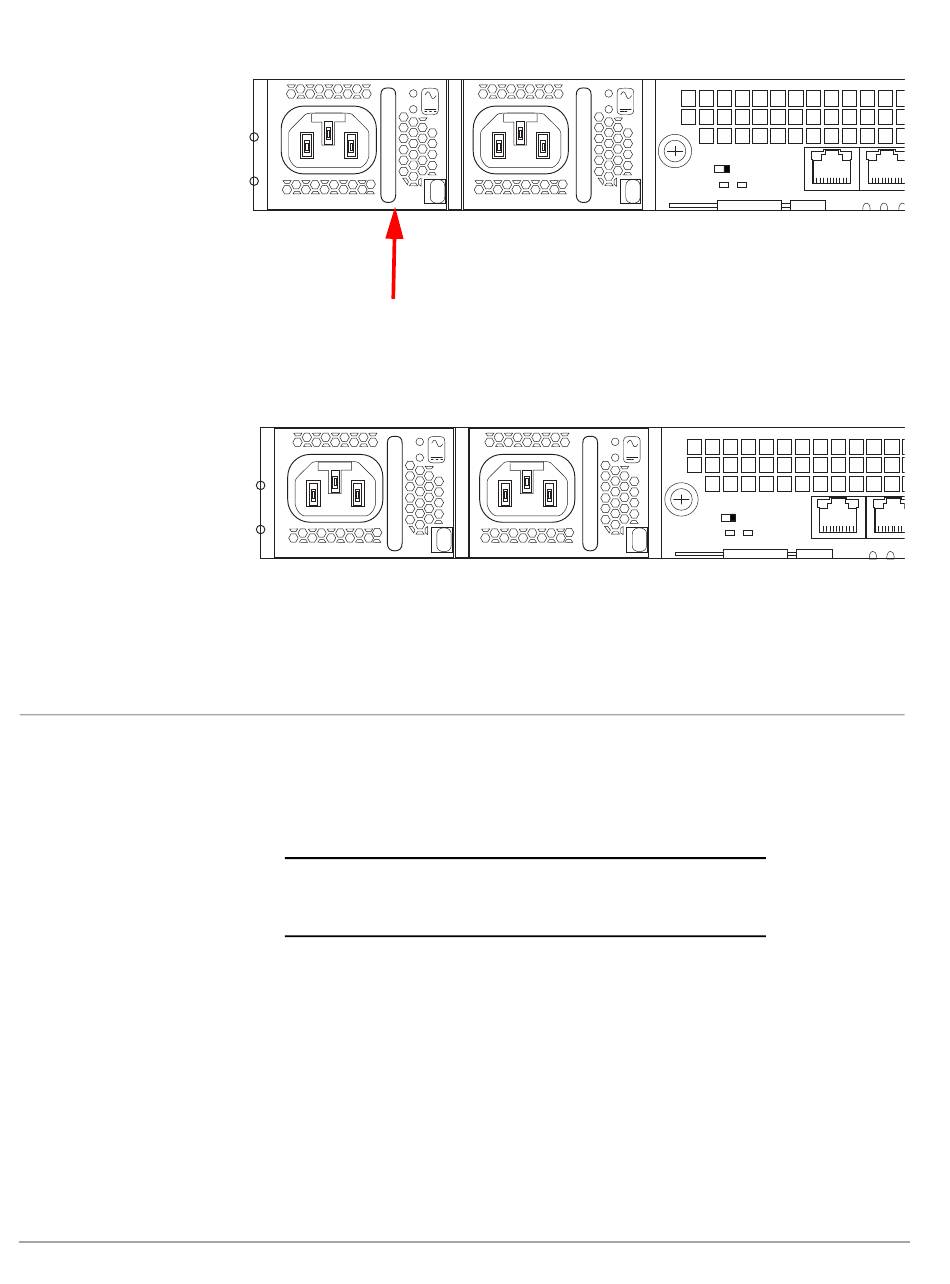

Figure 6 - 102. Installing the Power Supply
4. Push the power supply handle until the power supply is engaged with the mid
plane.
5. The power supply is installed in the Acme Packet 4600 chassis.
Figure 6 - 103. Installed Power Supplies
Note: Connect the power cord to the inserted power supply.
Prior to removing an NIU (Network Interface Unit), the platform in which it is
installed must be in standby state if it is part of a HA pair before powering down the
chassis and removing the NIU. The following procedure describes how to remove an
NIU.
Make sure you are properly grounded with an ESD strap before
removing the NIU.
To remove an NIU:
1. If the target Acme Packet 4600 is part of a HA pair, ensure that it is in standby
state. For more information, see "Standby State for HA Nodes" on page 6-73.
2. Set the System Power Switch to STBY to power down the chassis. See "DC
Power Supplies (left) and System Power Switch (right)" on page 6-77.
3. Unplug all network and management cables from the NIU you plan to remove
from the Acme Packet 4600.
System
Power
On Stby
Stby DIS
Console Alarm
System
Power
On Stby
DIS
Stby
Console Alarm
