Cabling Procedure
System
Power
On Stby
Stby DIS
Console
Management
Network Ports
Cabling Procedure
System
Power
On Stby
Stby DIS
Console
Media and
Signaling Network
Interfaces
60
To connect the alarm port cable to the NIU alarm port:
1. Locate the alarm contact cable you plan to connect to the Acme Packet 4600.
2. Insert the RJ45 connector on the end of the alarm port cable into the alarm port
labeled Alarm. The release tab on the RJ45 jack clicks into place when you insert
it properly.
Alarm USB Mgmt 0 Mgmt 1

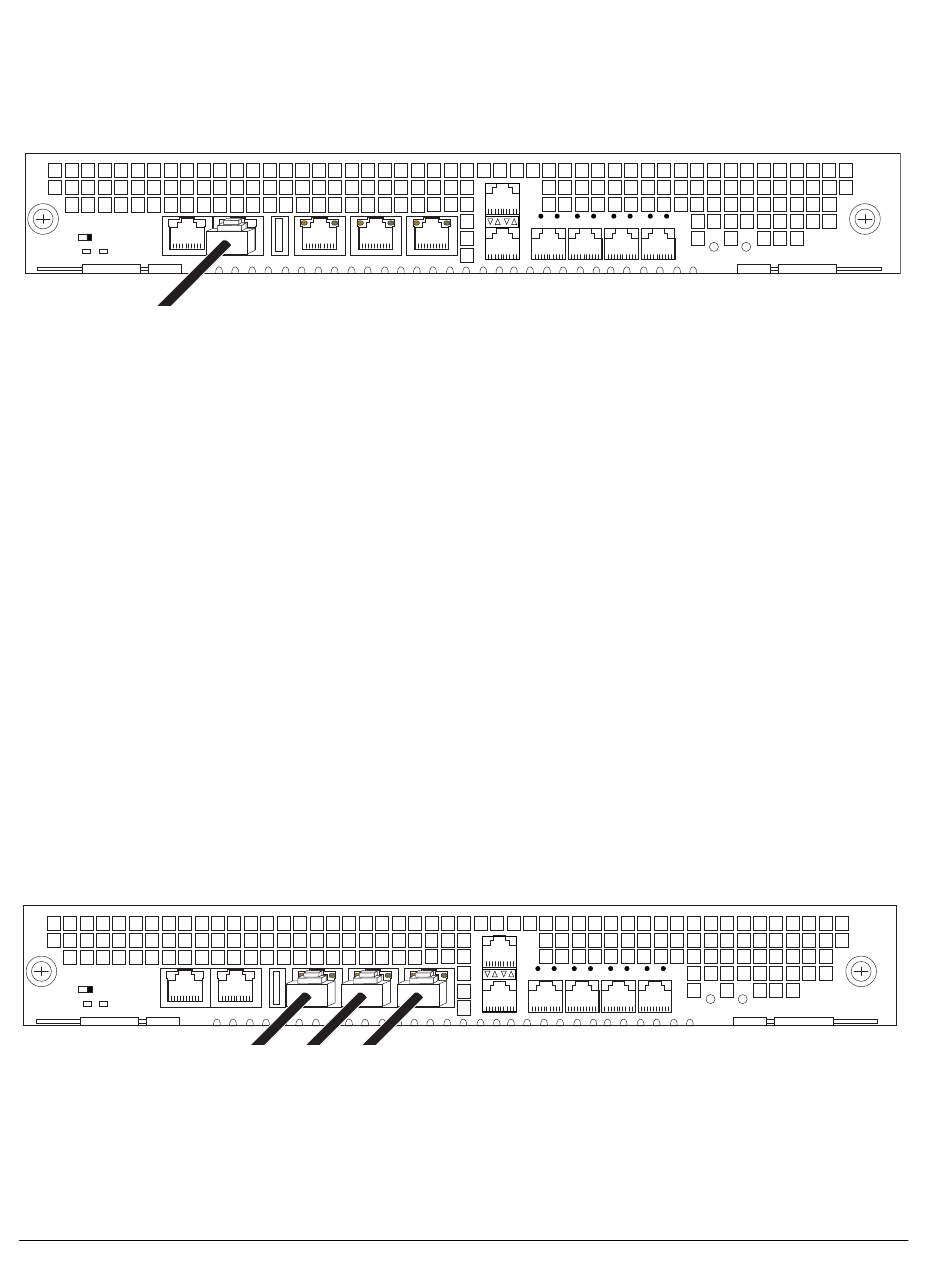

Figure 4-1. Alarm Contact Cable Connected to Alarm Port
3. Lead the alarm cable neatly away from the rear panel toward any alarm
monitoring equipment.
Standard shielded CAT5e or CAT6 (or higher) Ethernet cables with RJ45 jacks are
used for connecting the Acme Packet 4600 management Ethernet ports to your
network. These ports support 10/100/1000 Mbps speeds.
Note: Keep Ethernet cables separated from power cables by at
least 60mm where possible and never run them in the same
channel of a trunking system without segregation.
To connect Ethernet cables to the rear panel Ethernet ports:
1. Locate the Ethernet cables you plan to connect to the Acme Packet 4600.
2. Insert the RJ45 connector on the end of the Ethernet cable into one of the NIU
management Ethernet ports. These ports are labeled Mgmt0, Mgmt1, and
Mgmt2. The release tab on the RJ45 jack will click into place when you insert it
properly.
3. Route the cable away from the Acme Packet 4600. Make sure that the Ethernet
cables are not stretched tightly or subject to extreme stress.
4. Repeat Steps 1 through 3 for each additional management Ethernet cable you
will connect to your Acme Packet 4600.
Alarm USB Mgmt 0 Mgmt 1
Figure 4 - 82. Ethernet Cables Connected to Management Ports
This section explains how to cable the NIU for media and signaling. The NIU is
available with either copper or optical SFP Ethernet connectors. The media and
signaling ports that can be configured are either any combination of P0, P1, P2, and
P3, or P4 and P5; not a mixture of the 1GbE and 10GbE ports.
P5
L A
I C
N T
LINK ACT LINK
K
P4
Mgmt 2
P0 P1
P5
A
L
I C
N T
LINK ACT LINK
K
P4
Mgmt 2
P0 P1
Acme Packet 4600 Hardware Installation and Maintenance Guide
ACT LINK ACT LINK ACT
PWR H/S
P2 P3
ACT LINK ACT LINK ACT
PWR H/S
P2 P3
