Postinstallation
Attaching the Lid
Acme Packet 4600 Hardware Installation and Maintenance Guide
After the Solid State Drive has been installed in the Acme Packet 4600, you can close
the chassis and reinstall it in the equipment rack.
Use a #2 Phillips-head screwdriver for all chassis cover and side screws.
1.
Set the lid on top of the Acme Packet 4600 chassis. The stickers are positioned
at the chassis rear.
2.
Screw the eight countersunk screws into the top of the Acme Packet 4600 to

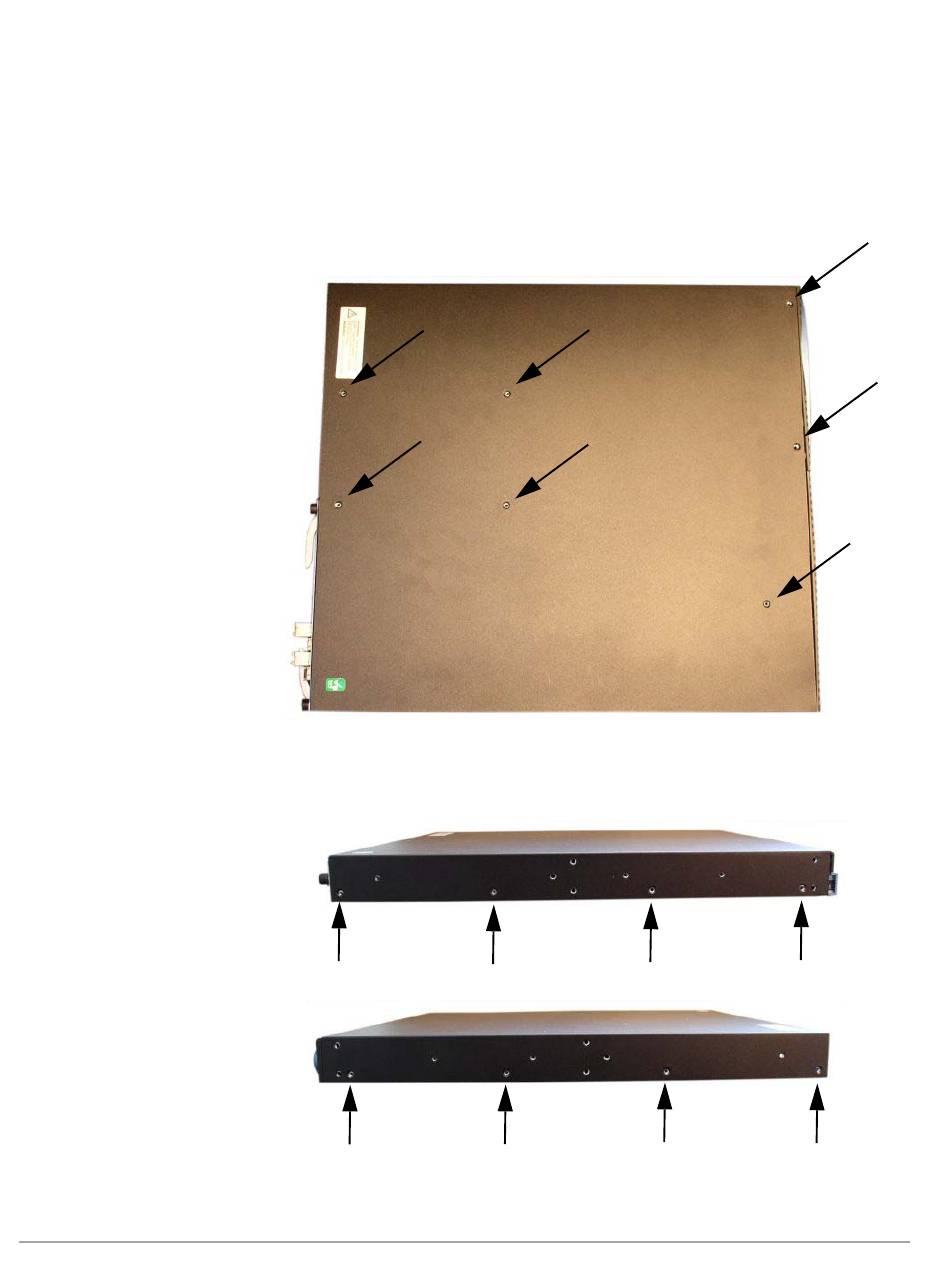

secure the chassis cover to the chassis. The following is an image of the top of
the chassis without any screws.
REAR
3.
Continue securing the chassis lid with four screws on each side.
LEFT SIDE
RIGHT SIDE
FRONT
101
