Maintaining the
Cooling
Components
Acme Packet 4600 Hardware Installation and Maintenance Guide

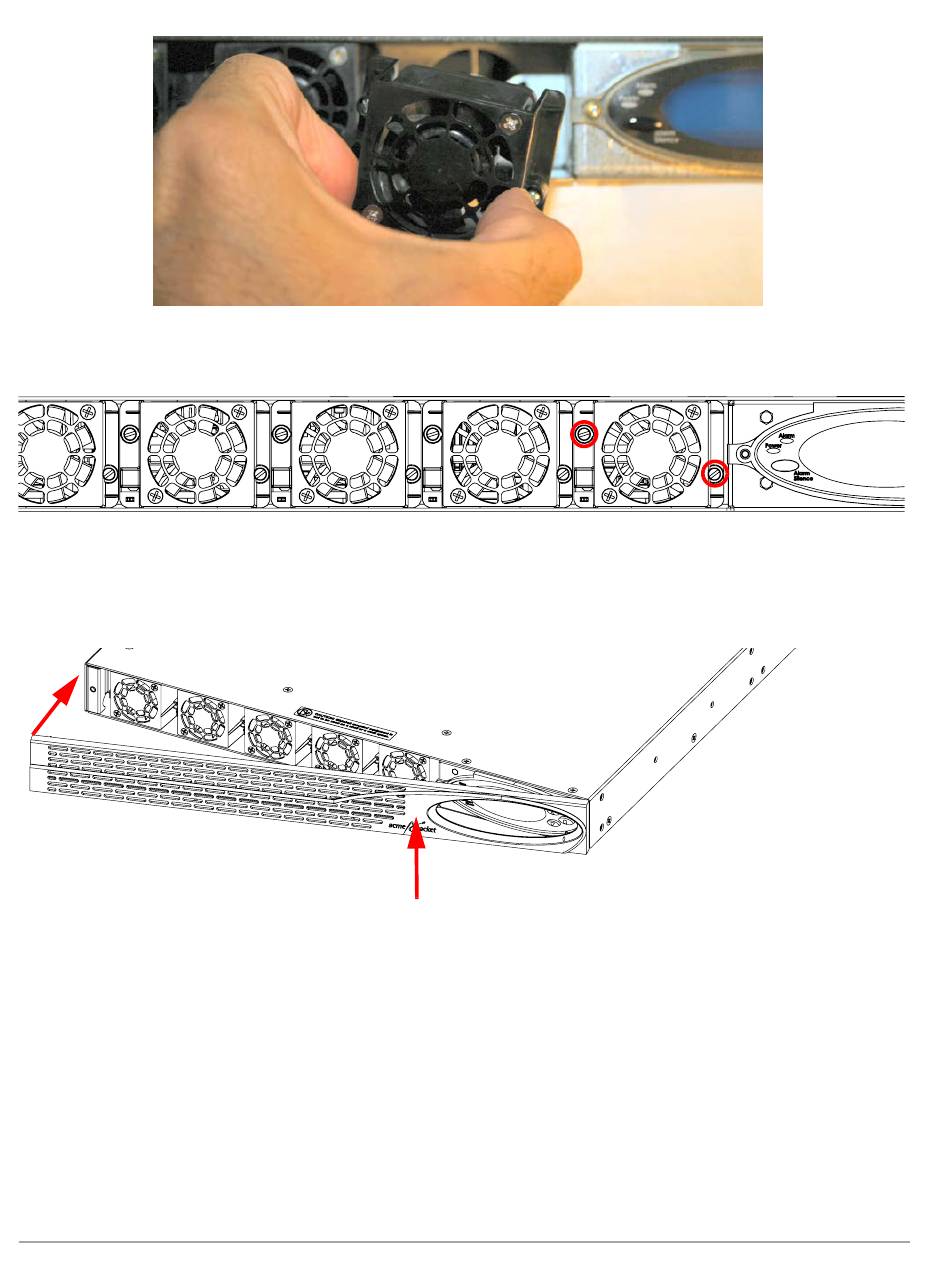

Figure 6 - 133. Inserting the Fan into the Chassis Slot
2.
Using a small bladed screwdriver, tighten the two captive screws to hold the fan
into place.
Figure 6 - 134. Tightening Fan-Fastening Screws
3.
Install the front bezel onto the Acme Packet 4600 by hooking the right side of
the bezel onto the chassis and then pivoting the bezel to the left until the magnet
catches the chassis. You may need to push on the left side of the display opening
to fully seat the bezel.
To Seat the Bezel
Figure 6 - 135. Replacing the Front Bezel
4.
The replacement fan and Bezel are installed onto the Acme Packet 4600.
The Acme Packet 4600 air filter removes airborne particles before they are drawn
into the Acme Packet 4600 chassis. To prevent system malfunction and prolong the
life of the system's cooling components, do these things:
105
