Caution
Locking Clip Latch
78
Beginning in this step, one person should support the Acme
Packet 4600 from below while the other person removes the
system chassis from the equipment rack.
6.
Pull the Acme Packet 4600 forward and out of the equipment rack.
7.
When mounted in slide rails, the chassis will stop when the locking clip pin on
the chassis slide rail engages with the equipment rack slide rail.

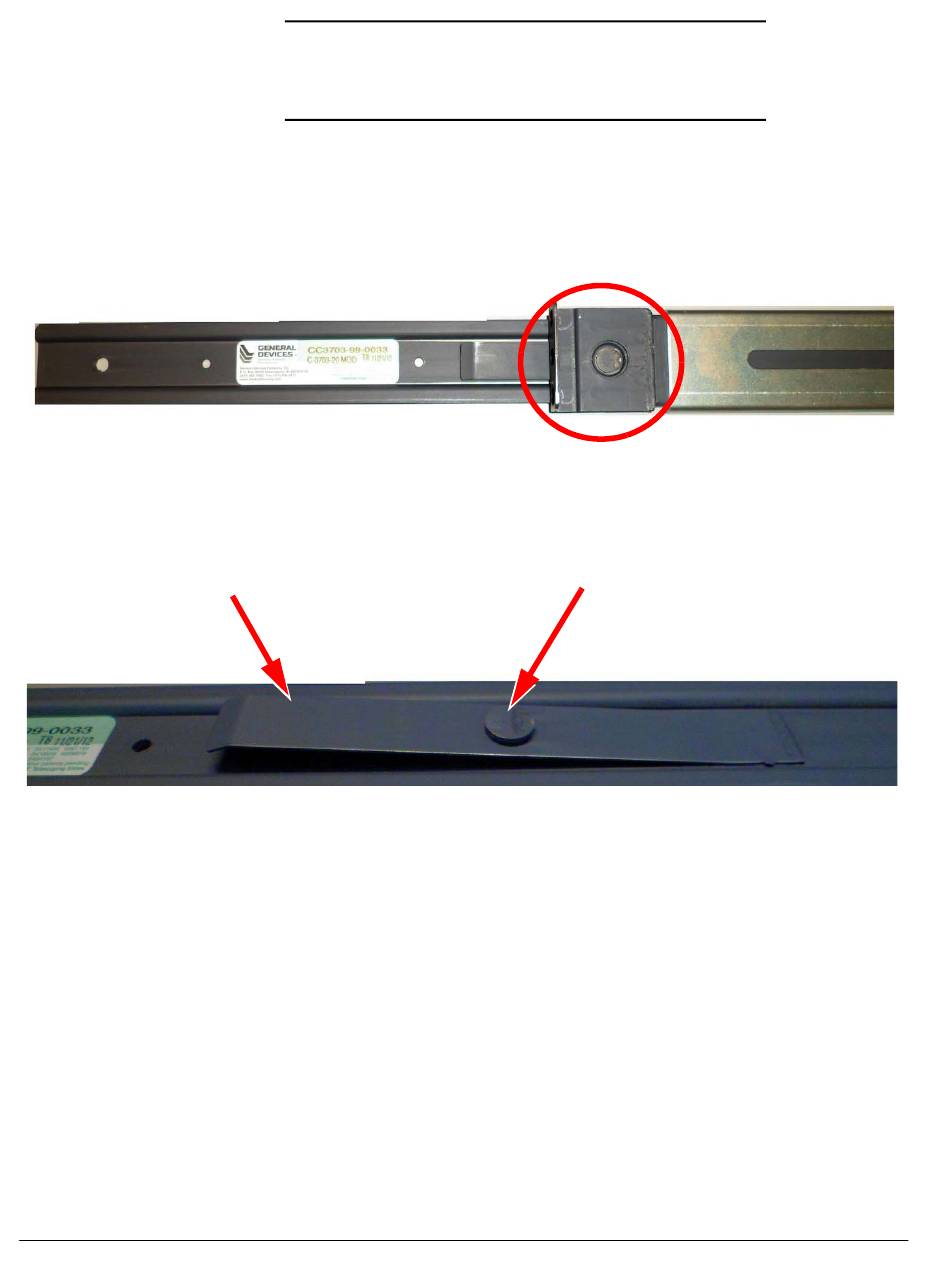

Figure 6 - 97. Locking Clip Fastens the Chassis and Rack Slide Rails
8.
Push on the locking clip pin and locking clip latch to unlock the slide rails from
each other.
Figure 6 - 98. Locking Clip Latch and Locking Clip Pin
9.
Remove the chassis completely from the slide rails.
10. Lift the Acme Packet 4600 out of the equipment rack, and move it to an ESD-
safe location.
Locking Clip Pin
Acme Packet 4600 Hardware Installation and Maintenance Guide
