large hole
Installing the
Chassis in the
Rack
50

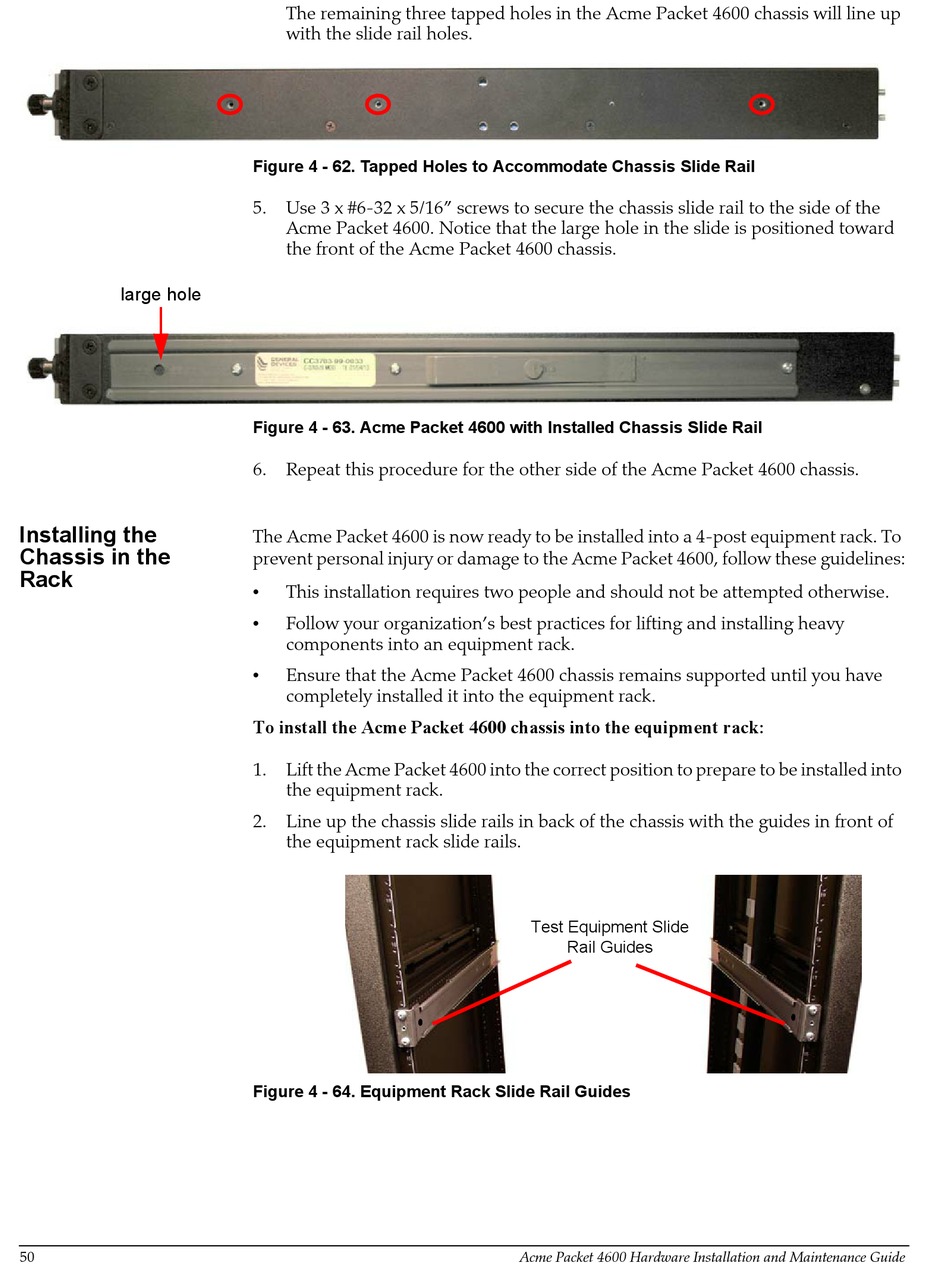

The remaining three tapped holes in the Acme Packet 4600 chassis will line up
with the slide rail holes.
Figure 4 - 62. Tapped Holes to Accommodate Chassis Slide Rail
5. Use 3 x #6-32 x 5/16" screws to secure the chassis slide rail to the side of the
Acme Packet 4600. Notice that the large hole in the slide is positioned toward
the front of the Acme Packet 4600 chassis.
Figure 4 - 63. Acme Packet 4600 with Installed Chassis Slide Rail
6. Repeat this procedure for the other side of the Acme Packet 4600 chassis.
The Acme Packet 4600 is now ready to be installed into a 4-post equipment rack. To
prevent personal injury or damage to the Acme Packet 4600, follow these guidelines:
•
This installation requires two people and should not be attempted otherwise.
•
Follow your organization's best practices for lifting and installing heavy
components into an equipment rack.
•
Ensure that the Acme Packet 4600 chassis remains supported until you have
completely installed it into the equipment rack.
To install the Acme Packet 4600 chassis into the equipment rack:
1. Lift the Acme Packet 4600 into the correct position to prepare to be installed into
the equipment rack.
2. Line up the chassis slide rails in back of the chassis with the guides in front of
the equipment rack slide rails. 
Figure 4 - 64. Equipment Rack Slide Rail Guides
Test Equipment Slide
Rail Guides
Acme Packet 4600 Hardware Installation and Maintenance Guide
