Locking Clip Latch
14
chassis from being overextended and requiring the user to unlock the clip to
intentionally remove the chassis.
Locking Clip

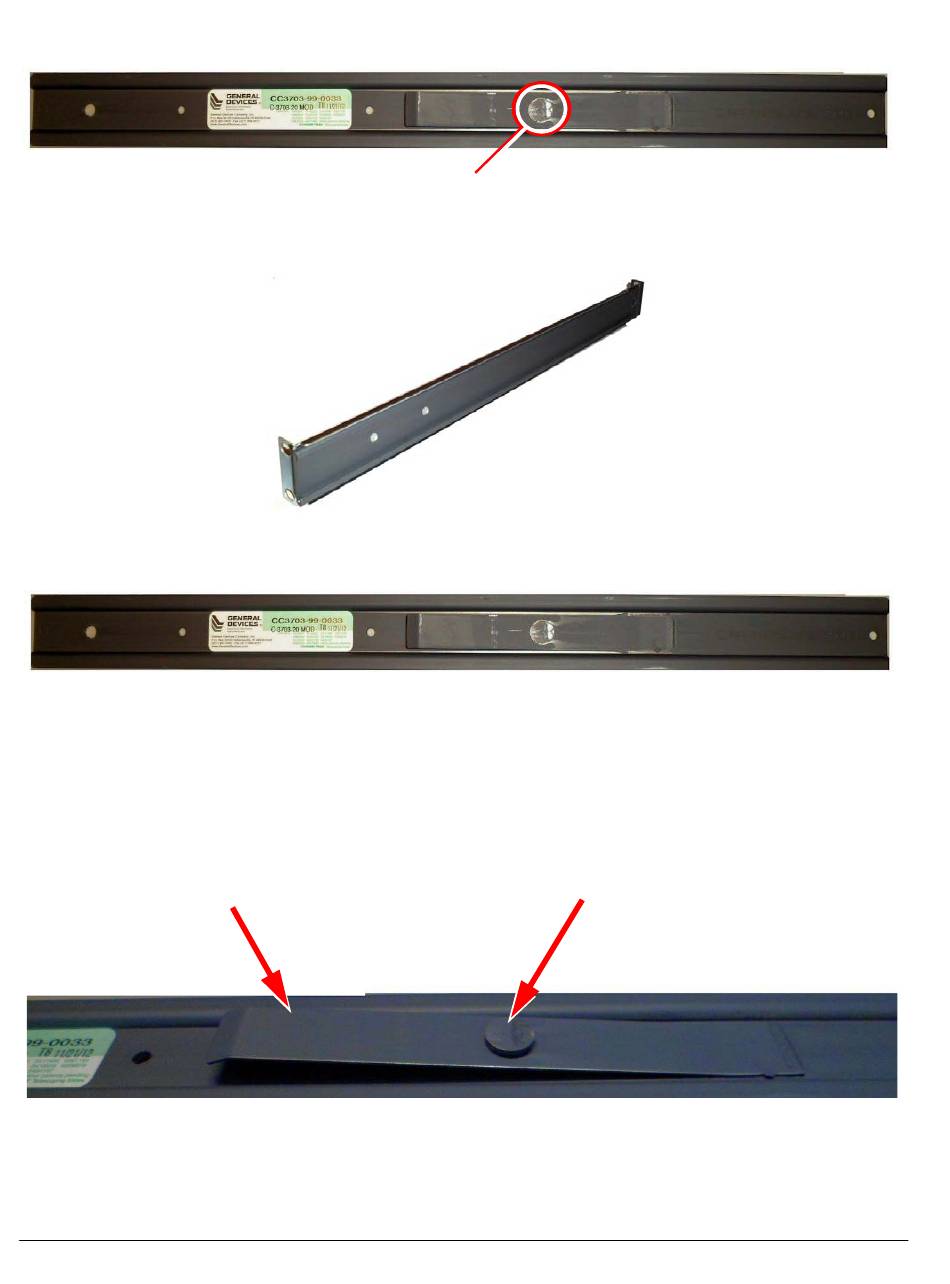

Figure 2 - 4. Slide Rail Locking Clip and Vertical Orientation
•
The slide rails that are bolted to either side of the chassis or equipment rack are
reversible and can be used on either side of the Acme Packet 4600.
Figure 2 - 5. Rack-Mounted Slide Rail (rear mounting point at left)
Figure 2 - 6. Chassis-Mounted Slide Rail
•
Once the slide rails are installed on the chassis and on the equipment rack, the
chassis can be installed in the rack by inserting the chassis slide rails into the
tracks of the slide rails already mounted on the equipment rack. When the
locking clip pin on the chassis slide rail meets the hole in the rack slide rail, the
rails lock together. Push the locking clip pin in to continue to slide the chassis
into the rack rails.
Figure 2 - 7. Locking Clip Latch and Locking Clip Pin
Locking Clip Pin
