Oracle Acme Packet 4600 Hardware Installation And Maintenance Manual page 62

System
Power
On Stby
DIS
Stby
Console
SFP Optical Cabling
Procedure
Fiber Optic Cable
Handling
System
Power
On Stby
Stby DIS
Console
62
Alarm USB Mgmt 0 Mgmt 1

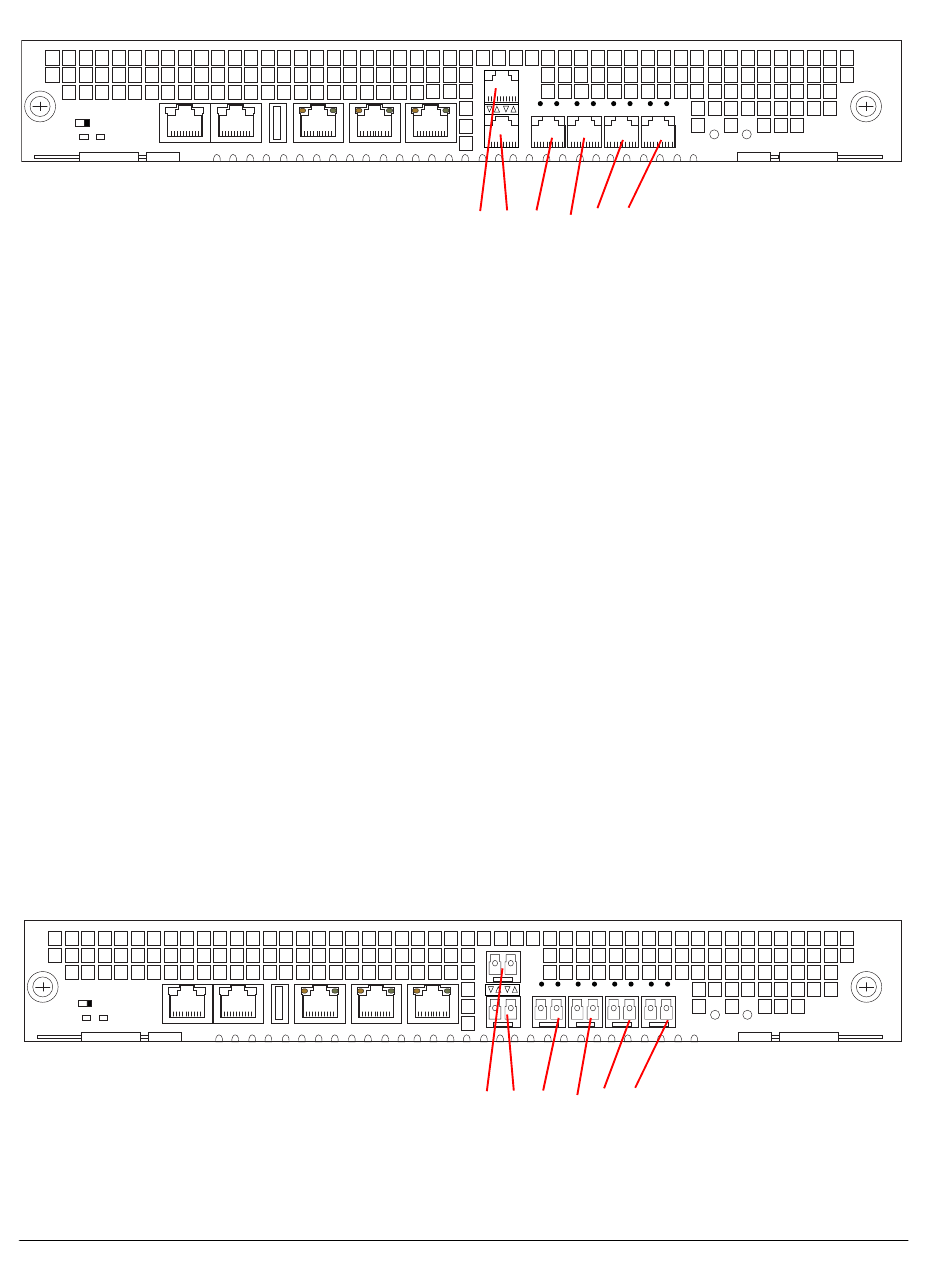

Figure 4 - 83. Signaling & Media Ports
3. Route the cable away from the Acme Packet 4600. Make sure that the Ethernet
cables are not stretched tightly or subjected to extreme stress.
4. Repeat Steps 1 through 3 for each additional Ethernet cable you connect to your
Acme Packet 4600.
This section explains how to cable a Acme Packet 4600 configured with a GbE optical
NIU. Standard single mode or multimode fiber optic cabling with duplex LC
connectors are used to connect the Acme Packet 4600 SFP-based NIUs to your
network.
When handling a fiber optic cable:
•
Never touch the polished end of fiber cable.
•
To prevent serious eye damage, never look directly into a fiber optic cable
connector or mating adapter.
•
Clean all fiber optics before installing them into your network according to
prescribed procedures.
•
Ensure that the bend radius of your fiber cables is kept to a minimum of 3" or
that specified by the fiber cable manufacturer.
•
Perform all cabling procedures according to the established standards for your
organization.
To connect network optical cabling to the optical physical interface cards:
1. Locate the fiber optic cables you plan to connect to the Acme Packet 4600.
You can choose from either P5 and P4 (10GbE), or P0, P1, P2 and P3 (1GbE).
Alarm USB Mgmt 0 Mgmt 1
Figure 4 - 84. Signaling and Media Ports
P5
A
L
I C
N T
LINK ACT LINK
K
P4
Mgmt 2
P0 P1
P5 P4 P0 P1 P2 P3
Signaling & Media (P=port)
P5
L A
I C
N T
LINK ACT LINK
K
P4
Mgmt 2
P0 P1
P5 P4 P0 P1 P2 P3
Signaling & Media (P=port)
Acme Packet 4600 Hardware Installation and Maintenance Guide
ACT LINK ACT LINK ACT
PWR H/S
P2 P3
ACT LINK ACT LINK ACT
PWR H/S
P2 P3
