Removing Hardware in
Center-Mount
Configurations
Removing Hardware in
Front-Mount
Configurations
Acme Packet 4600 Hardware Installation and Maintenance Guide
The rack ears must be removed before you can open the chassis.

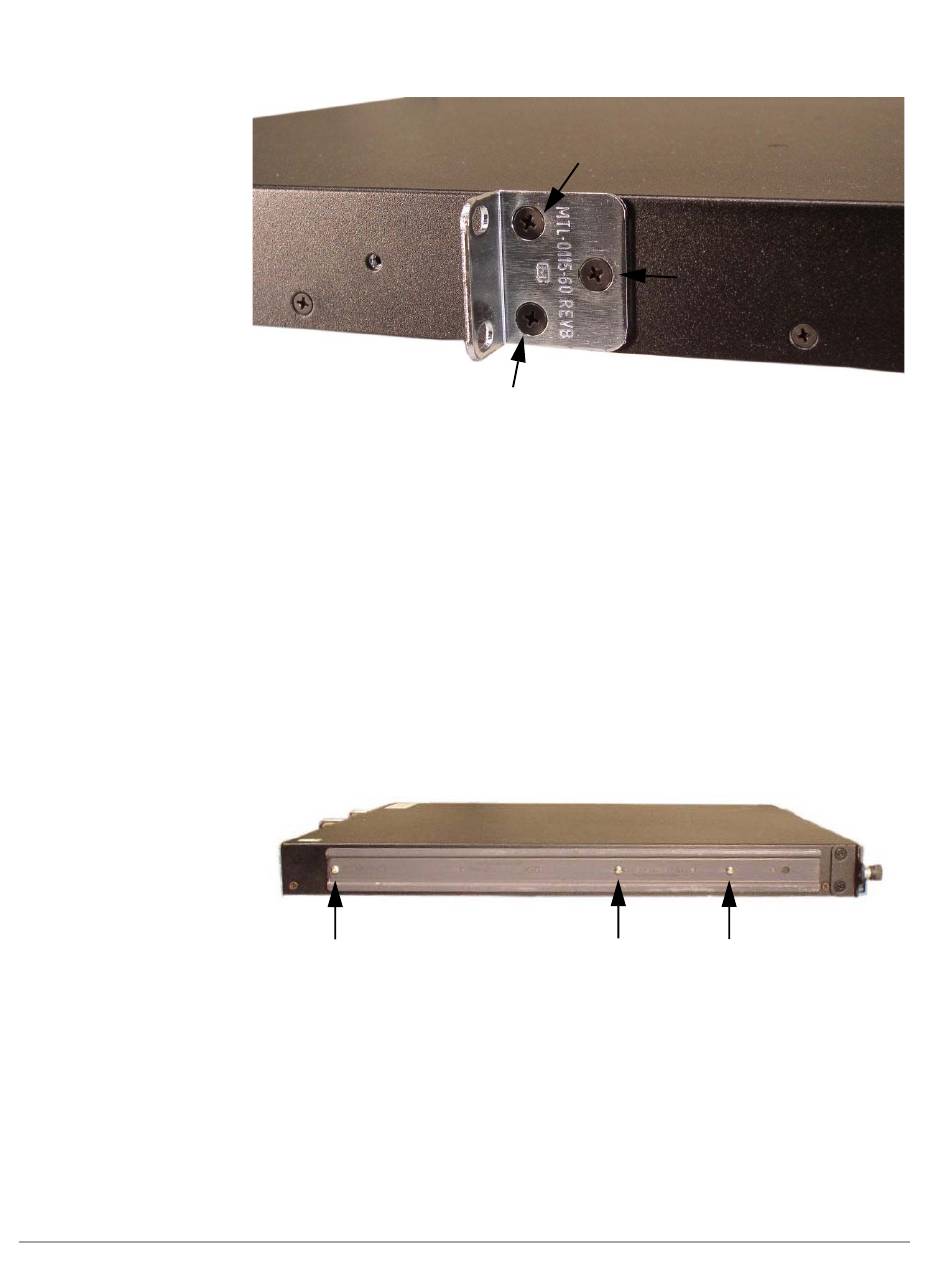

Figure 2 - 33 Left rack ear.
To remove center-mount equipment rack hardware:
1.
Remove the left rack ear by using a #1 Phillips-head screwdriver.
2.
Remove the right rack ear by unscrewing the three screws.
3.
Set the rack ears and screws aside.
The chassis slides and rack ears must be removed before you can open the chassis.
To remove front-mount equipment rack hardware:
1.
Remove the left chassis slide by using a #2 Phillips-head screwdriver.
2.
Remove the left rack ear by unscrewing the three screws.
Figure 6 - 122: 2 - 34: Left chassis slide.
