Install an Optical
Transceiver
Acme Packet 4600 Hardware Installation and Maintenance Guide
2.
Pull the bale clasp latch out and down. It will pivot downwards on its hinge.

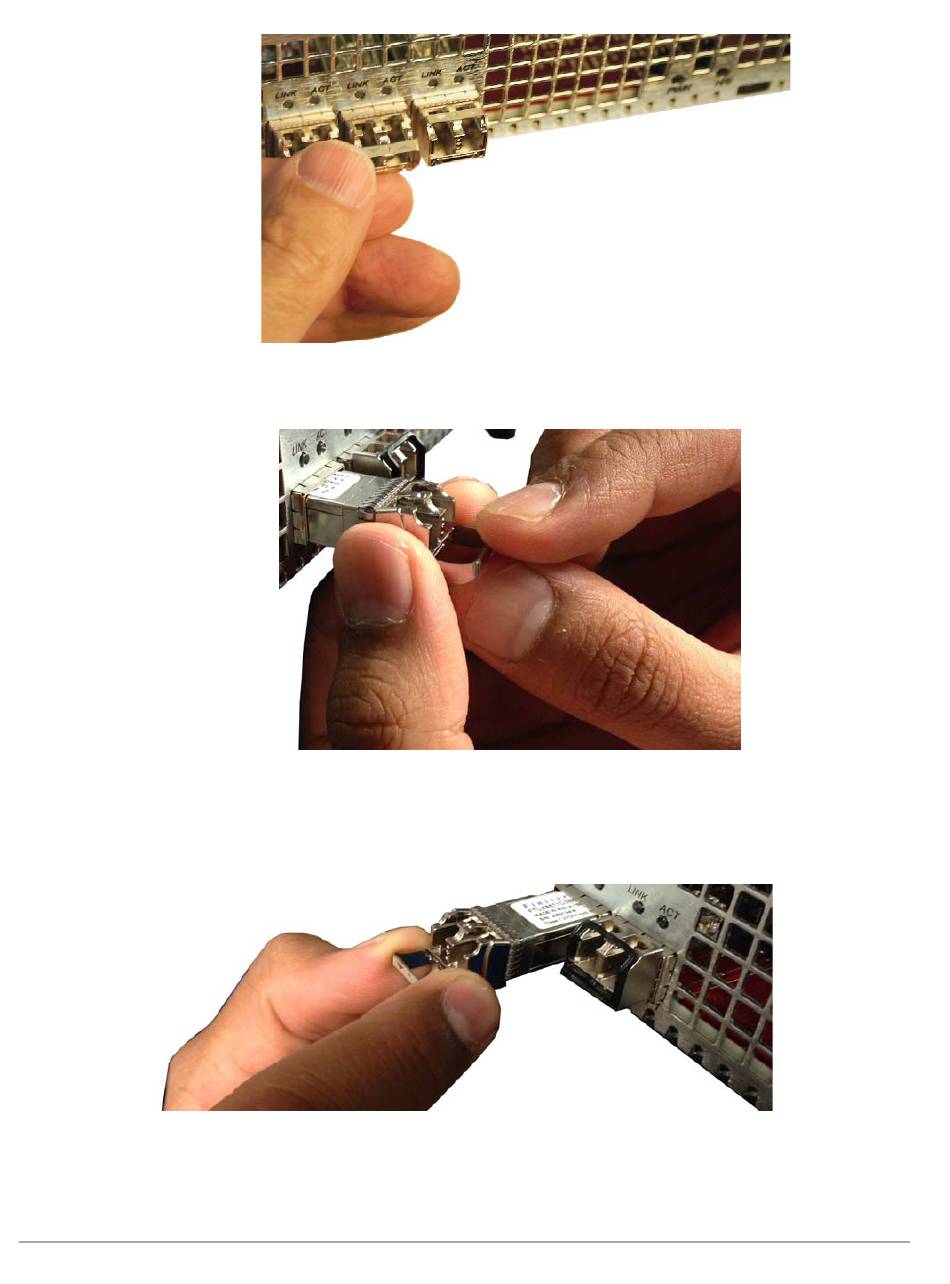

Figure 6 - 141. Lowering the Bale Clasp Latch
3.
Holding the extended bale clasp latch, pull the optical transceiver fully out of its
socket of the physical interface card.
Figure 6 - 142. Removing the Optical Transceiver
To install an optical transceiver:
1.
Slide the replacement optical transceiver into the socket on the NIU.
Figure 6 - 143. Inserting the Optical Transceiver into the Socket
