Acme Packet 4600 Hardware Installation and Maintenance Guide
Management network ports feature automatic crossover negotiation so that a
crossover cable is not necessary for HA cabling.
To cable Acme Packet 4600 in an HA configuration using single rear interface
support:
1. Insert one end of an Ethernet cable into either Mgmt1 or Mgmt2 on the rear
panel of the Acme Packet 4600 A. The release tab on the RJ45 jack clicks into
place when you insert it properly.
2. Insert the other end of the Ethernet cable into the corresponding management
interface on the rear panel of the Acme Packet 4600 B. The release tab on the
RJ45 jack clicks into place when you insert it properly. If you use Mgmt1 on Acme
Packet 4600 A, then you will connect it to Mgmt1 on Acme Packet 4600 B.
IN IN
OUT OUT
System
Power
On Stby
Stby DIS
IN IN
OUT OUT
System
Power
On Stby
Stby DIS

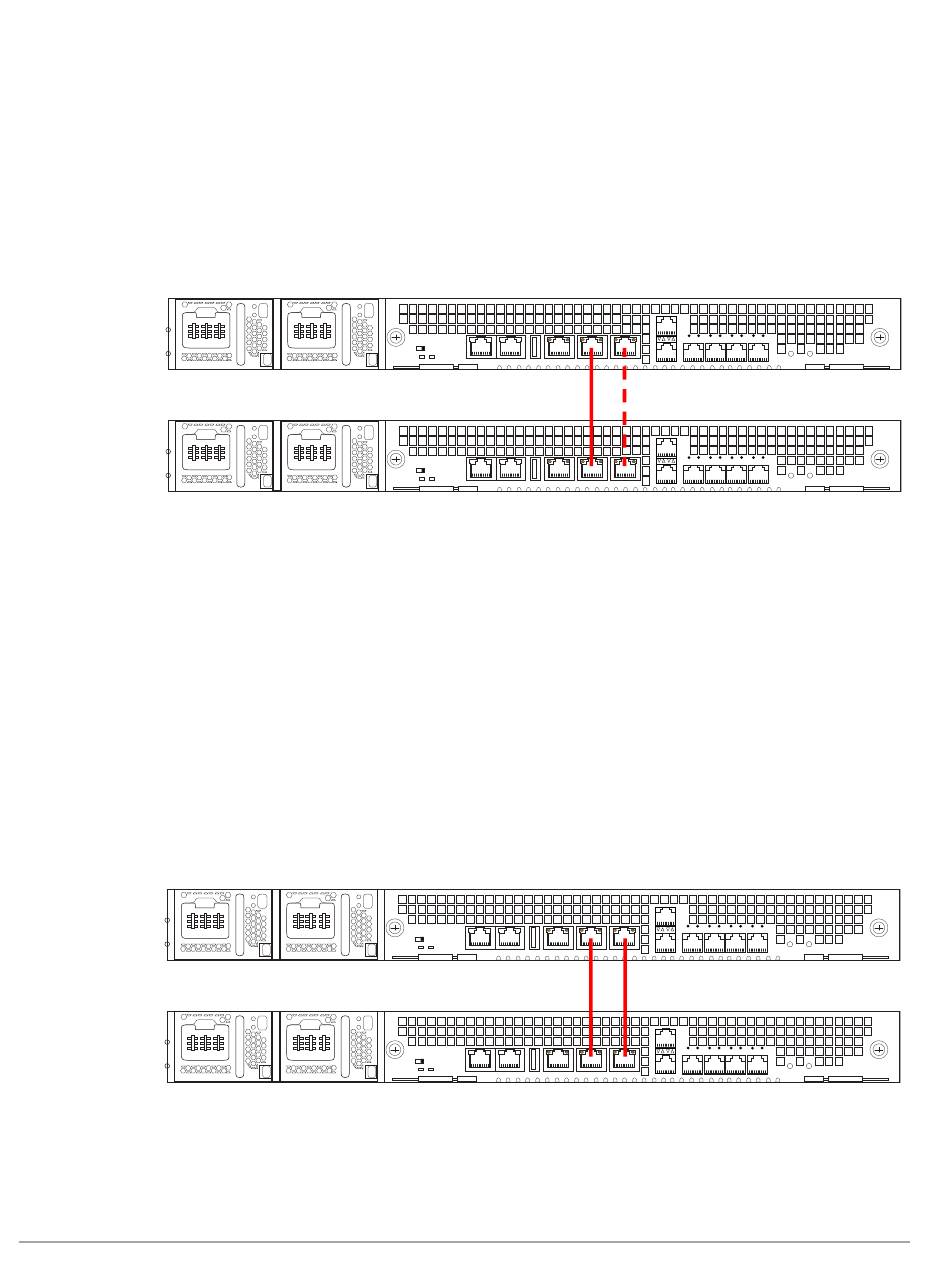

Figure 4 - 90. HA Configuration (Either of the Cabling Connections Can Be Used)
3. Refer to the configuration procedures located in the HA Nodes chapter of the
Acme Packet Configuration Guide.
To cable Acme Packet 4600 Systems in an HA configuration using dual rear
interface support:
1. Insert one end of an Ethernet cable into Mgmt1 on the rear panel of Acme Packet
4600 A. The release tab on the RJ45 jack clicks into place when you insert it
properly.
2. Insert the other end of the cable into the Mgmt1 port on the rear panel of Acme
Packet 4600 B.
3. Insert one end of a second Ethernet cable into Mgmt2 on the rear panel of Acme
Packet 4600 A.
4. Insert the other end of the cable into Mgmt2 on the rear panel of Acme Packet
4600 B.
IN IN
OUT OUT
System
Power
On Stby
DIS
Stby
IN IN
OUT OUT
System
Power
On Stby
Stby DIS
Figure 4 - 91. HA Configuration (Both of the Cabling Connections Must Be Used)
5. Refer to the configuration procedures located in the HA Nodes chapter of the
Acme Packet Configuration Guide.
