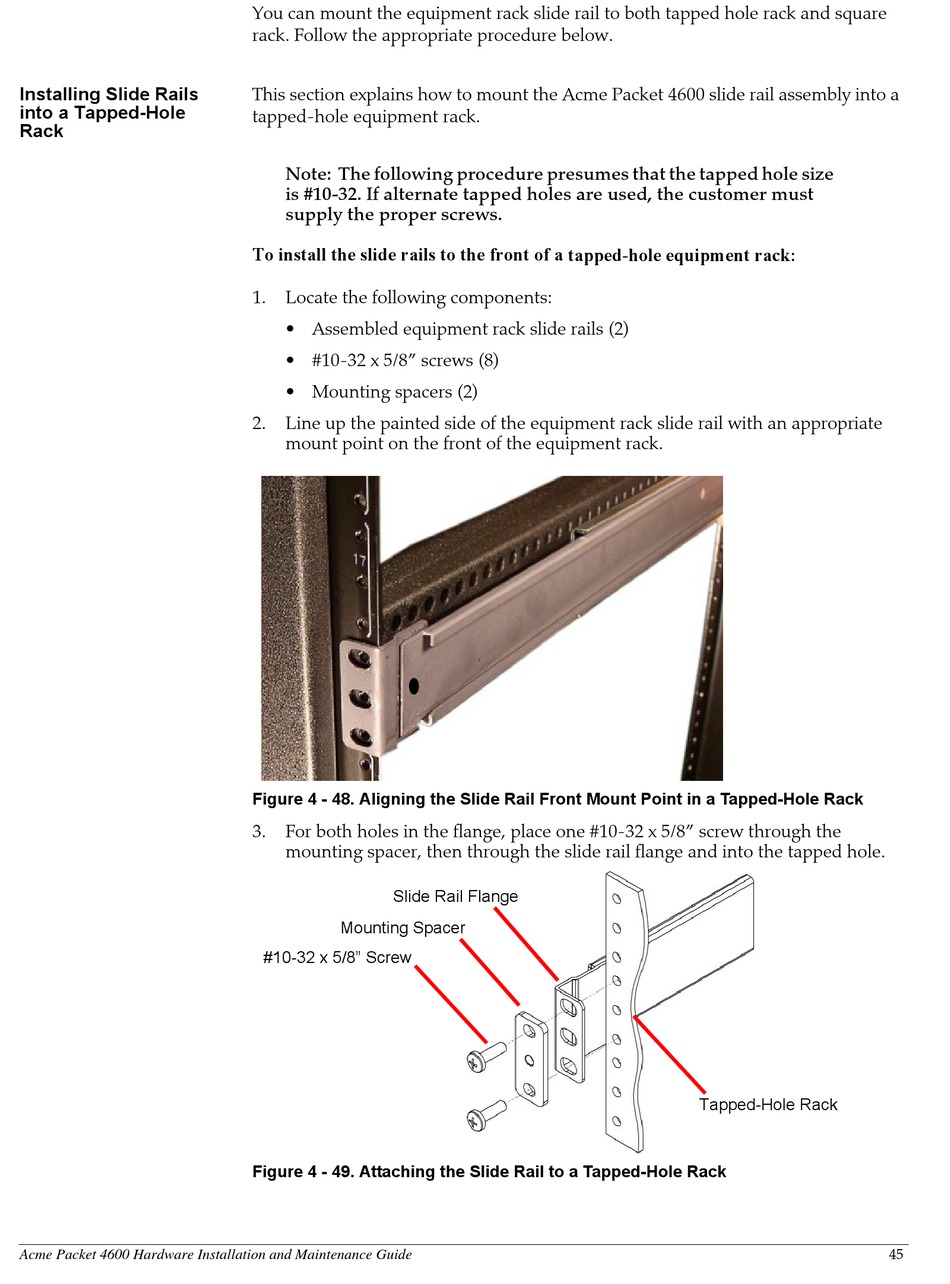

Installing Slide Rails
into a Tapped-Hole
Rack
Acme Packet 4600 Hardware Installation and Maintenance Guide
You can mount the equipment rack slide rail to both tapped hole rack and square
rack. Follow the appropriate procedure below.
This section explains how to mount the Acme Packet 4600 slide rail assembly into a
tapped-hole equipment rack.
Note: The following procedure presumes that the tapped hole size
is #10-32. If alternate tapped holes are used, the customer must
supply the proper screws.
To install the slide rails to the front of a tapped-hole equipment rack:
1.
Locate the following components:
• Assembled equipment rack slide rails (2)
• #10-32 x 5/8" screws (8)
• Mounting spacers (2)
2.
Line up the painted side of the equipment rack slide rail with an appropriate
mount point on the front of the equipment rack.
Figure 4 - 48. Aligning the Slide Rail Front Mount Point in a Tapped-Hole Rack
3.
For both holes in the flange, place one #10-32 x 5/8" screw through the
mounting spacer, then through the slide rail flange and into the tapped hole.
Slide Rail Flange
Mounting Spacer
#10-32 x 5/8" Screw
Figure 4 - 49. Attaching the Slide Rail to a Tapped-Hole Rack
Tapped-Hole Rack
45
