Ambient Temperature parameter to the actual ambient temperature allows you to take
advantage of a lower temperature and could eliminate the need for an external shunt
resistor and controller.
The charts below indicate the operating range for a given ambient temperature.
140%
120%
100%
80%
60%
40%
20%
0%
0%

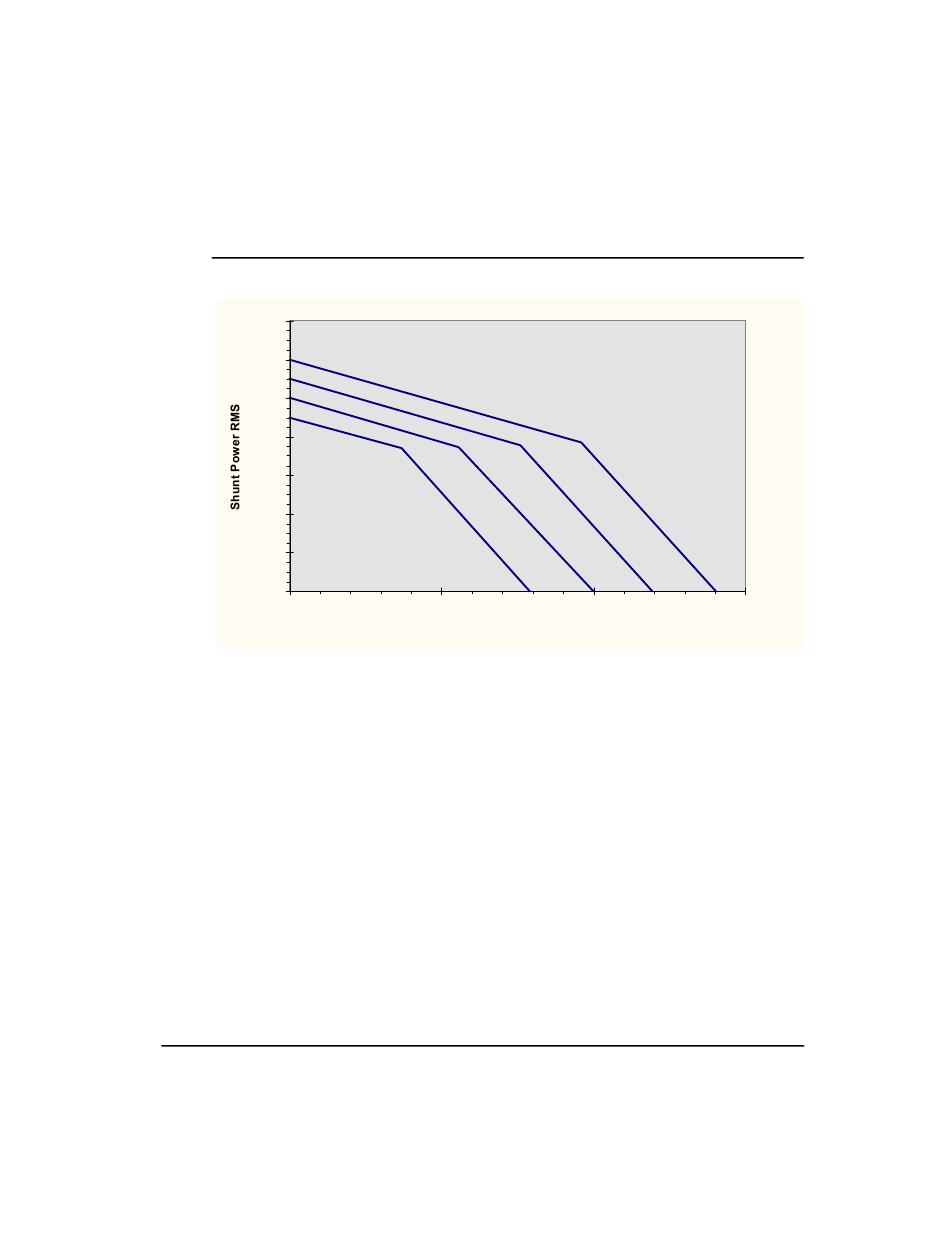

Figure 13: EN-208 Shunt Power RMS vs. Heatsink RMS
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
20 C
30 C
40 C
50 C
50% 100%
Heatsink RMS
