Epsilon Eb and EN Drives Reference Manual

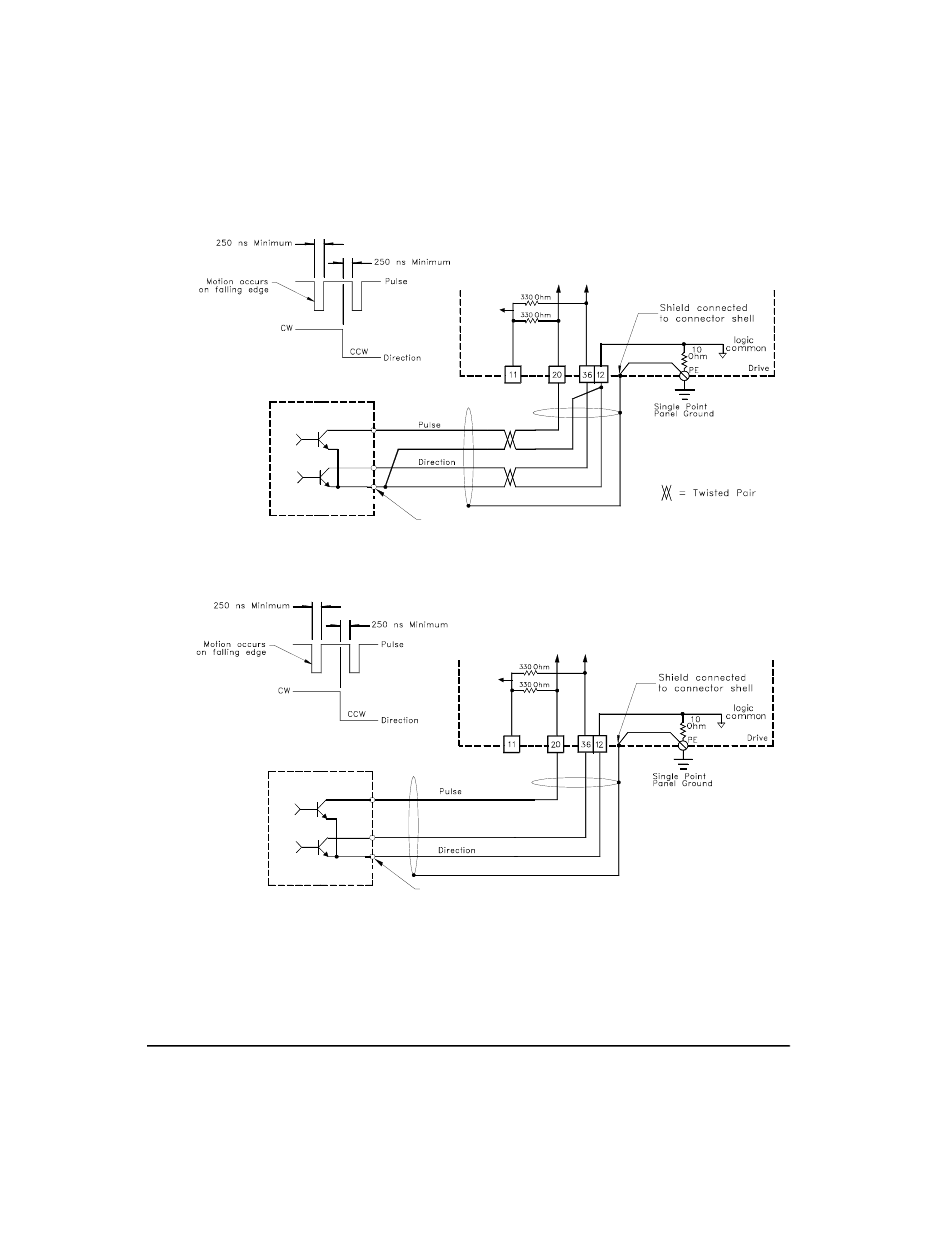

Pulse Mode Wiring, Single Ended Inputs
Sinking
Outputs (typ)
Figure 84:
Pulse Mode, Single Ended Output to Single Ended Input (twisted pair cable)
Sinking
Outputs (typ)
Figure 85:
Pulse Mode, Single Ended Output to Single Ended Input (non-twisted pair
cable)
110
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
+5
Logic
Power
Direct
Pulse
A/
B
Common isolated
from other sources
+5
Logic
Power
Pulse
Direct
A/
B
Common isolated
from other sources
