Front View
Bottom View

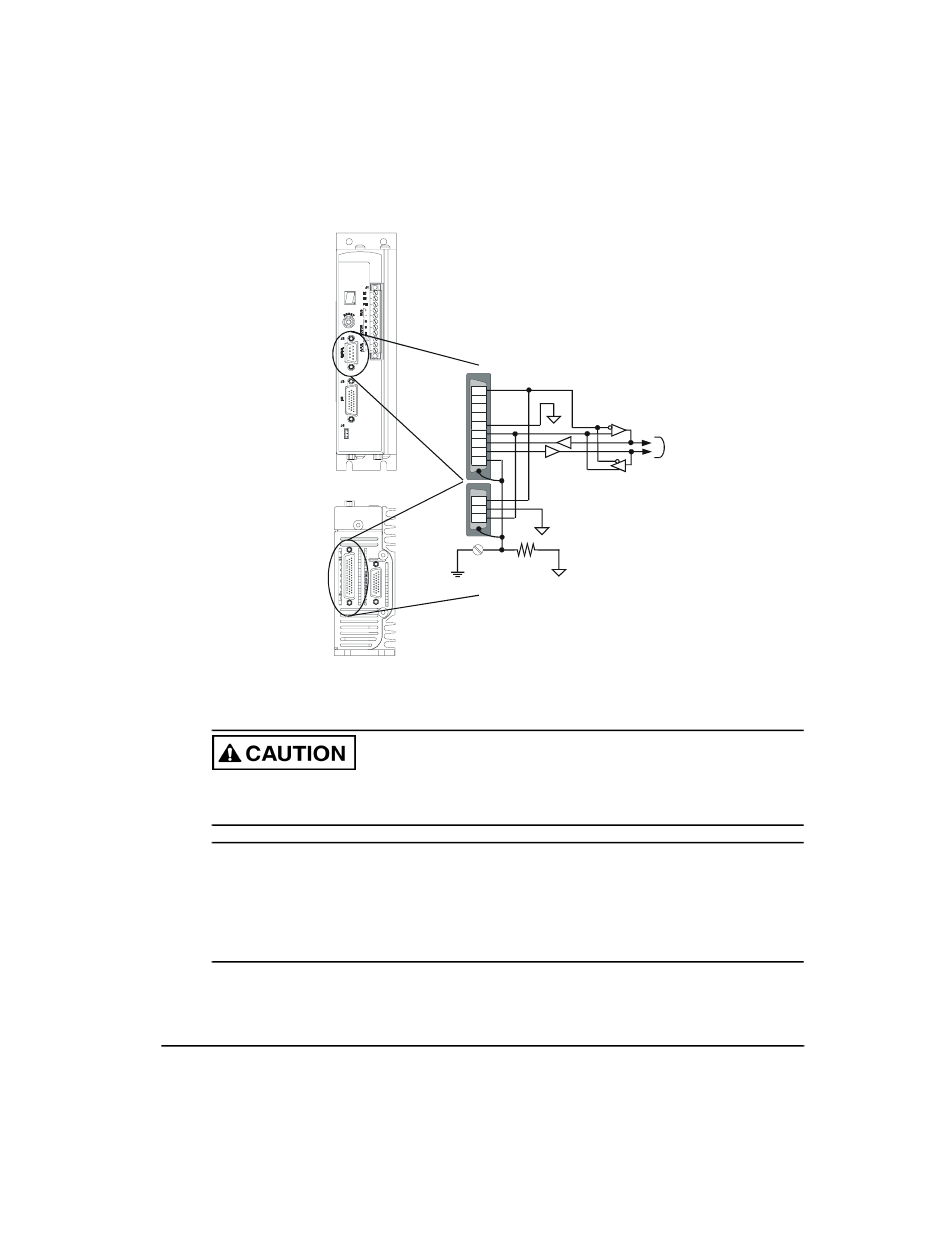

Figure 89: Epsilon RS-232 and RS-485 Internal Connections between the Command
Connector and the Serial Communication Connector
When connecting the serial port of your PC to the serial port of the drive, verify that your
PC's ground is the same as the drive PE ground. Failure to do so can result in damage to
your PC and/or your drive.
Note
Communication errors can usually be avoided by powering the computer or host device
off of a convenience outlet that is mounted in the enclosure and whose neutral and ground
are wired to the same single ended point ground that the drives and controllers are using.
This is sometimes beneficial even with battery powered computers.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
RS-485 - 9
N/C 8
N/C 7
+ 5 6
Comm Common 5
RS-485 + 4
TX (232) 3
RX (232) 2
1
Shield
J2
RS-485 -
21
12
RS-485 + 6
PE
10 Ohm
Single point
ground
J5
Installation
To drive
processor.
