Velocity Tab
(Detailed Setup view only)
This tab allows you to set the drive limits, and if you are online, view the actual operating
velocity feedback parameters.

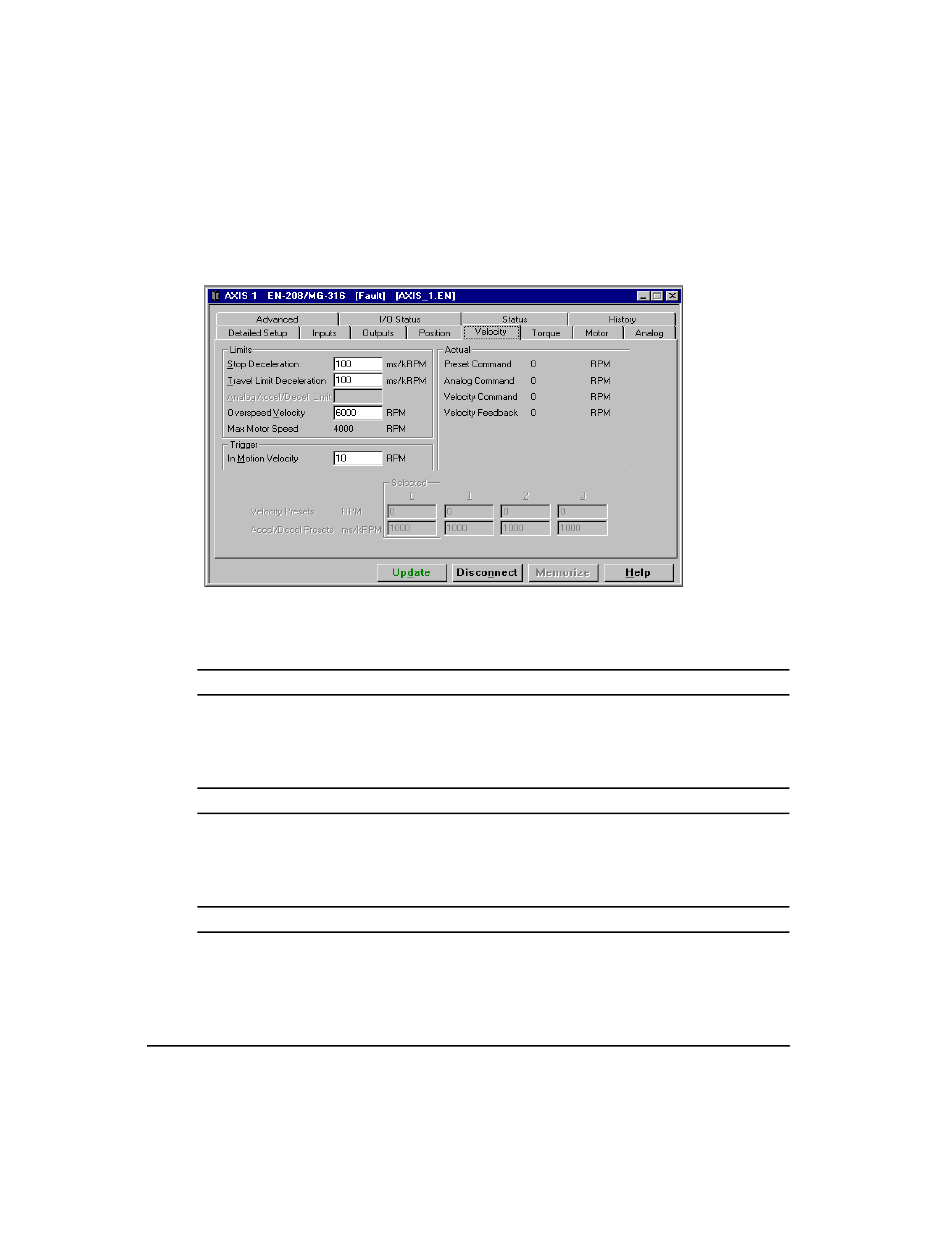

Figure 38: Velocity Tab

Limits Group

Stop Deceleration
The value you enter here defines the rate of velocity change to zero speed when a Stop input
function is activated.
The units are ms/kRPM and the range is from 0 to 32700.0. The default is 100 ms/kRPM.
Travel Limit Deceleration
The value you enter here defines the rate of velocity change to zero speed when a Travel Limit
input function is activated.
The units are ms/kRPM and the range is from 1.0 to 5000.0. Default is 100 ms/kRPM.
Analog Accel/Decel Limit
This parameter determines the maximum accel and decel rate that will be allowed when using
the Analog input in Analog Velocity mode. It does not affect the Stop decel or Travel limit
decel rates.
