User Defined Motors

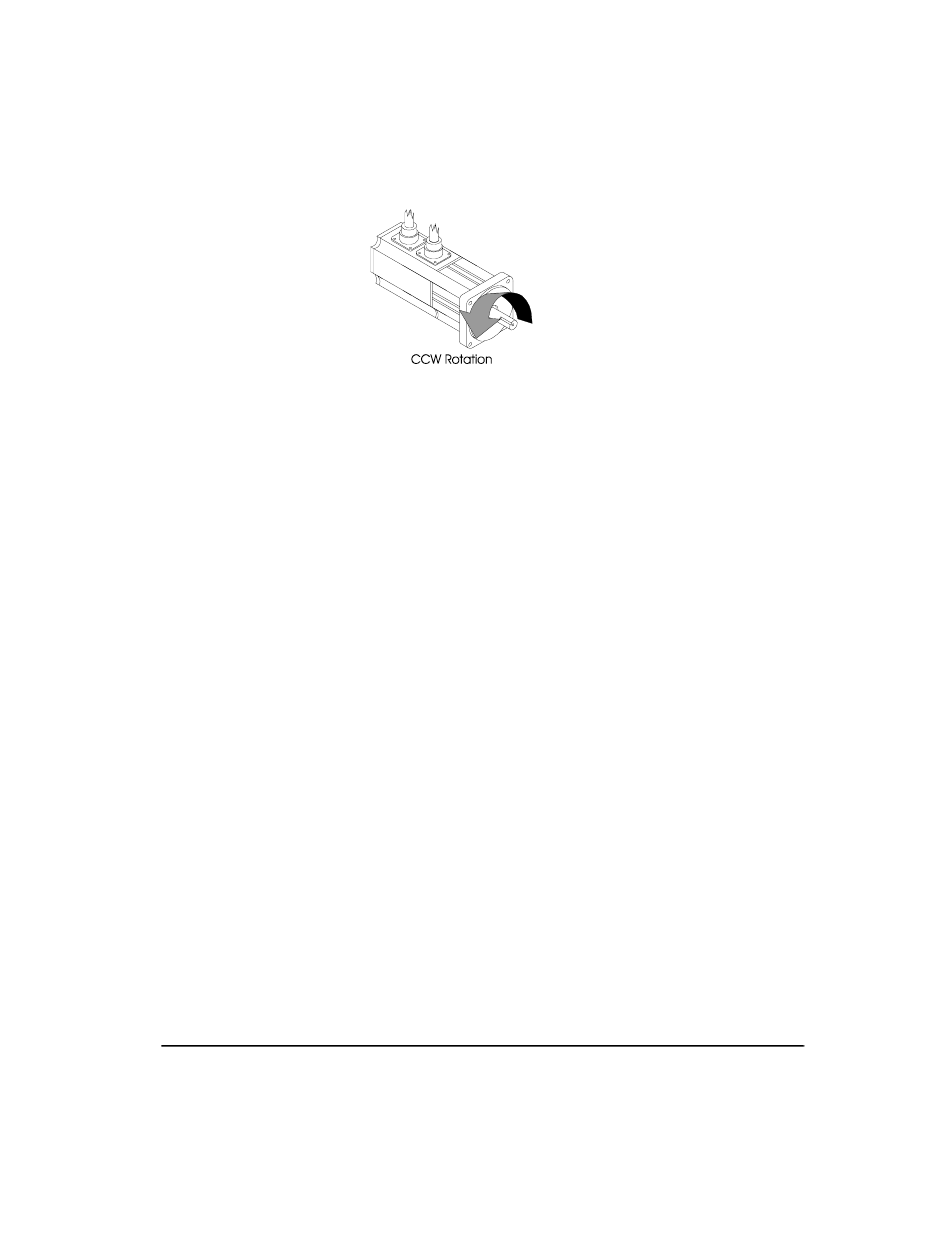

Figure 117:
CCW Rotation of the Motor
5.
Look at the phase-to-phase voltages VCA and VBA. There are two possibilities. If VCA
leads VBA, then assign B to S and C to T. If VBA leads VCA, then assign B to T and C
to S. These relationships are summarized in the figure below.
161
