Emerson Control Techniques Epsilon Eb Series Reference Manual page 116

Note
The motor ground wire and shields must be run all the way back to the amplifier terminal
and must not be connected to any other conductor, shield or ground.
Front View
R S T
Wire crimp ferrules are recommended:
If 14 to 16 AWG, use panduit #PV14-P47.
If 12 AWG, use Panduit #PV10-P55.
Important: Ground should connect to drive and
motor only. Nothing should be connected
between these devices.

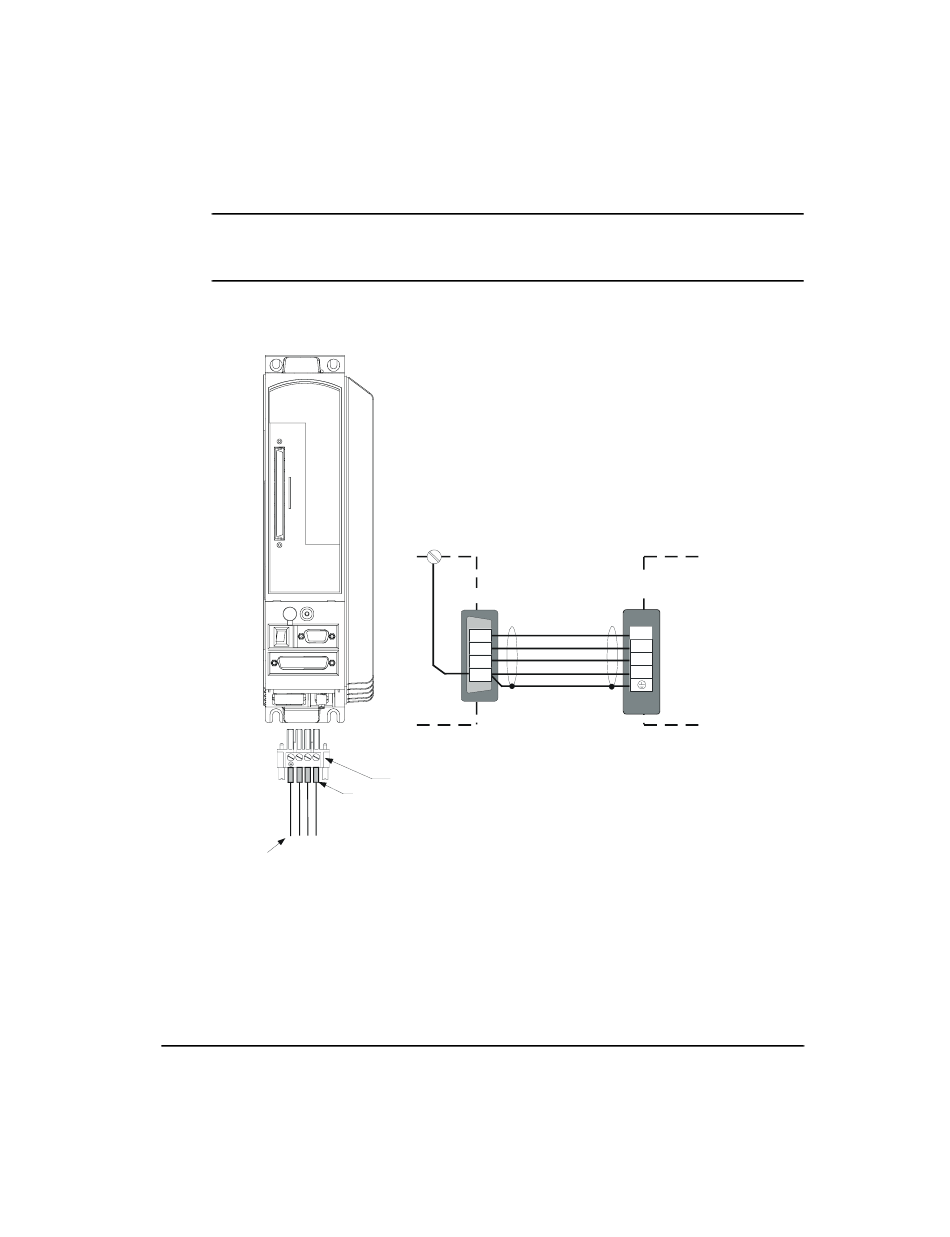

Figure 66: EN Motor Power Wiring Diagram
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
PE
Drive
Blue
T
Black
S
Brown
R
Green/Yellow
GND
Shield
Tighten screws to 5 lb-in.
Installation
Motor Power
Connection
C T
B S
A R
D Ground
Connector Shell
2" or 3" Motors: PT06A-15-8SSR
4" Motors: MS3106A-20-15SSR
97
