Auxiliary Logic Power Usage ( EN Only)
)
Top View

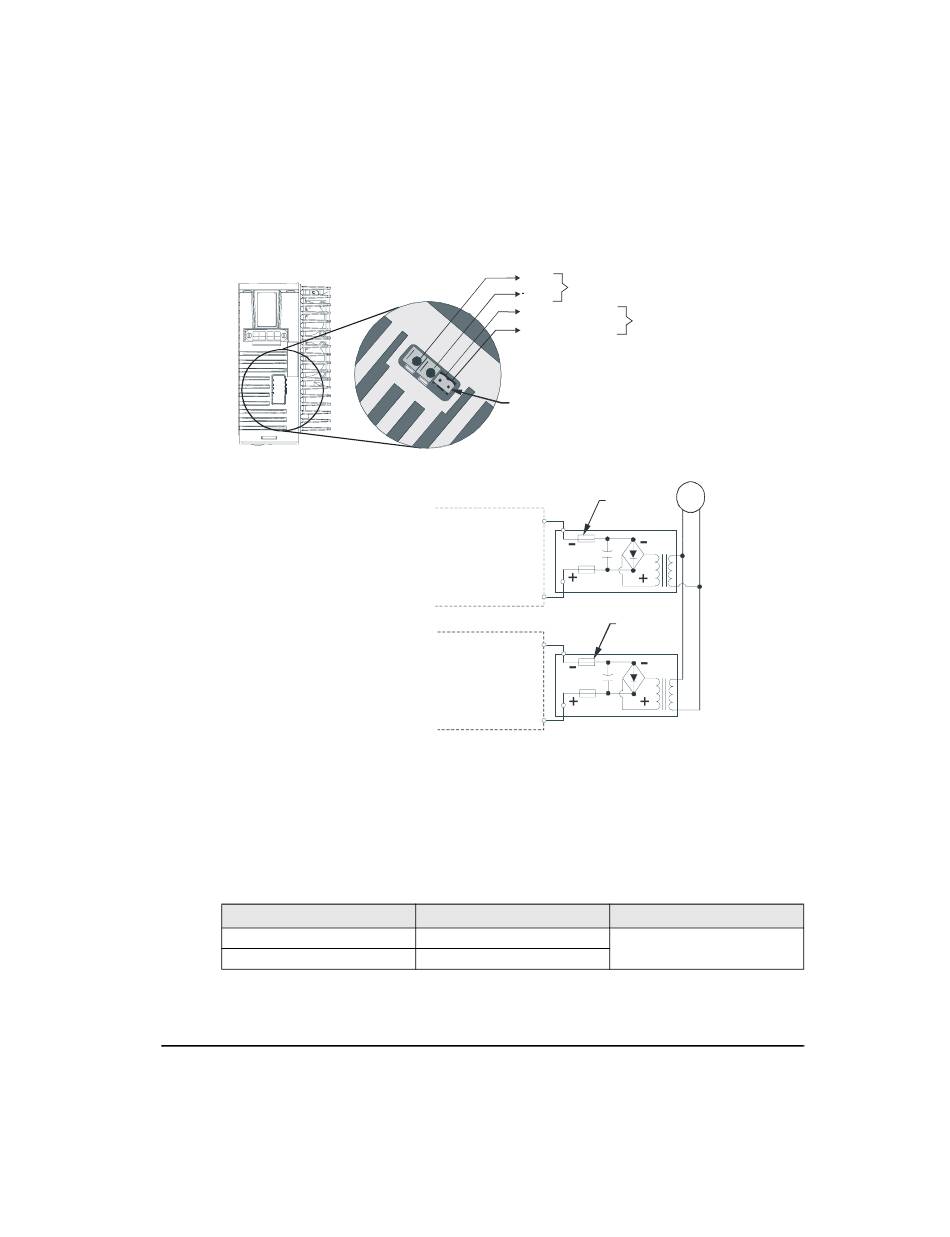

Figure 63: EN Auxiliary Power Supply Wiring Diagram
As shown in Figure 63, the auxiliary logic power connector is accessed through a plastic
punch-out tab located on top of the drive that reads "BUS/AUX". The auxiliary logic power
for each EN drive must be individually transformer isolated from the AC supply. The voltage
range is 127 to 373 VDC, at 21 Watts. This can be accomplished by isolating, rectifying and
filtering 90 to 264 VAC.
System
EN Drive Only
EN Drive with FM Module
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Use 16 to 18 AWG stranded wire
Bus
+
J2
Bus
-V
- Auxiliary Supply
+ Auxiliary Supply
J3 - Two position header.
The mating ALPC-006
cable is supplied
with the ALP Auxiliary
Power Supply.
Drive #1
-V Auxiliary
Supply
220µ
J3
F
+V Auxiliary
Supply
127 to 373
VDC
Drive #2
-V Auxiliary
Supply
220µ
J3
F
+V Auxiliary
Supply
127 to 373
VDC
Power
15 watts
21 watts
Installation
J3
0.5 Amp
AC
Fuses
0.5 Amp
Fuses
Voltage
127 to 373 VDC (Transformer isolated,
rectified and filtered 90 to 264 VAC)
