Analog Output Source options are:
• Velocity Command
• Velocity Feedback
• Torque Command (equates to Torque Command Actual parameter)
• Torque Feedback
• Following Error
Default Analog Output Source:
• Channel 1 = Velocity Feedback
• Channel 2 = Torque Command
Channel
1
2
E Series Drive

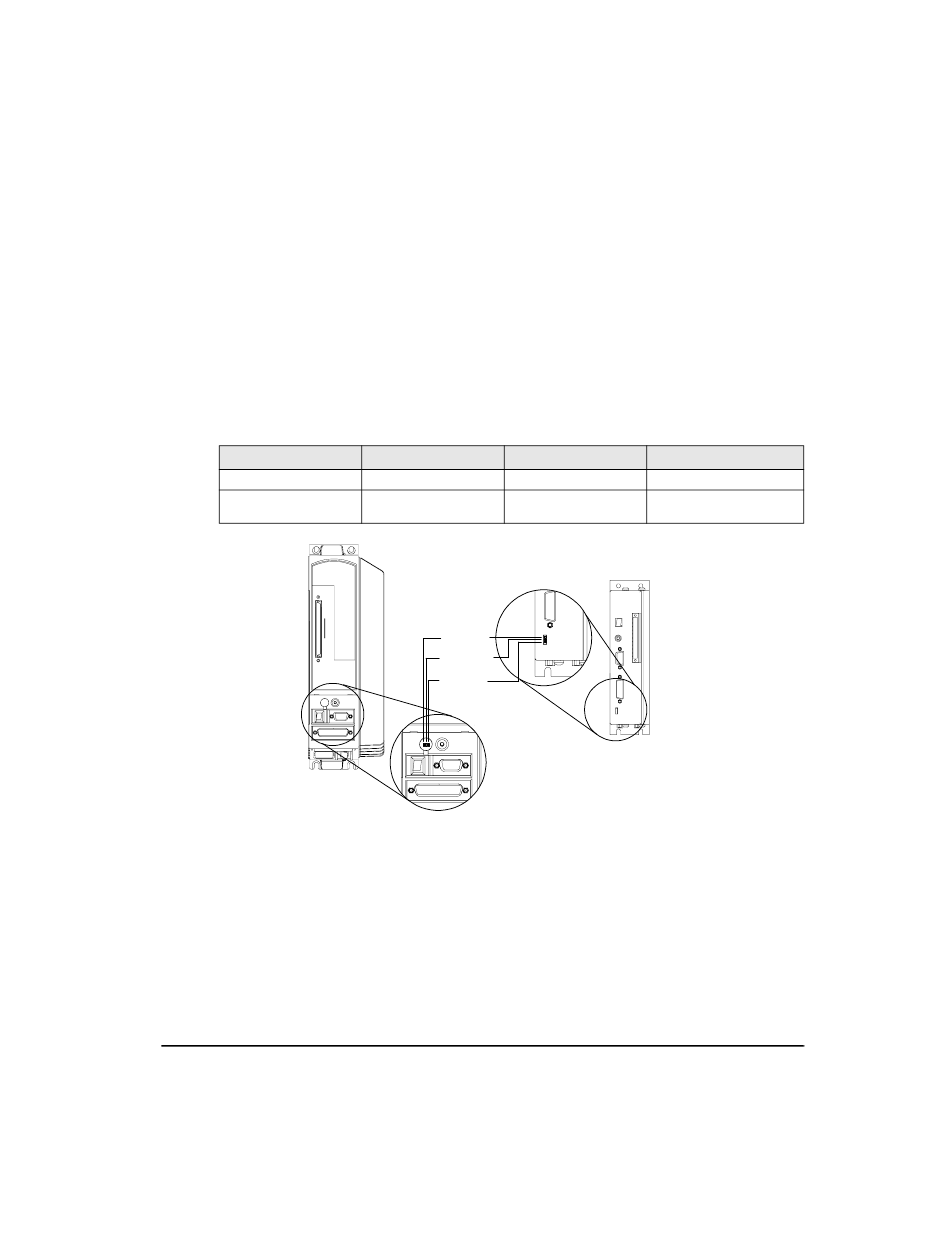

Figure 111: Diagnostic Analog Output Test Points
The DGNE cable was designed to be used with either an oscilloscope or a meter. The wires
are different lengths to avoid shorting to each other. However, if signals do get shorted to
GND, the drive will not be damaged because the circuitry is protected.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Output Source Offset
Velocity Feedback
Torque Command
Channel #2
Analog GND
Channel #1
Diagnostics and Troubleshooting
Scale
0 600 RPM/volt
30 percent/volt for selected
0
motor
Epsilon Drive
