Epsilon Eb and EN Drives Reference Manual

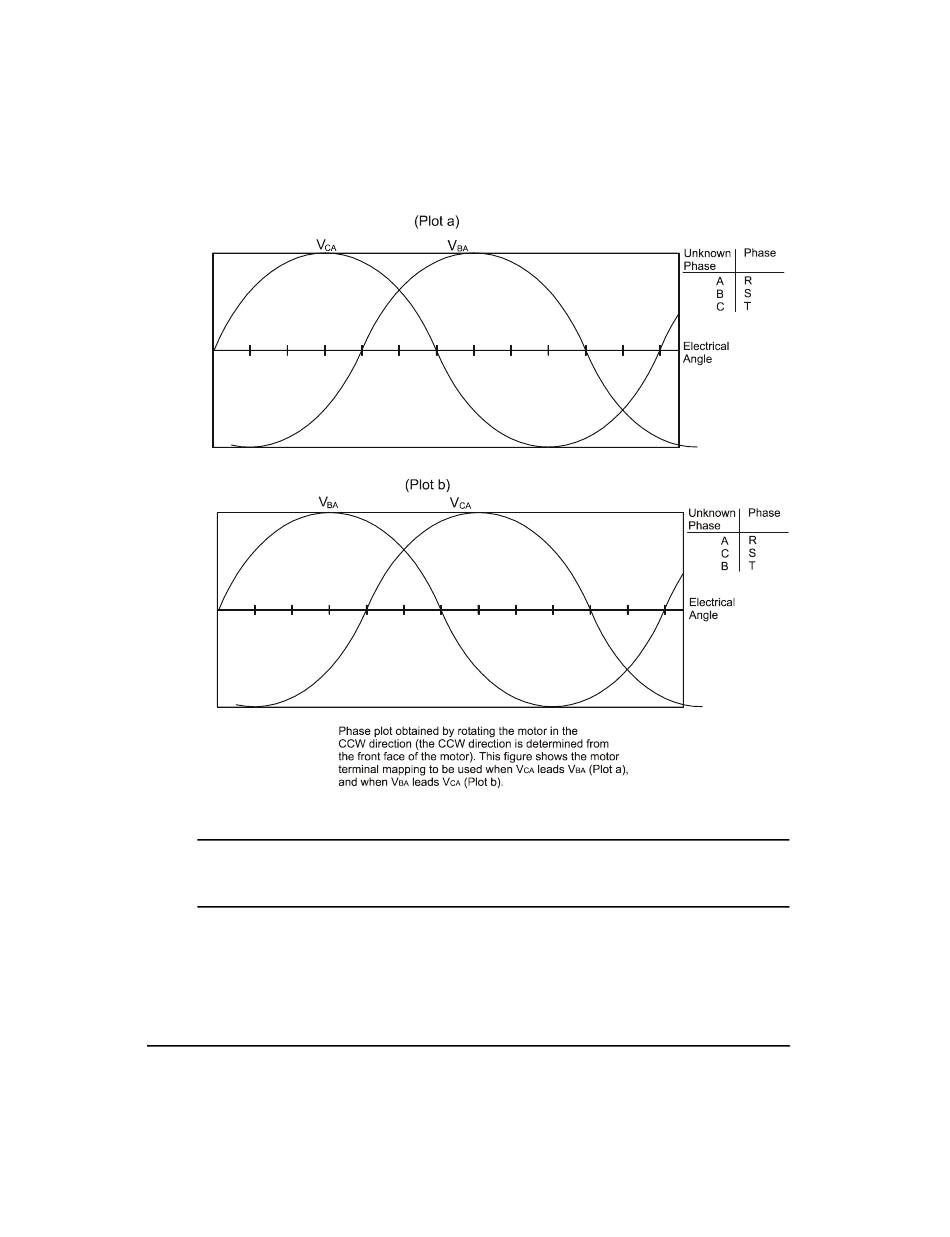

Figure 118: Phase Plot Used to Determining Stator Wiring
Note
For the remainder of this procedure we will refer to the motor terminals using the Control
Techniques designations R, S and T.
Step 2: Motor Feedback Wiring
This step describes how to wire the feedback signals to the drive. There are two parts to this
step: electrical interfacing and logical interfacing.
162
