Analog Command Wiring
Command Connector

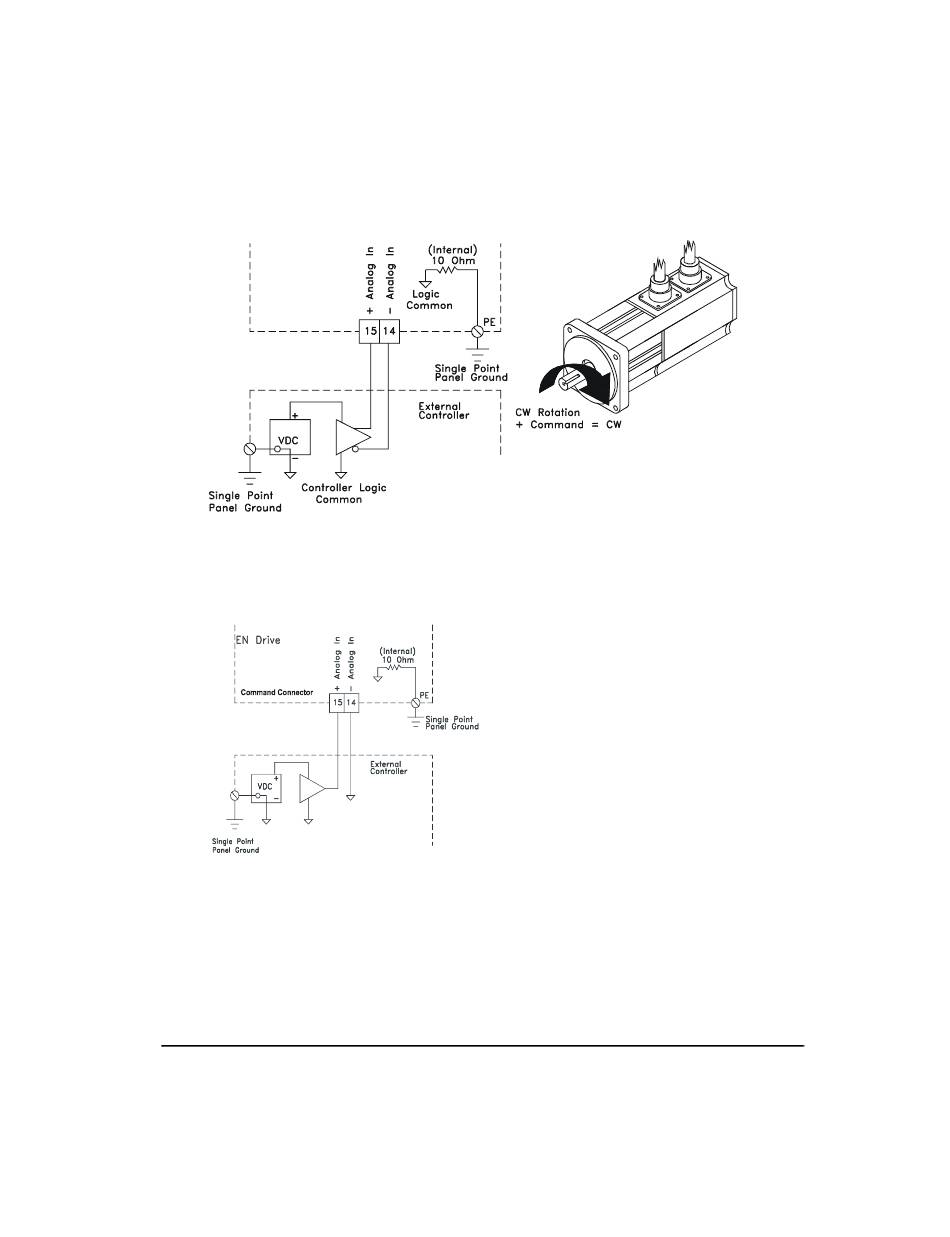

Figure 78:
Analog Command, Differential Wiring Diagram
Figure 79:
Analog Command, Single Ended Wiring Diagram
Encoder Output Signal Wiring
The encoder outputs meet RS-422 line driver specifications and can drive up to ten RS-422
signal receivers.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
With positive direction = CW
Installation
107
