Epsilon Eb and EN Drives Reference Manual
assignments in the software. PowerTools software is an easy-to-use Microsoft® Windows®
based setup and diagnostics tool.
Epsilon Eb Drive
Logic Power Supply
Selection Access Panel
Command Connection (J5)
Feedback Connection (J6)
E Series E

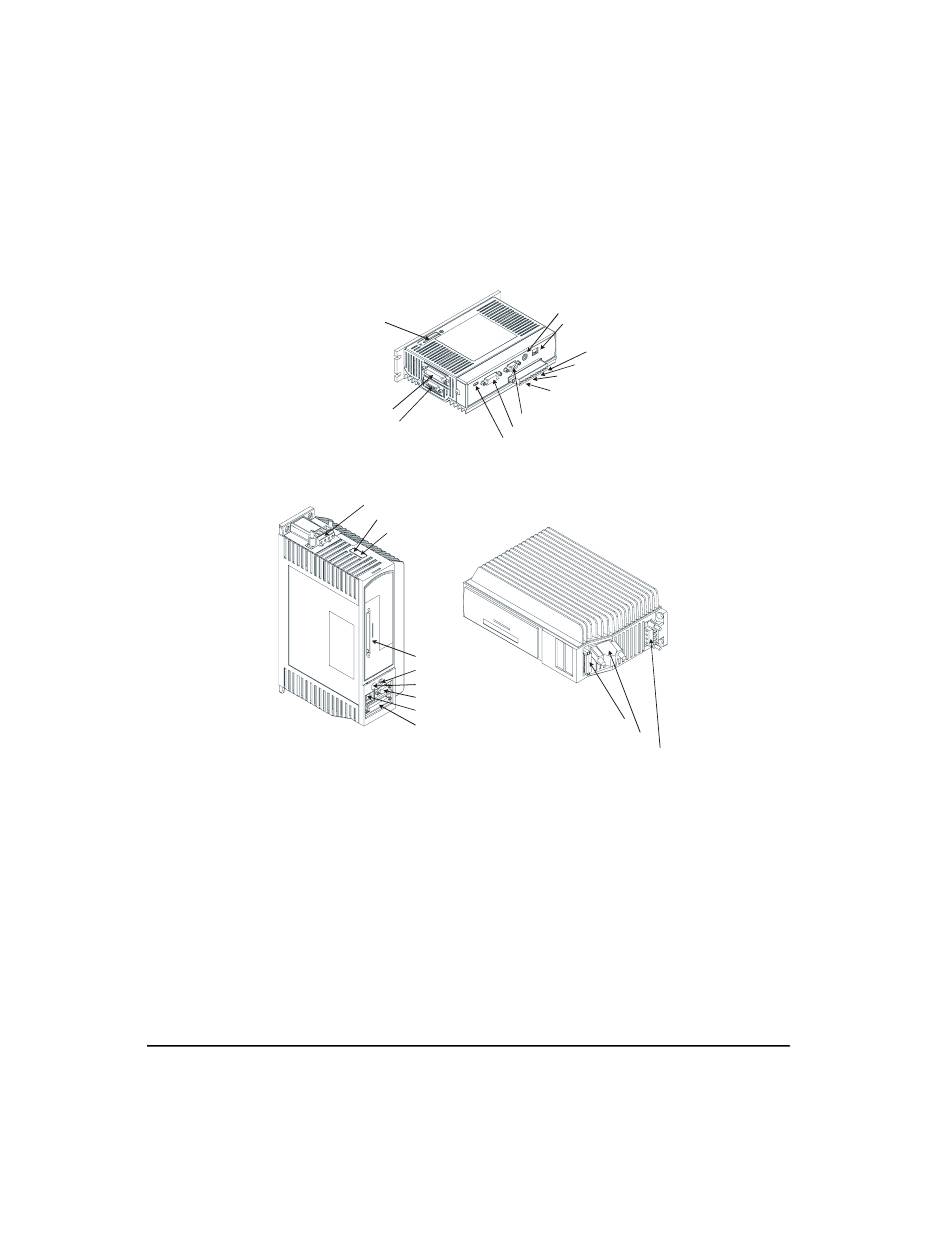

Figure 1: Epsilon Eb and EN Drives Feature Location
Epsilon and EN Drives are rated at 90 to 264 VAC input voltage. With an Alternate Power
Supply (APS) applied, the Epsilon Drive input range can be extended from 42 to 264 VAC.
2
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Input/Output Connection (J3)
Analog Output Test Points (J4)
Drive
N
AC Power Input (J1)
Bus Power Connection (J2)
Auxiliary Power Connection (J3)
Function Module Connection
Drive Reset Button
Analog Output Test Points
Serial Communications Connection (J4)
Status Display
Command Connection (J5)
Drive Reset Button
Status Display
AC Power Input (J1)
Bus Power Connection (J1)
Motor Power Connection (J1)
Alternate Logic Power
Supply Connection (J1)
Serial Communications Connection (J2)
Input/Output Terminals (J6)
Feedback Connection (J7)
Motor Power Connection (J8)
