Using Rack Card Tools

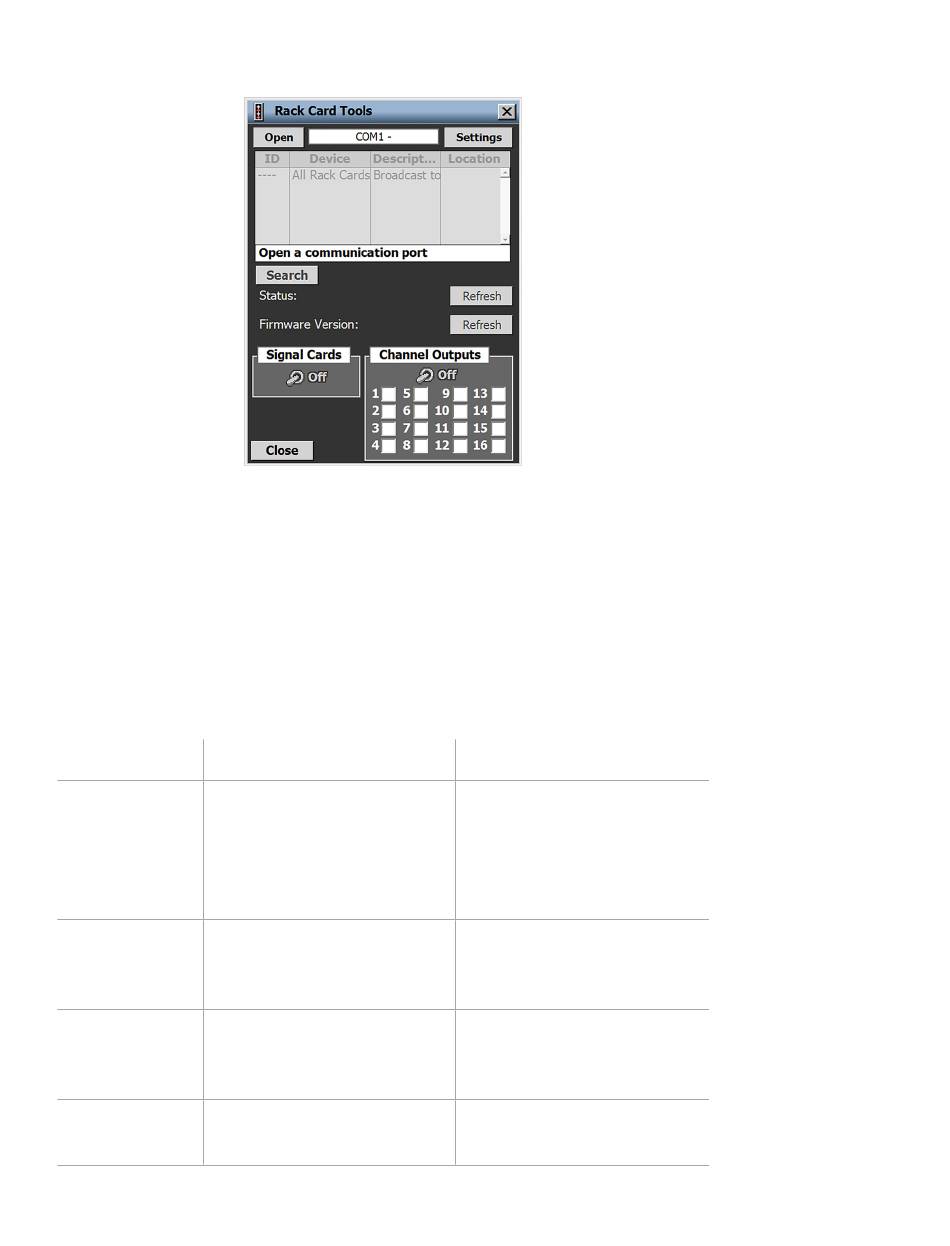

Figure 85. Rack Card Tools screen
Click Settings and choose a communication port and baud
1
rate.
Close the Serial Settings window.
2
Click Search.
3
Once a list of devices appears, click on the device you want to
4
test. Click All Rack Cards in the Device column if you want to
test all devices at the same time.
Setting Description
Settings Allows you to select
the type of connection,
communication port, and
baud rate, and to adjust
the timeout setting.
Open Opens the communication
port you selected on the
Serial Settings screen.
Search Searches for all available
cards on the shared RS-
485 T-bus.
ID Shows the rack card ID
number.
Details
N/A
N/A
N/A
N/A
Note. Rack Card
Tools allows you
to verify channel
mapping into the
traffic controller
without being
connected to
a sensor.
