Warning. We strongly
recommend you
follow the guidelines
in this chapter,
especially as they
relate to surge
protection. Failure to
properly protect your
sensors from surges
will void the sensor
warranty. If you need
more information,
contact support@
wavetronix.com.
SmartSensor Advance User Guide
24
•

Installing Cabinet Solutions

How you install power, surge protection and communication mod-
ules varies based on what equipment you are using.
Using the Click 650/656
Using this method, power, surge, and communication are provided
to a combination of four (Click 650) or six (Click 656) Matrix and
Advance sensors all in one device. If your cabinet supports SDLC,
you can connect the Click 65x straight to the controller; if your
cabinet doesn't support SDLC, you can connect the Click 65x to
contact closure cards.

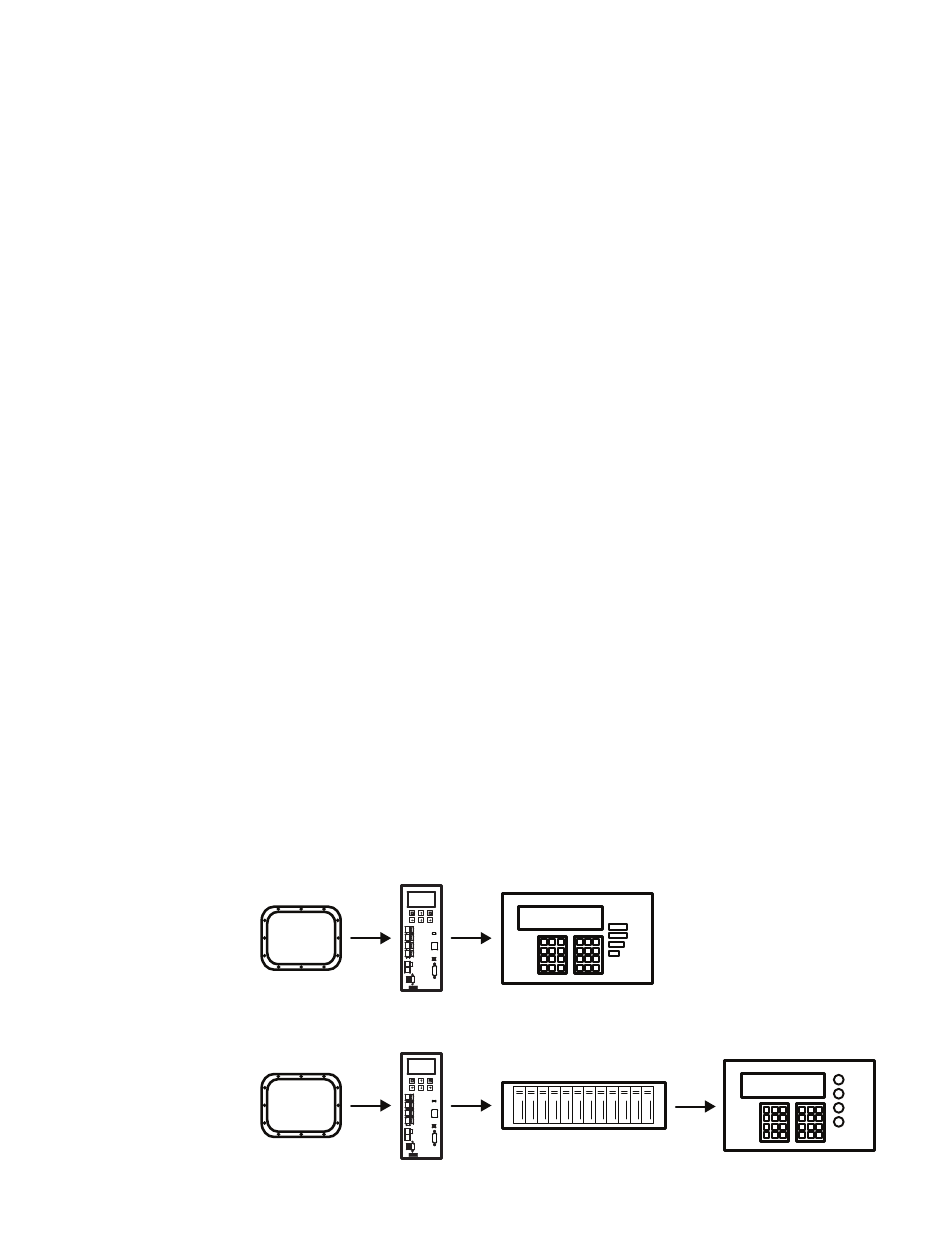

Figure 21. Click 650/656 using SDLC (above) and contact closures (below)
