Set up a way to record what's happening on the road, such as a
1
video camera or someone with a speed gun.
Click the left sidebar button on the Verify Channels-Alerts-
2
Zones screen, until the Tracker Logging section appears.
Choose where to store the log file by clicking the folder icon.
3
Add a filename and click OK.
4
To begin logging, click the switch icon. When you're done,
5
click it again to stop. Record the traffic that passes on the road
during the same interval.
To view the file, click the View Log: magnifying glass icon in
6
the sidebar. You can also navigate to the file on your computer:
C://ProgramFiles/Wavetronix/ SmartSensor Manager Advance
vX.X.X/bin. The file that was created will be a .txt document that
can be opened in Notepad.
Compare the logged data to what was detected on the road-
7
way. If they match, the sensor is set up properly.
If the detections don't match traffic
You may be able to improve accuracy by adjusting thresholds
(covered in Chaper 6), double-checking the alignment (covered in
Chapter 2), or changing the mounting locations. If all else fails, con-
tact your dealer or support@wavetronix.com.

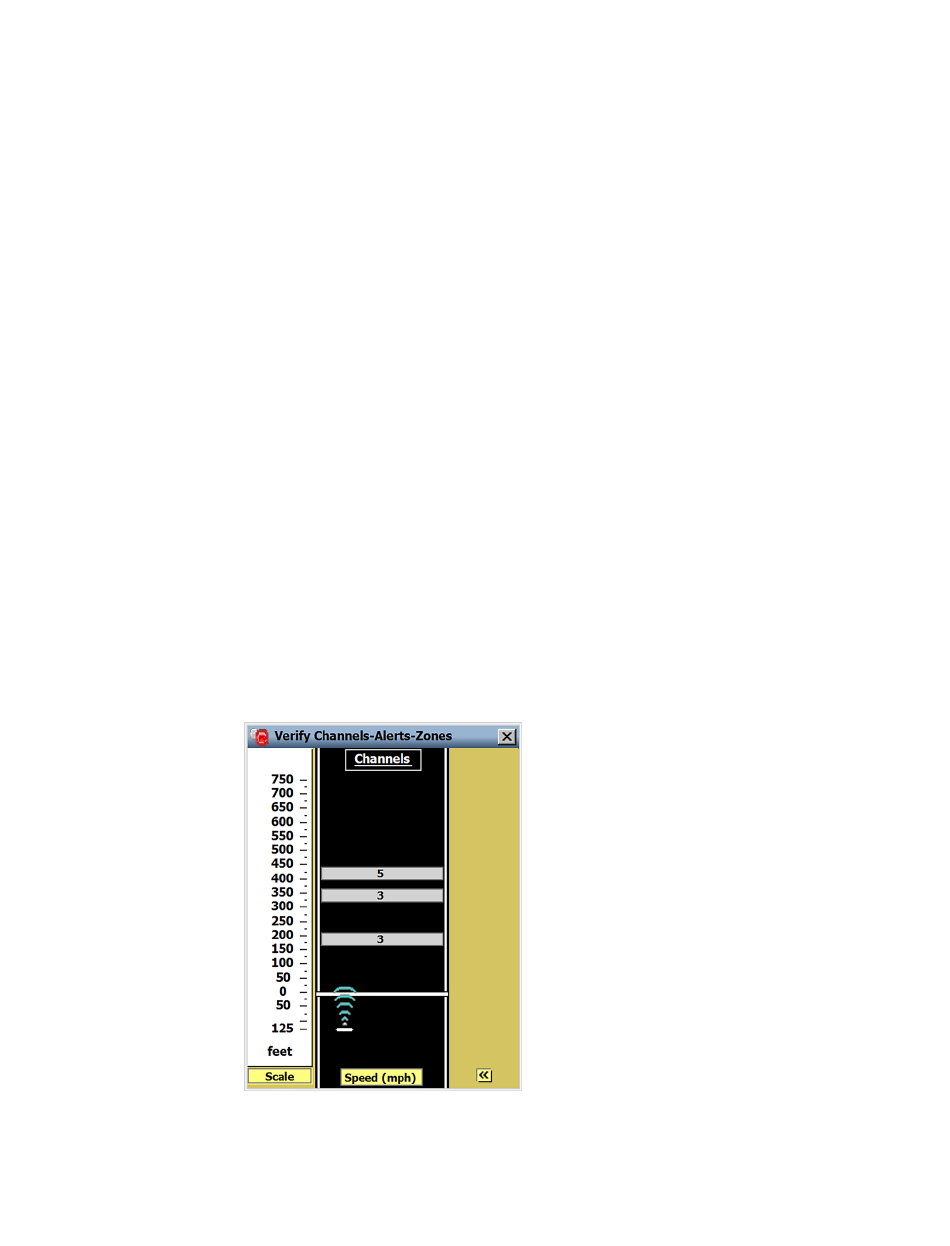

Using the scale view
Figure 70. Scale view
