Using the beam alignment tool
Click the Beam Alignment button in the Tools menu.
1
Verify that the settings you entered on the 1. Installation Details
2
screen are correct.
If the settings entered on the 1. Installation Details screen are
3
correct, the settings on the Alignment Tool screen will automati-
cally populate and can be used to visualize the radar footprint.
Setting Description
Roll The degree the sensor is
rotated on its center axis.
Clockwise = positive
Counterclockwise =
negative
Target X The sensor's offset from
the middle of the lanes of
interest.

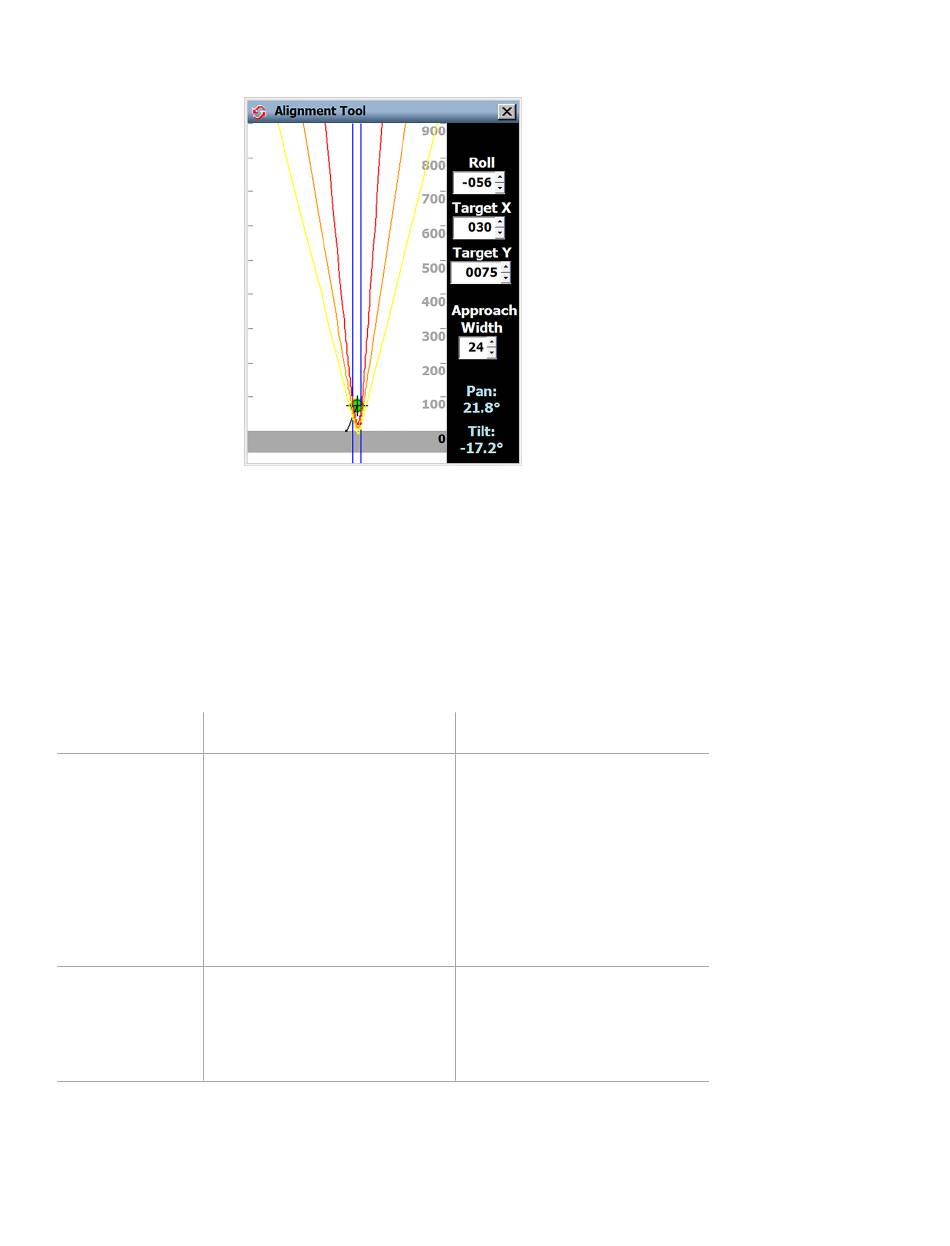

Figure 83. Beam Alignment tool
Details
Rotate the sensor on its
center axis to the degree
specified in the Roll field.
For example, if the Roll
field says "-70º," you
would roll the sensor
counterclockwise 70
degrees.
Aim the sensor towards
the approach by the
amount of feet specified
in the Target X field.
Note. The alignment
tool helps you
visualize the
radar footprint
and doesn't affect
sensor operation.
