Using A Preassembled Backplate - Wavetronix SmartSensor Advance User Manual

Note. This section
assumes you are
using the Intersection
Preassembled
Backplate from
Wavetronix; if you
bought individual
Click modules
instead, see Click
100–400 Series
User Guide and
Assembling the
Click Power Plant
in the knowledge
base on the
Wavetronix website.
Note. Additional
Click modules
can be added to
the backplate by
placing a T-bus to
the DIN rail and then
rocking the module
onto the T-bus.
SmartSensor Advance User Guide
26
•
Power the unit by using the switch in the back; power each con-
5
nected sensor by toggling the appropriate switches on the front
of the Click 600.
Connect jumper cables from the RJ-11 jacks on the front of the
6
Click 600 to your contact closure devices.

Using a preassembled backplate

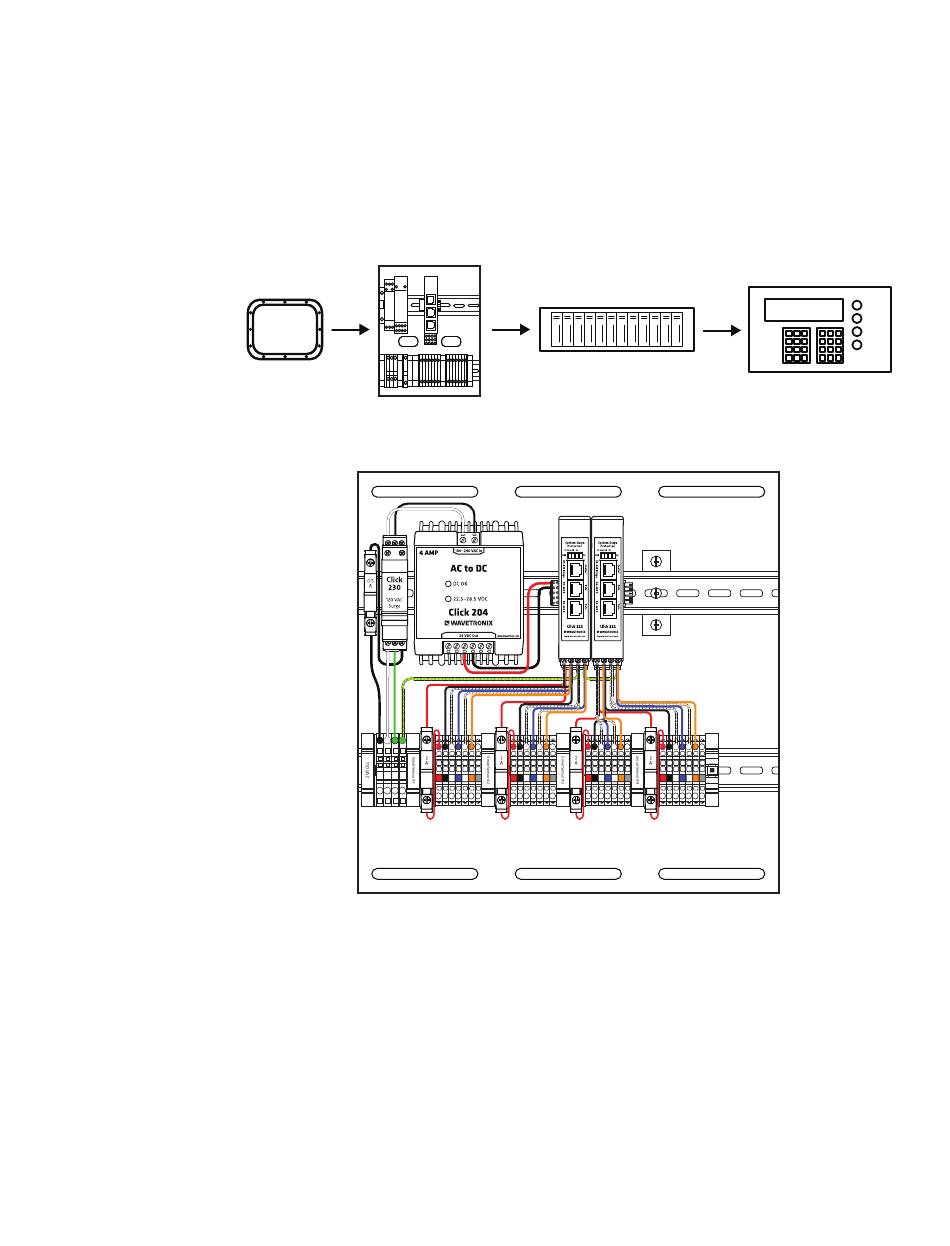

Figure 23. Installation with a preassembled backplate
L N G
Figure 24. Intersection Preassembled Backplate (for traffic cabinet)
If you haven't already, run the sensor cable back to the traffic
1
cabinet.
Use the included screws to mount the Intersection Preassem-
2
bled Backplate in the traffic cabinet.
PWR -DC 485+ 485- 485+ 485- DRN PWR -DC 485+ 485- 485+ 485- DRN PWR -DC 485+ 485- 485+ 485- DRN PWR -DC 485+ 485- 485+ 485- DRN
