Click the right sidebar button until the All option appears. This
1
option shows all eight channel outputs at the same time. Chan-
nel LEDs will turn red when the output is triggered.
Watch the LEDs and make sure they function the way that you
2
expected.
For additional verification, click a channel LED and trackers that
3
are triggering that channel output will turn light blue.
Additional information
The channel type appears next to the channel LED (S = Simple,
˿
N = Normal, L = Latched, P = Priority, Pu = Pulse).
Verifying individual channels

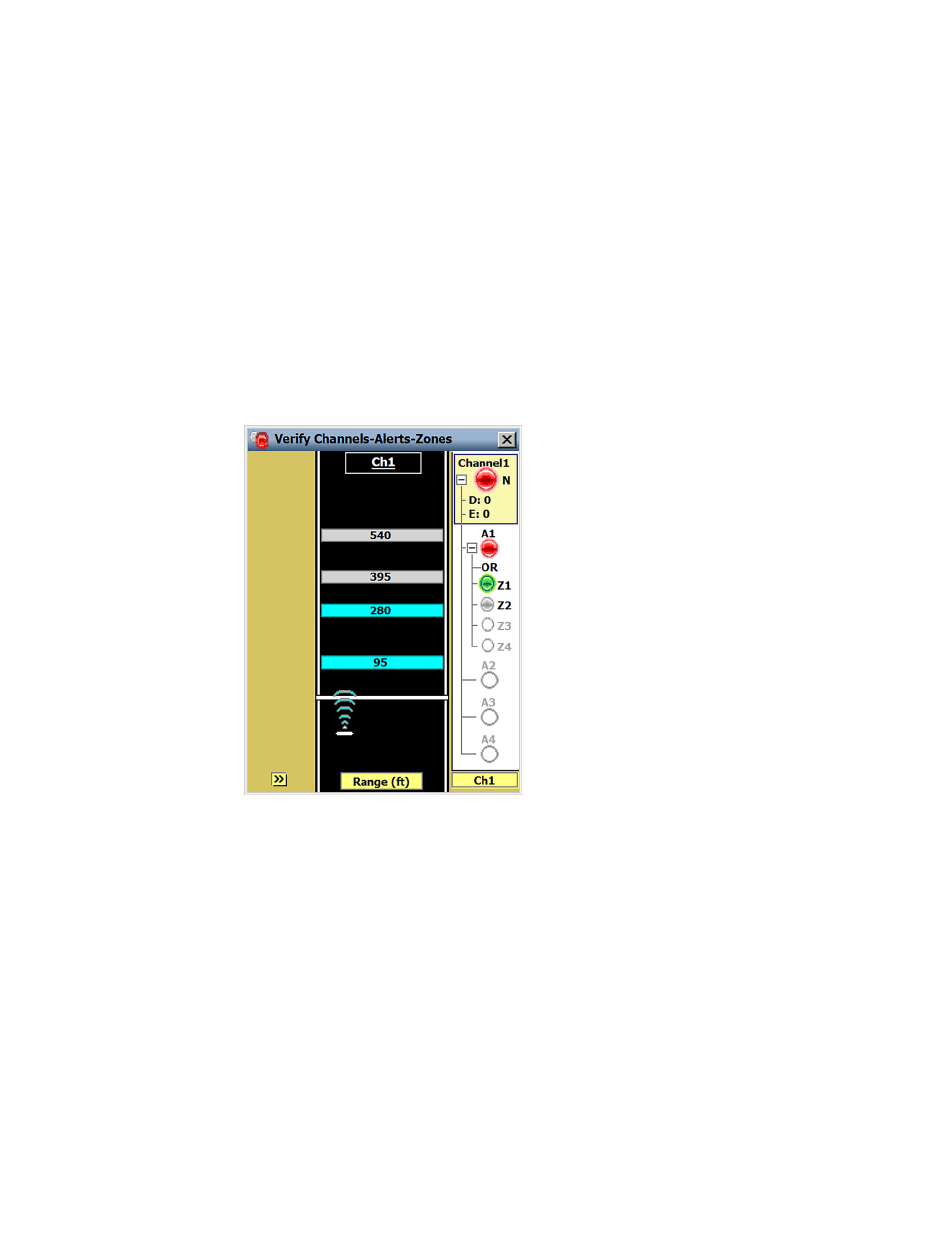

Figure 73. Verifying individual channels
Click the right sidebar button until the channel option appears.
1
The channel LED will turn red when the output is triggered.
Click the + signs to expand the list of channels, alerts and
2
zones. Channel, alert and zone LEDs will light up when
triggered.
Watch the LEDs and make sure they function the way that you
3
expected. See the table below for LED behavior.
For additional verification, click a zone LED to see that partic-
4
ular zone on the roadway and click inside a zone to see that
zone's name and measurements.
Chapter 8: Verifying Channels-Alerts-Zones
Tip. Click and
hold on a channel
LED to view a
summary of that
channel's settings.
Tip. Click and
hold on an LED to
view a summary of
channel, alert and
zone settings.
Note. Only channel
outputs are reported
to contact closure
devices. While they
appear in SSMA,
zone and alert
outputs are not
directly associated
with contact
closure outputs.
