Note. Before
attaching the mount
to the pole, make
sure your cables are
long enough to reach
the sensor height
and to stretch across
the distance from the
sensor to the cabinet;
see SmartSensor
Advance
Cable Length
Recommendations
in the knowledge
base on the
Wavetronix website.
For more information.
This process will be
different if you're
using the span wire
mount; see Using
the Span Wire Mount
with the SmartSensor
Advance in the
Wavetrronix
knowledge base.
SmartSensor Advance User Guide
16
•

Mounting the sensor

SmartSensor Advance

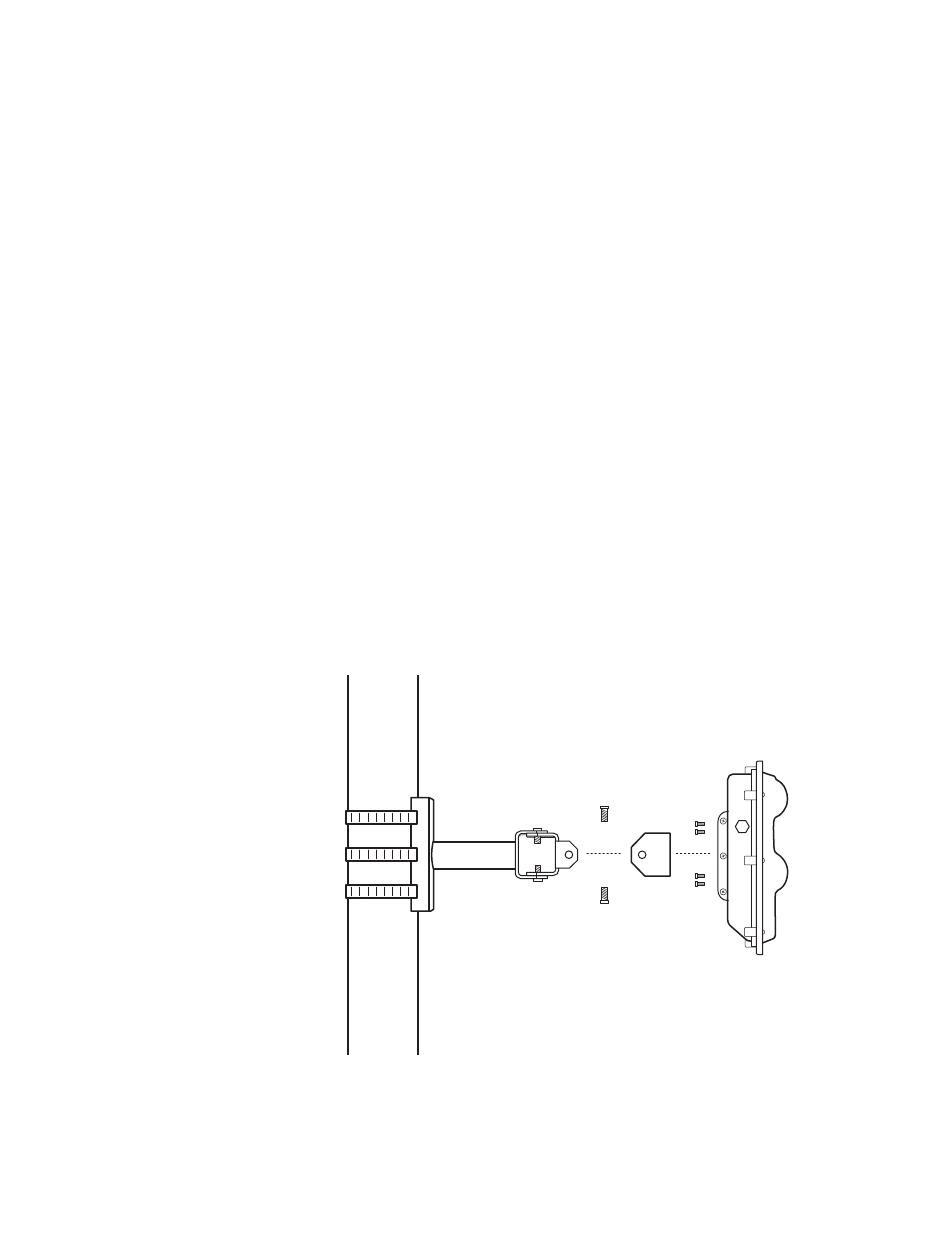

Figure 11. Attaching the mount
