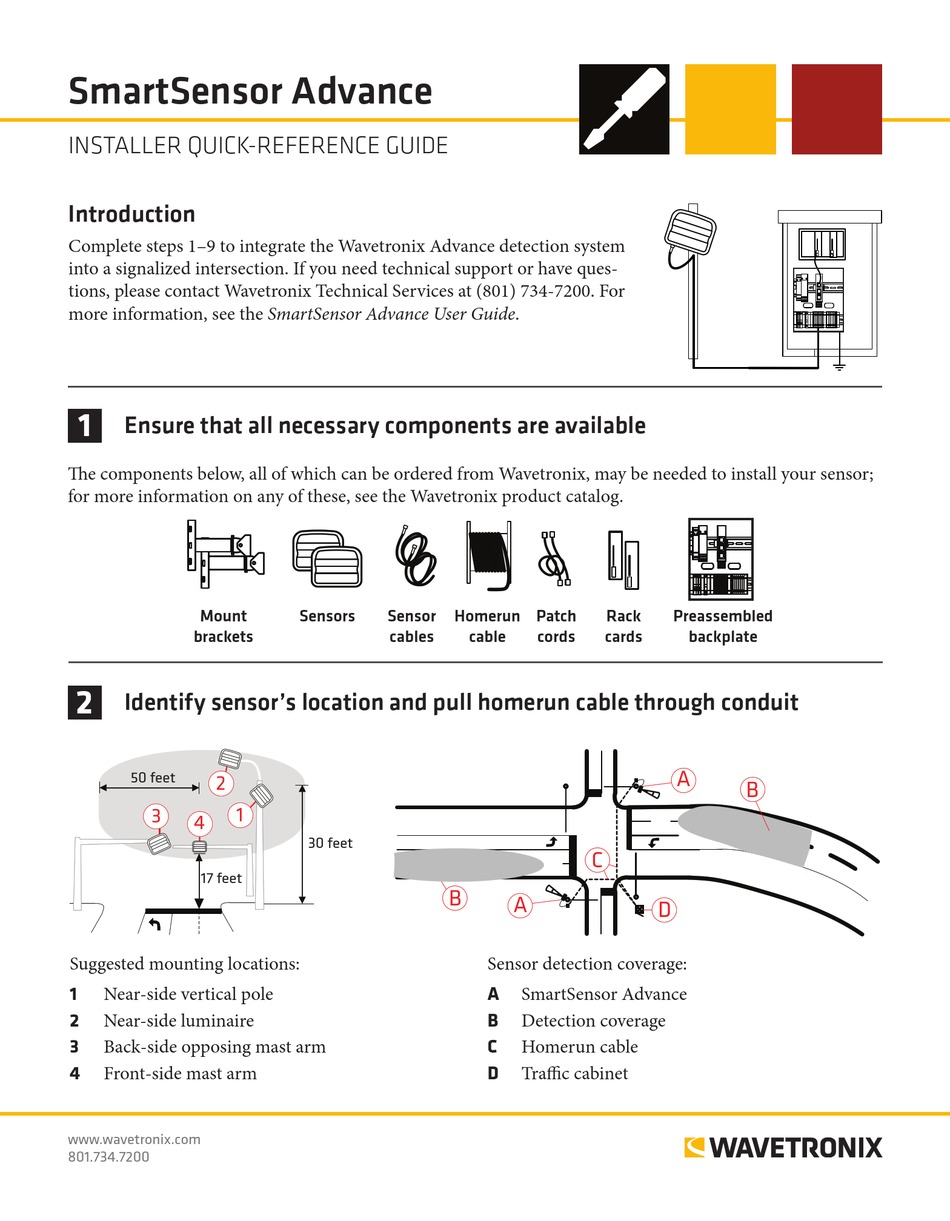

SmartSensor Advance
INSTALLER QUICK-REFERENCE GUIDE
Introduction
Complete steps 1–9 to integrate the Wavetronix Advance detection system
into a signalized intersection. If you need technical support or have ques-
tions, please contact Wavetronix Technical Services at (801) 734-7200. For
more information, see the SmartSensor Advance User Guide.
1

Ensure that all necessary components are available

The components below, all of which can be ordered from Wavetronix, may be needed to install your sensor;
for more information on any of these, see the Wavetronix product catalog.
Sensor
Mount
Mounts
brackets
2
Identify sensor's location and pull homerun cable through conduit
50 feet
2
1
3
4
17 feet
Suggested mounting locations:
1
Near-side vertical pole
2
Near-side luminaire
3
Back-side opposing mast arm
4
Front-side mast arm
www.wavetronix.com
801.734.7200
Sensors
Sensor
Homerun
Sensors
Sensor
Homerun
Cables
cables
cable
30 feet
B
Patch
Rack Cards
Patch
Rack
Cable
Cords
cords
cards
C
A
D
Sensor detection coverage:
A
SmartSensor Advance
B
Detection coverage
C
Homerun cable
D
Traffic cabinet
Preassembled
Preassembled
Backplate
backplate
A
B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartSensor Advance and is the answer not in the manual?

Questions and answers

Related Manuals for Wavetronix SmartSensor Advance

Summary of Contents for Wavetronix SmartSensor Advance

  • Page 1 SmartSensor Advance User Guide. Ensure that all necessary components are available The components below, all of which can be ordered from Wavetronix, may be needed to install your sensor; for more information on any of these, see the Wavetronix product catalog.
  • Page 2 Select the mounting height, attach and point at target Determine the mounting height (between 17 and 40 feet is recommended; typical mounting height is about 25 feet). 2 Strap the mount to the pole with the Height (ft / m) mount’s main shaft pointed in the general 17 / 5.2 20 / 6.1...
  • Page 3 Align sensor to roadway Roll the sensor until the long, narrow bar is Align long, narrow bar with middle of lanes parallel with the center of the lanes of inter- of interest est on the roadway. Vehicle paths should be parallel to the long, narrow bar.
  • Page 4 8,665,113; and Cdn. Pat. Nos. 2,461,411; 2,434,756; 2,512,689; and Euro. Pat. Nos. 1435036; 1438702; 1611458. Other US and international patents pending. Wavetronix, SmartSensor, Click, Command and all associated logos are trademarks of Wavetronix LLC. All other product or brand names as they appear are trademarks or registered trademarks of their respective hold- ers.
