Wavetronix SmartSensor Advance User Manual page 73

Note. This tool
records traffic
detections and
saves it to a file.
You can then play
back the file using
a virtual connection
to fine-tune your
configuration.
SmartSensor Advance User Guide
72
•
Verifying using roadway display options
Set up a way to observe on-road traffic: seat yourself in a place
1
where you can observe both the road and the computer, or
have someone else observe traffic for you while you monitor
your computer.
Click and hold the roadway display button (at the bottom of the
2
roadway). The roadway display menu will appear.
Choose Range (ft), Speed (mph), ETA (s), ID, Qualified Count,
3
Discovery Range, Priority Level, or Tri-view to select which of
these will apear on top of the trackers (the trackers appear as
gray rectangles moving down the screen).
Compare the range, speed, etc., information on the trackers
4
with what is observed in the roadway. If they match, the sensor
is set up properly.
Now click the right sidebar button until the All channels view
5
appears and compare channel outputs in the software with
equipment in the traffic cabinet.
If the detections don't match traffic
You may be able to improve accuracy by adjusting thresholds
(covered in Chaper 6), double-checking the alignment (covered in
Chapter 2), or changing the mounting location. If all else fails, con-
tact your dealer or support@wavetronix.com.

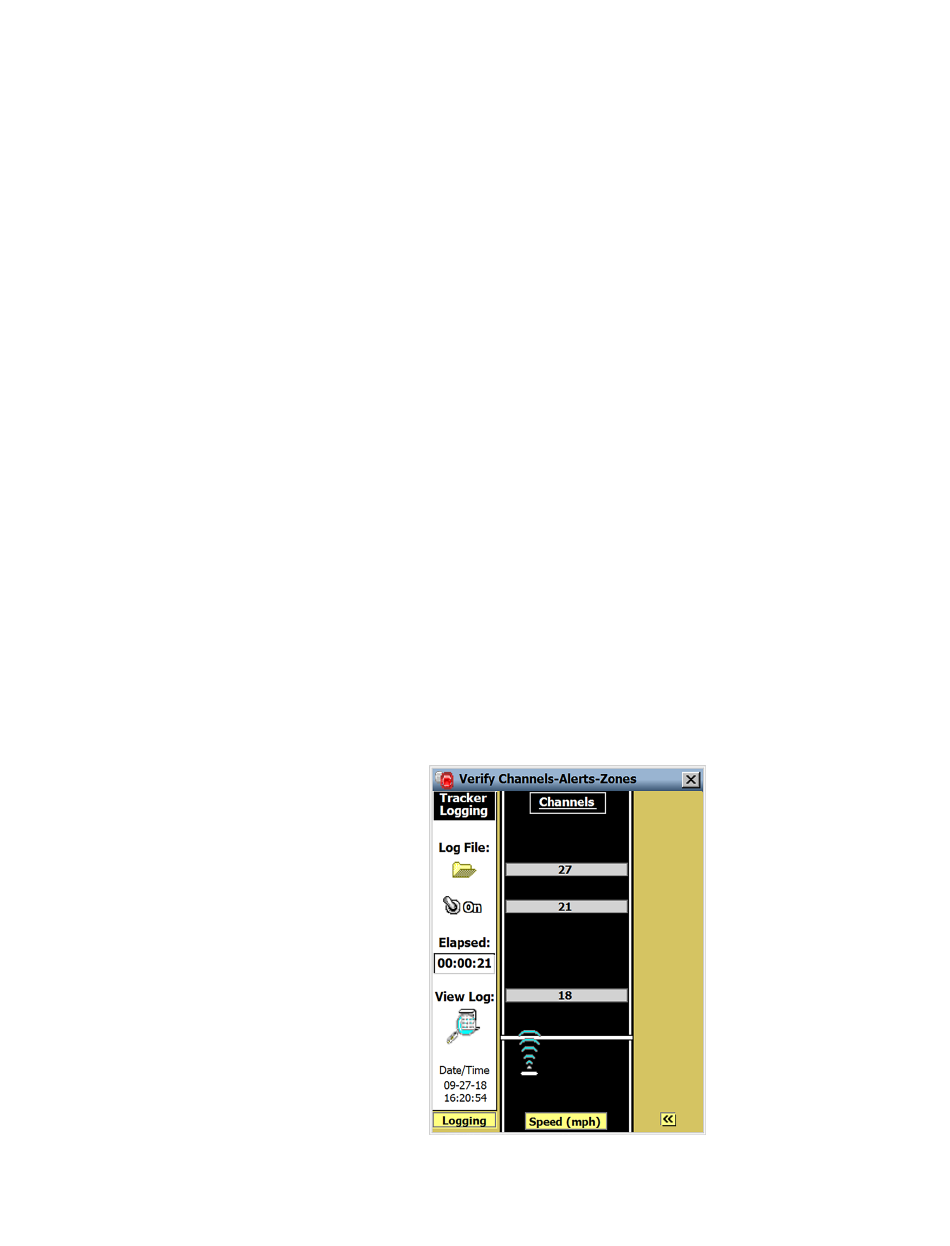

Verifying using tracker logging
Figure 69. Tracker logging
