Wavetronix SmartSensor Advance User Manual page 20

Using the viewfinder tool
Hold the bottom of the viewfinder to the back of the sensor.
1
Look directly through the crossbars to the roadway.
2
Tilt the sensor until the space between the crossbars is at the
3
level of the target.
Pan the sensor left or right until the target distance is centered
4
between the notches in the target crossbars.
Roll the sensor until the long, narrow bar is parallel with the
5
center of the lanes of interest.

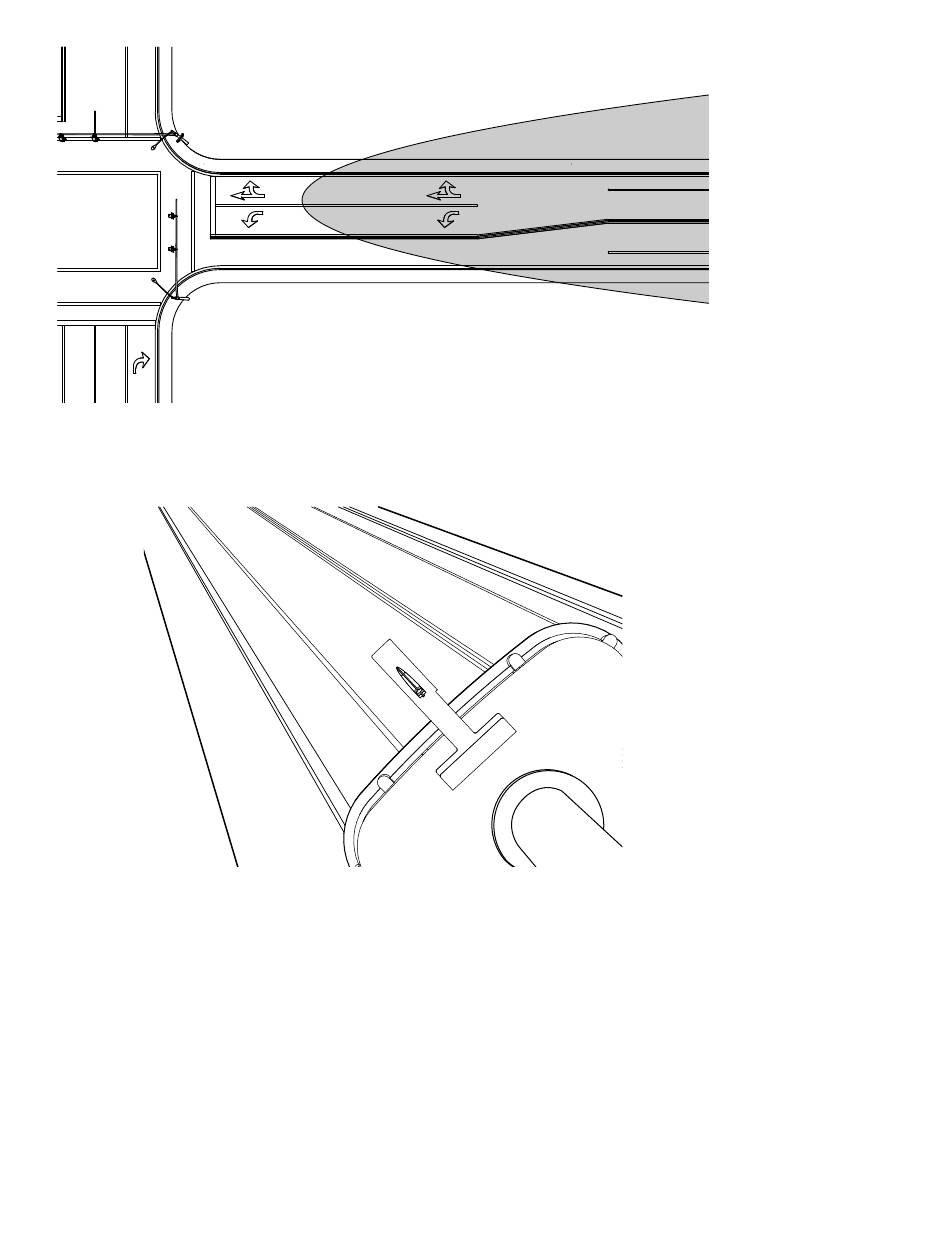

Figure 13. Detection area
Figure 14. Viewfinder tool
Chapter 2: Installing the SmartSensor Advance
Note. When installing
on a curved road, aim
the sensor so that
it bisects the road
and still detects the
nearest and farthest
ranges of interest.
Note. You will
complete the
alignment process
by connecting
to SmartSensor
Manager Advance
and verifying sensor
detections (see
chapters 5–7).
