SmartSensor Advance User Guide
38
•

Viewing connection information

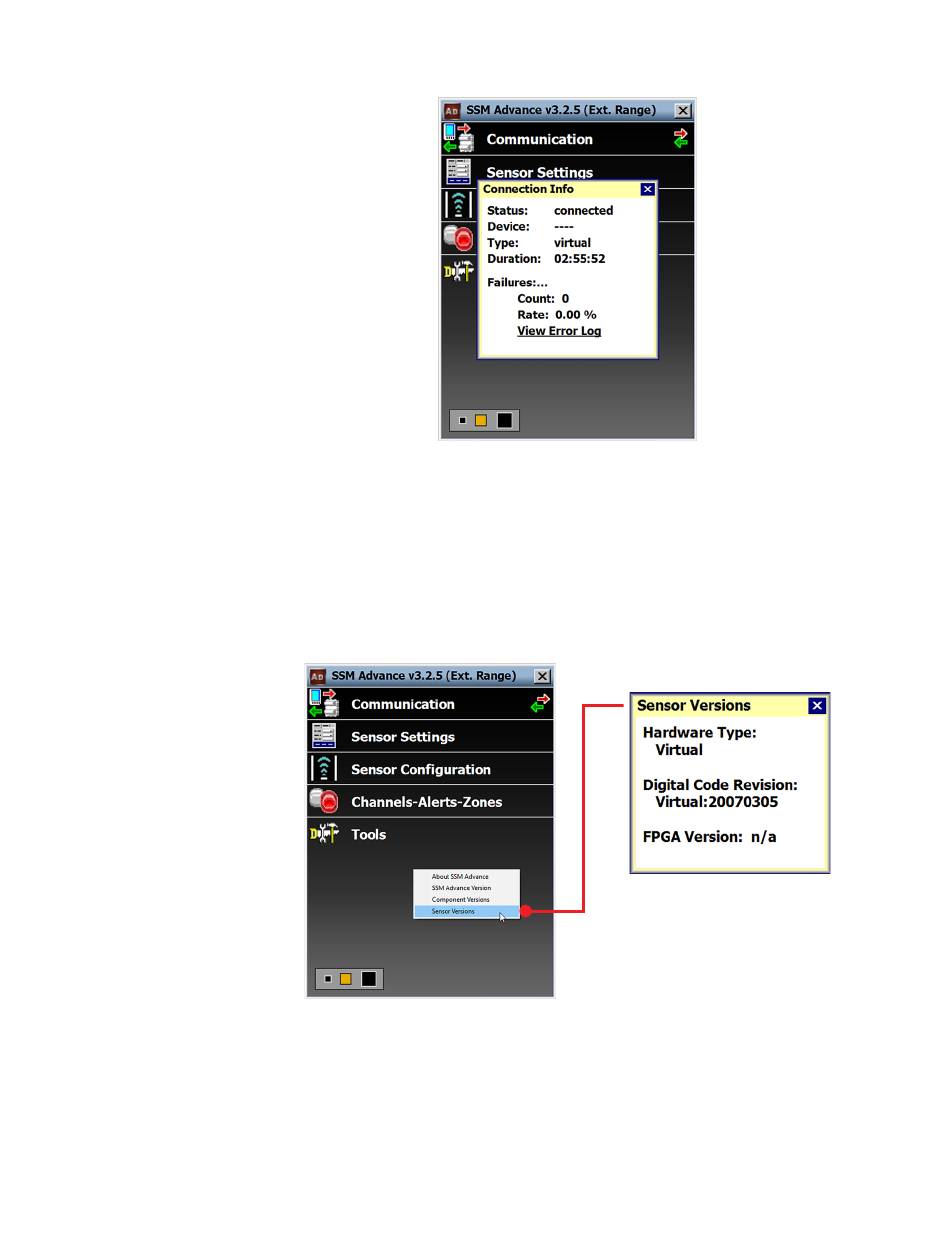

Figure 37. Connection Info window
Click the two arrows in the top-right corner of the main screen.
1
This will bring up the Connection Info window, with information
2
about the connection status, device, and duration.

Viewing sensor information

Figure 38. Sensor Versions window
Connect to a sensor.
1
Right-click anywhere in the software. This will bring up various
2
window options that contain information about the sensor and
the SmartSensor Manager Advance software. These settings
will be explained further in Chapter 6.
