Wavetronix SmartSensor Advance User Manual page 91

Note. The serial
terminal is used
to examine
serial data while
troubleshooting.
Consult Wavetronix
Technical Support
before using
this feature.
SmartSensor Advance User Guide
90
•
Target Y The target distance.
Represented by a light
green dot with crosshairs.
Approach The width of the
Width approach you are
detecting, represented by
blue vertical lines.
Pan The sensor's hoizontal
angle.
Right = positive
Left = negative
Tilt The sensor's vertical
angle, represented by a
negative angle because
the sensor should be
pointed down.
Communicating via a serial terminal
Click the Serial Terminal button in the Tools menu.
1
Click Settings and choose a communication port and baud rate.
2
Save the settings by closing the window.
3
Click Open to start a terminal session.
4

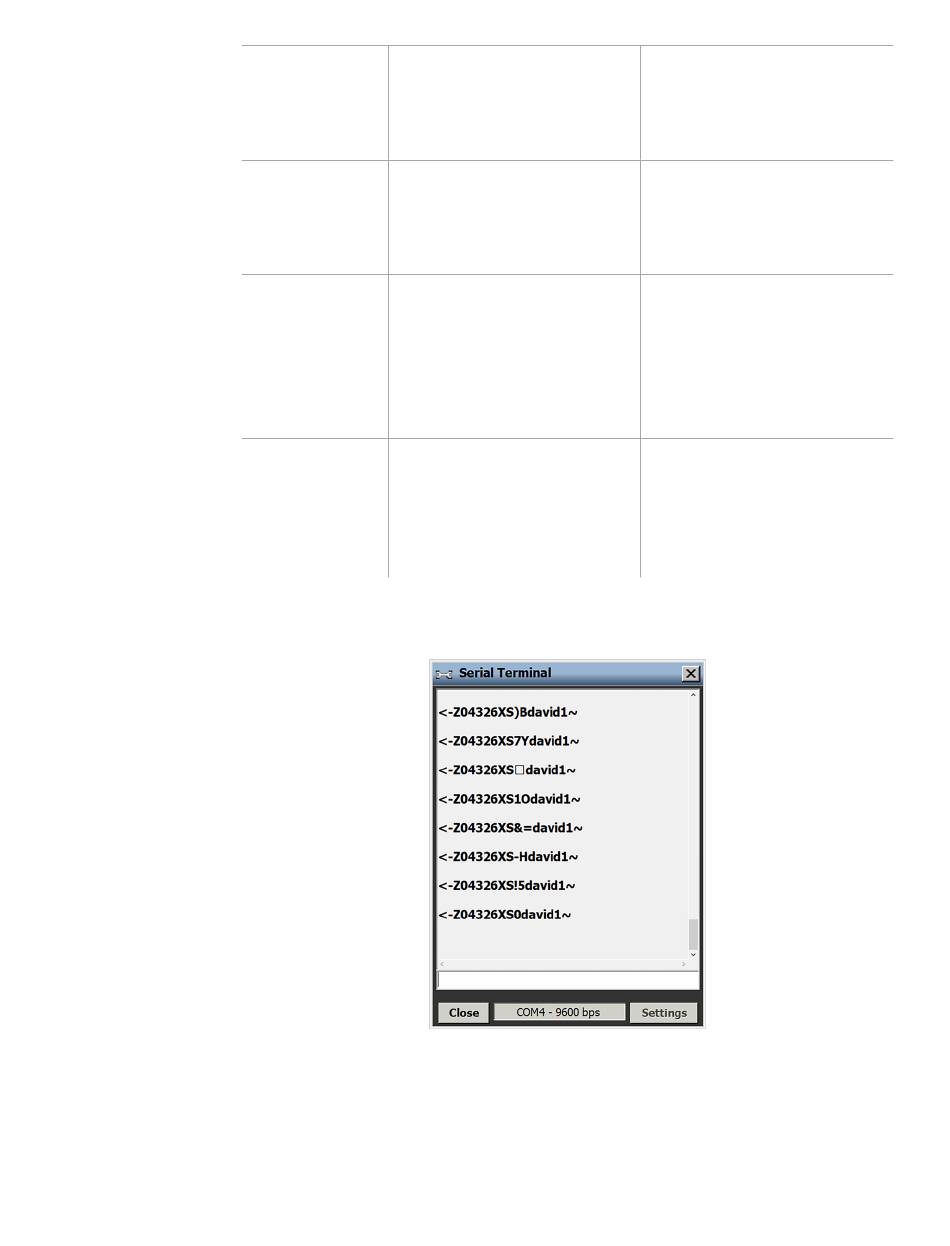

Figure 84. Serial Terminal screen
Aim the sensor up the
road by the amount of
feet specified in the
Target Y field.
Allows you to make the
virtual roadway match the
width of the approach.
For example, if under Pan
it says "18º," you would
pan the sensor right 18
degrees.
For example, if under Tilt
it says "-20º," you would
tilt the sensor down 20
degrees.
